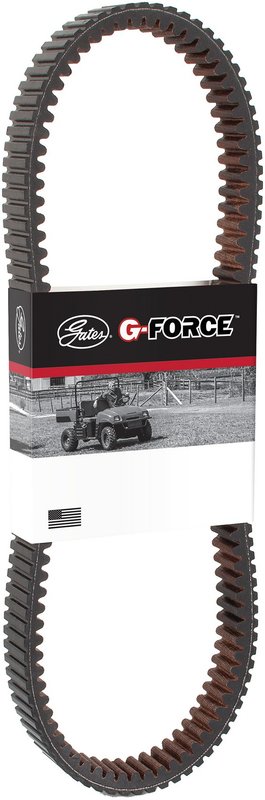

Gates 22G4246 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Overview of Gates G-Force CVT Belt 22G4246

The Gates G-Force CVT Belt 22G4246 is designed for automatic continuously variable transmissions, providing reliable power transfer and durability. Engineered with a double notched construction and aramid cord material, this belt supports consistent performance in power sport CVT applications.

• Top width: 1.226 inches (31 mm)
• Outside circumference: 43.63 inches (1108 mm)
• Double notched construction for enhanced flexibility
• Black chloroprene belt material for durability
• Aramid cord material for high tensile strength
• Fabric bottom and notched design for improved grip
• Cross section designation: Rvs-r
• Angle: 26 degrees

Gates G-Force CVT Belt Product Line Details

The G-Force CVT Belt line by Gates focuses on delivering reliable and consistent performance for power sport CVT systems. This product line emphasizes durable materials such as chloroprene and aramid cords, combined with a double notched design to optimize belt flexibility and grip. The 22G4246 part number is part of this line, engineered to meet OE performance standards for automatic transmission components.

Technical Description and Features

The Gates G-Force CVT Belt 22G4246 features a top width of 1.226 inches (31 mm) and an outside circumference of 43.63 inches (1108 mm), making it suitable for specific power sport CVT applications. Its double notched construction enhances flexibility and reduces heat buildup during operation. The belt is made from chloroprene, a material known for its resistance to wear and environmental factors, while the aramid cord material provides high tensile strength and durability. The fabric bottom and notched design improve grip and reduce slippage, ensuring smooth power transmission. The belt’s 26-degree angle and Rvs-r cross section designation align with industry standards for CVT belts.

Applications and Problem Solving

• Replacement for worn or damaged CVT belts in power sport vehicles
• Addresses slipping or loss of power transmission in automatic CVT systems
• Helps reduce belt overheating and premature wear
• Improves overall transmission efficiency and responsiveness
• Compatible with specific power sport CVT models requiring a 1.226 inch width and 43.63 inch circumference belt

Installation Notes and Tips

When installing the Gates G-Force CVT Belt 22G4246, ensure the belt is properly aligned with the pulleys to prevent premature wear. Verify the belt tension according to the vehicle manufacturer’s specifications. The double notched design requires careful handling to avoid damage during installation. It is recommended to inspect related transmission components for wear and replace as necessary to maintain optimal performance.

Quality Assurance and Warranty

The Gates G-Force CVT Belt 22G4246 meets OE performance standards, ensuring compatibility and reliability in automatic CVT systems. Manufactured with high-quality materials such as chloroprene and aramid cords, this belt is designed for durability and consistent operation. Warranty information should be confirmed with the distributor or manufacturer, as it may vary based on application and region.
