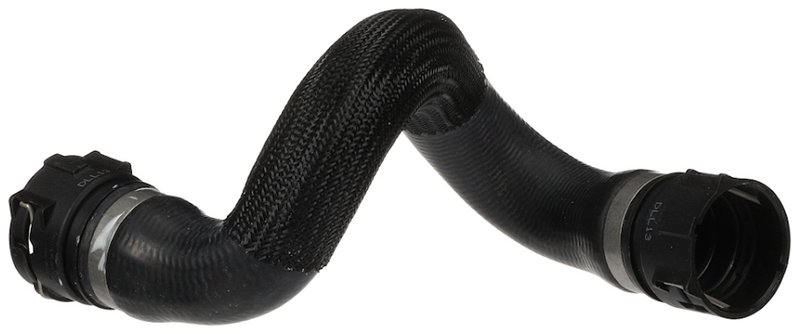

Gates 23893 Radiator Coolant Hose - Lower

BMW X5 Lower Coolant Hose Overview

The Gates 23893 molded coolant hose is built for the lower radiator circuit on select 2007-2010 BMW X5 models. It follows OE-style routing and integrates the connection points needed for a direct-fit cooling system repair.

Gates Molded Coolant Hose products are application-specific modular assemblies. This line is built around the original hose layout and includes integrated OE-style components such as quick-connect fittings and sensor ports where required by the vehicle.

Key Features

• Fits 2007-2010 BMW X5, lower
• Part number 23893
• Molded coolant hose construction for factory-style routing
• Material blend of EPDM, plastic, and steel
• Centerline length: 16.5 in. (419 mm)
• End 1 inside diameter: 1.53 in. (39 mm)
• End 2 inside diameter: 1.53 in. (39 mm)
• Includes 2 female quick connectors and a sensor port
• Modular hose design with 2 quick-connect fittings

Product Details

This Gates radiator coolant hose is engineered for the lower hose position on the BMW X5 and is shaped to match the vehicle’s cooling system layout. The molded design helps maintain proper hose routing, while the integrated quick-connect fittings and sensor port support the OE-style connection points used on the application. If you are replacing a leaking or damaged lower coolant hose on a 2007-2010 BMW X5, part number 23893 provides a direct replacement format for the original assembly.

This part cross-references Continental 67222 for the same application.

Common Problems This Hose Can Address

• Coolant leaks from a cracked or aged lower hose
• Softening, swelling, or collapse of the original hose
• Damaged quick-connect ends or connection points
• Improper hose routing after prior cooling system repair
• Sensor port issues tied to the original hose assembly

Installation Notes

Confirm the vehicle is a 2007-2010 BMW X5 with the lower hose application before installation. Inspect mating connectors, clamps, and nearby cooling system components for wear or contamination before fitting the new hose. Make sure the hose is seated fully at both female quick connectors and that the sensor port connection is transferred or secured according to the vehicle’s service procedure.

Quality Assurance

Gates manufactures this molded coolant hose as an OE-style modular assembly for specific applications, using materials and integrated components suited to the original cooling system design.
