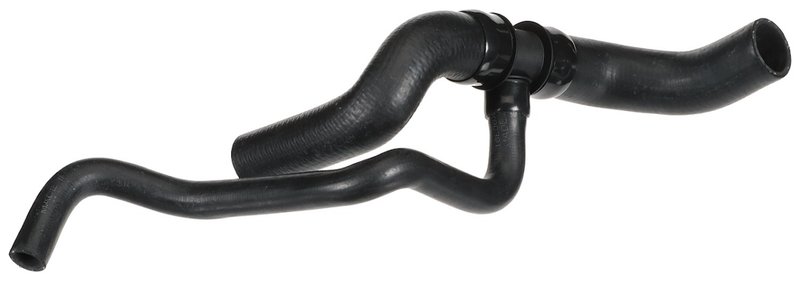

Gates 23948 Radiator Coolant Hose - Tee To Engine or Upper
| Brand | Gates 23948 |
|---|---|
| Position | Tee To Engine |
| 0 | |
| Yes | |
| Branch Quantity | 1 |
| Centerline Length | 15 |
| Centerline Length | 17.5 |
| Centerline Length | 445 |
| Contains Spring | No |
| End 1 Inside Diameter | 1.3 |
| End 1 Inside Diameter | 33 |
| End 2 Inside Diameter | 1.3 |
| End 2 Inside Diameter | 33 |
| End 3 Inside Diameter | .59 |
| Material | EPDM, Plastic |
| Modular Components | Branch |
| Modular Hose | Yes |
| Molded | Yes |
| Number of Quick Connect Fittings | 0 |
| Product line | Molded Coolant Hose |
| Fits | Chevrolet · 4 vehicles |
Molded coolant hose. Shaped for a precise fit and cleaner routing.
Modular hose design. Includes an integrated branch for a complete assembly.
EPDM and plastic. Built with materials suited for coolant service.
Cross-references BBB Industries 16612, Gates 23948 and 22742M for the same application. See all 9.
Gates Molded Coolant Hose for Camaro
The Gates 23948 molded coolant hose is built for specific cooling-system routing on select Chevrolet Camaro applications. It follows OEM-style geometry and integrates the branch-style modular design used in modern coolant assemblies.
Compatible with 2010-2011 Chevrolet Camaro upper coolant hose applications and 2012-2013 Chevrolet Camaro tee-to-engine routing, this molded hose supports a precise fit where straight universal hose cannot match the factory path.
Key Features
- Gates Molded Coolant Hose, part number 23948
- EPDM and plastic construction for coolant-system service
- Molded shape for factory-style routing and clearance
- Modular hose design with one branch configuration
- Built to match application-specific OE-style dimensions
- No spring and no quick-connect fittings
Product Details
Gates Molded Coolant Hose 23948 is part of the Gates Molded Coolant Hose line, which focuses on application-specific modular coolant assemblies. Gates builds this hose to follow the original routing used on the vehicle and to incorporate the branch-style layout required by the cooling system. The hose uses EPDM and plastic materials and measures 1.3 inches at both main ends, with a 0.59-inch branch opening and a molded centerline length of 17.5 inches (445 mm).
This part cross-references Four Seasons 16612 for the same application. For buyers searching Chevrolet Camaro upper radiator hose replacement or Camaro tee-to-engine molded coolant hose, Gates 23948 provides a direct match to the listed fitments.
Common Problems This Hose Can Address
- Cracked or leaking molded coolant hose
- Coolant loss at the upper hose or tee-to-engine routing
- Improper fit from a universal hose replacement
- Restricted coolant flow caused by damaged hose sections
- Factory hose deterioration from heat and age
Installation Notes
Verify the hose routing, position, and branch layout against the original part before installation. Confirm the vehicle is a 2010-2011 Chevrolet Camaro upper application or a 2012-2013 Chevrolet Camaro tee-to-engine application. Inspect adjoining clamps, fittings, and mating surfaces for wear or corrosion before transferring the hose into service.
Quality Assurance
Gates is a recognized automotive aftermarket supplier of modular coolant hose assemblies, and this part is manufactured to application-specific OE-style requirements for the listed Camaro fitments.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Chevrolet | Camaro | 6.2L | V8 | GAS | Tee To Engine | Molded Coolant Hose |
| 2012 | Chevrolet | Camaro | 6.2L | V8 | GAS | Tee To Engine | Molded Coolant Hose |
| 2011 | Chevrolet | Camaro | 6.2L | V8 | GAS | Upper | Molded Coolant Hose |
| 2010 | Chevrolet | Camaro | 6.2L | V8 | GAS | Upper | Molded Coolant Hose |
