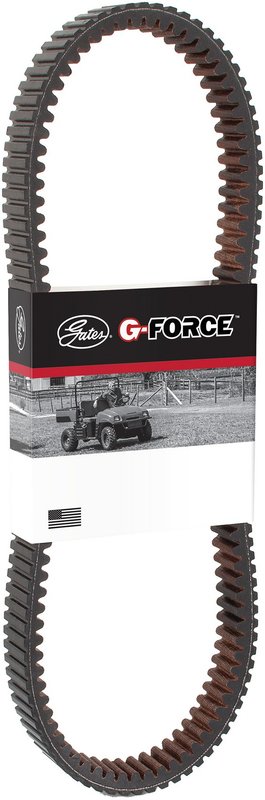

Gates 23G3805 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Overview of Gates G-Force CVT Belt 23G3805

The Gates G-Force CVT Belt 23G3805 is engineered for automatic continuously variable transmissions, designed to deliver reliable power transfer in powersport vehicles. This black, double-notched belt features advanced materials and construction to meet OE performance standards.

• Top width: 1.219 inches (31 mm)
• Outside circumference: 39.25 inches (997 mm)
• Double notched construction for enhanced flexibility
• Cord material: Aramid for high tensile strength
• Belt material: Durable chloroprene compound
• Fabric bottom for improved grip and wear resistance
• Cross section designation: Rvs-r
• Designed angle: 28 degrees
• Type: Power sport CVT belt suitable for automatic transmissions

G-Force CVT Belt Product Line Details

The G-Force CVT Belt line by Gates focuses on delivering durable and high-performance belts specifically designed for powersport applications. This product line emphasizes materials like aramid cords and chloroprene rubber to provide strength, flexibility, and resistance to wear, ensuring consistent transmission performance under demanding conditions. The 23G3805 model exemplifies these qualities with its double-notched design and fabric bottom, tailored for reliable operation in automatic CVT systems.

Technical Description and Features

The Gates G-Force CVT Belt 23G3805 is constructed with a double-notched design that enhances flexibility and reduces heat buildup during operation. The aramid cord material offers superior tensile strength, which helps maintain belt integrity under high load conditions common in powersport vehicles. The chloroprene belt material provides resistance to oil, heat, and abrasion, extending the belt's service life. With a top width of 1.219 inches and an outside circumference of 39.25 inches, this belt fits specific CVT systems requiring the Rvs-r cross section designation. The fabric bottom improves grip on pulleys, reducing slippage and enhancing power transfer efficiency.

Applications and Problem Solving

• Replacement for worn or damaged CVT belts in powersport automatic transmissions
• Addresses belt slippage and loss of power transfer efficiency
• Helps prevent premature belt wear due to heat and abrasion
• Suitable for vehicles requiring a 1.219 inch top width and 39.25 inch circumference belt
• Compatible with powersport models needing a double-notched, aramid cord CVT belt

Installation Notes and Tips

Ensure the CVT system is clean and free of debris before installing the Gates G-Force CVT Belt 23G3805. Verify the belt dimensions match the vehicle manufacturer’s specifications, particularly the top width and outside circumference. Proper tensioning is critical to avoid premature wear or slippage. Consult the vehicle’s service manual for torque and alignment specifications during installation.

Quality Assurance and Warranty

The Gates G-Force CVT Belt 23G3805 meets OE performance ratings, ensuring it adheres to strict quality and durability standards. Gates is known for rigorous testing and material selection to provide reliable transmission components. Warranty details should be confirmed with the product documentation or supplier, as they may vary by application and region.
