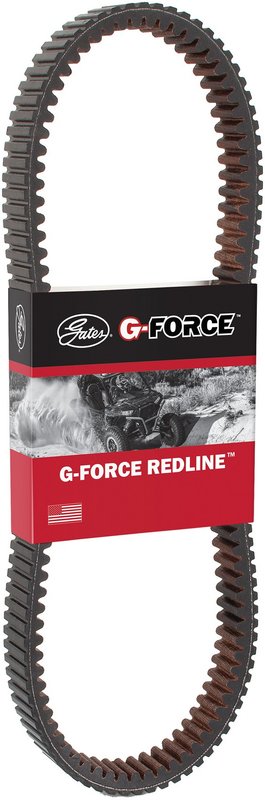

Gates 23R3836 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt
| Brand | Gates 23R3836 |
|---|---|
| Position | Drive Belt |
| Top Width | 1.219 |
| Top Width | 31 |
| Construction | Double notched |
| Color | Black |
| Thickness | .567 |
| Thickness | 14.4 |
| Cord Material | Aramid |
| Cross Section Designation | Rvs-r |
| Outside Circumference | 1003 |
| Outside Circumference | 39.5 |
| Type | Power sport specialty high performance cvt belt |
| Belt Material | Epdm |
| Angle | 28 |
| 9829 | 1.15 |
| 9829 | 29.2 |
| 9830 | 38.362 |
| 9830 | 974 |
| 9837 | Yes |
| Angle | 28 |
| Belt Material | Epdm |
| Color | Black |
| Construction | Double notched |
| Cord Material | Aramid |
| Fabric Bottom | Yes |
| Notched | Yes |
| OE Comparison Rating | Oe improved |
| Outside Circumference (in) | 39.5 |
| Outside Circumference (mm) | 1003 |
| Pitch Length (in) | 38.362 |
| Pitch Length (mm) | 974 |
| Fits | —52 vehicles |
OE-improved design. Built for stronger CVT performance and reduced energy loss under demanding use.
Aramid reinforcement. Adds tensile strength for high-stress transmission operation.
Double-notched construction. Helps the belt flex smoothly while maintaining consistent engagement.
Cross-references Dayco XTX2244, Gates 23C3836 and Gates 23G3836 for the same application. See all 9.
G-Force RedLine CVT Belt Overview
The Gates G-Force RedLine CVT Belt is a high-performance automatic continuously variable transmission belt built for demanding powersport use. Part number 23R3836 features a double-notched construction, aramid cord reinforcement, and an OE-improved comparison rating for consistent power transfer.
Key Features
- Power Sport Specialty High Performance CVT Belt for automatic CVT applications
- Double-notched construction helps maintain flexibility under load
- Aramid cord material adds strength for high-stress operation
- EPDM belt material and fabric bottom support durability
- RVS-R section with 28-degree angle and 39.5-inch outside circumference
Detailed Product Description
Gates G-Force RedLine CVT Belts are engineered as part of the G-Force RedLine product line for riders who need stronger belt performance in severe off-road conditions. This belt uses a black EPDM body, aramid reinforcement, and a notched design to reduce energy loss and improve belt response. The 23R3836 is built to deliver better acceleration and higher top speed potential while maintaining efficient speed ratio control in demanding CVT systems.
For buyers searching for a Gates CVT belt, a high-performance automatic transmission belt, or a 23R3836 replacement, this part is positioned for specialty powersport applications where belt consistency matters. The Gates 23R3836 and related G-Force RedLine belts are designed around performance-focused CVT operation rather than general-purpose use.
What This Part Helps Address
- Slipping or inconsistent belt engagement in a CVT system
- Reduced acceleration response under load
- Excessive speed ratio loss during hard use
- Premature belt wear in severe off-road conditions
Installation Notes and Tips
Verify the belt section, outside circumference, pitch width, and thickness against the original specification before installation. Confirm CVT compatibility by matching the part number 23R3836 and the required belt profile for the application. Inspect pulleys and related drive components during service to avoid premature belt wear.
Quality Assurance
Gates positions the G-Force RedLine line as an OE-improved CVT belt design, with materials and construction selected for demanding powersport transmission service.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2024 | Polaris | Sportsman 850 High Lifter Edition | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2023 | Polaris | Sportsman 850 High Lifter Edition | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2021 | Polaris | Sportsman 850 High Lifter Edition | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2020 | Polaris | Sportsman 850 High Lifter Edition | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2019 | Polaris | Sportsman 850 High Lifter Edition | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2018 | Polaris | Sportsman 850 High Lifter Edition | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2017 | Polaris | Sportsman 1000 XP High Lifter Edition | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2017 | Polaris | Sportsman 850 High Lifter Edition | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2013 | Polaris | Scrambler 850 XP HO | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2013 | Polaris | Scrambler 850 XP HO EPS LE | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2013 | Polaris | Sportsman 850 HO Touring EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2013 | Polaris | Sportsman 850 HO Touring EPS Sunset Red LE | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2013 | Polaris | Sportsman 850 HO XP | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2013 | Polaris | Sportsman 850 HO XP EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2013 | Polaris | Sportsman 850 HO XP EPS Browning LE | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2013 | Polaris | Sportsman 850 HO XP EPS Stealth Black LE | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2013 | Polaris | Sportsman Forest 850 | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 550 | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 550 EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 550 EPS Browning LE | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 550 EPS Orange Madness LE | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 550 Touring EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 550 X2 | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 850 HO Touring EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 850 HO Touring EPS Bronze Mist LE | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 850 HO XP | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 850 HO XP EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 850 HO XP EPS Browning LE | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman 850 HO XP EPS Orange Madness LE | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman Forest 550 | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2012 | Polaris | Sportsman Forest 850 | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2011 | Polaris | Sportsman 550 EFI | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2011 | Polaris | Sportsman 550 EFI Touring w/ EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2011 | Polaris | Sportsman 550 EFI w/ EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2011 | Polaris | Sportsman 550 EPS Browning LE | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2011 | Polaris | Sportsman 550 X2 | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2011 | Polaris | Sportsman 850 EFI Touring EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2011 | Polaris | Sportsman 850 EFI X2 | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2011 | Polaris | Sportsman 850 EFI XP | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2011 | Polaris | Sportsman 850 EFI XP w/ EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2011 | Polaris | Sportsman Forest 550 | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2010 | Polaris | Sportsman 550 EFI | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2010 | Polaris | Sportsman 550 EFI Touring w/ EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2010 | Polaris | Sportsman 550 EFI w/ EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2010 | Polaris | Sportsman 550 X2 | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2010 | Polaris | Sportsman 850 EFI Touring EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2010 | Polaris | Sportsman 850 EFI XP | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2010 | Polaris | Sportsman 850 EFI XP w/ EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2009 | Polaris | Sportsman 550 EFI XP | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2009 | Polaris | Sportsman 550 EFI XP w/ EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2009 | Polaris | Sportsman 850 EFI XP | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
| 2009 | Polaris | Sportsman 850 EFI XP w/ EPS | -L | -- | U/K | Drive Belt | Preferred; G-Force RedLine CVT Belts |
