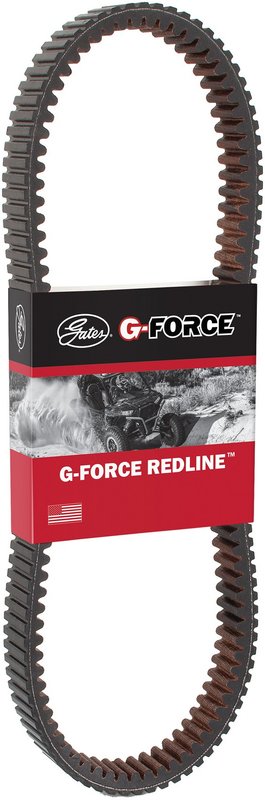

Gates 23R4340 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Gates G-Force RedLine CVT Belt Overview

The Gates G-Force RedLine CVT Belt, part number 23R4340, is a high-performance automatic continuously variable transmission belt built for power sport and off-road use. It is engineered for stronger acceleration, higher top speed potential, and reduced speed-ratio and energy loss in demanding terrain.

For buyers searching for a Gates CVT belt for ATV, UTV, or powersports drivetrains, 23R4340 delivers an OE-improved replacement option with the dimensions and construction details needed for precise transmission operation.

Key Features

• Gates G-Force RedLine CVT Belt for automatic continuously variable transmissions
• Part number 23R4340 for identification and ordering
• Power Sport Specialty High Performance CVT Belt type
• Double-notched construction for improved flexibility
• Aramid cord material for strength and stability
• EPDM belt material with black finish
• Fabric bottom and notched design
• OE Improved comparison rating
• Top width: 1.219 in. (31 mm)
• Thickness: 0.597 in. (15.2 mm)
• Outside circumference: 44.625 in. (1133 mm)
• Pitch length: 43.402 in. (1102 mm)
• Pitch width: 1.15 in. (29.2 mm)
• Section: RVS-R, angle: 26 degrees

Product Details

Gates built the G-Force RedLine line as a CVT belt family for demanding power sport applications, with a focus on reducing energy loss and maintaining consistent belt performance under load. The 23R4340 uses aramid reinforcement, EPDM construction, and a double-notched profile to support belt flexibility and durability in extreme off-road environments. If you are comparing Gates 23R4340 against other CVT belt options, this part is specified as an OE-improved replacement with exact dimensional data for fitment matching.

This part cross-references Monroe Shocks & Struts (e.g., HPX2248, M162111) for the same application.

What It Helps Address

• Slipping or inconsistent CVT belt engagement
• Loss of acceleration under load
• Reduced top-speed performance from belt wear
• Heat and stress buildup in off-road driving
• Dimensional mismatch during CVT belt replacement

Installation Notes

Verify the top width, thickness, outside circumference, pitch length, and pitch width before installation. Match the belt section, angle, and construction to the transmission specification, and inspect pulleys and clutch surfaces for wear before installing the new belt. For vehicle-specific searches, confirm the application against the exact CVT setup on your ATV or UTV before ordering Gates 23R4340.

Compatible With select powersport CVT applications; use the listed dimensions and interchange references to confirm the correct replacement for your vehicle. Search terms such as Gates 23R4340 CVT belt, RedLine CVT belt, and high-performance ATV UTV transmission belt are commonly used by buyers comparing replacement options for off-road drivetrains.

Quality Assurance

Gates designs the G-Force RedLine CVT Belt line for high-load powersport use with aramid reinforcement and OE-improved construction details. The 23R4340 is built to the published dimensional and material specifications shown above for consistent replacement selection.
