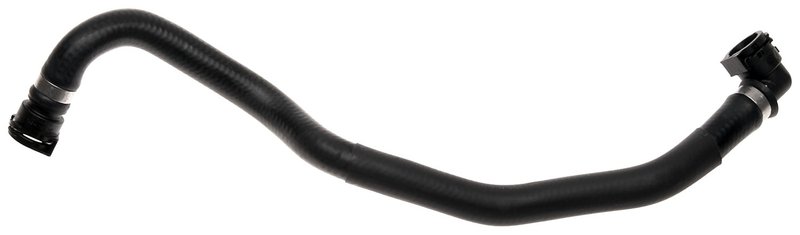

Gates 24269 Radiator Coolant Hose - Transmission Oil Cooler Inlet

Gates Molded Coolant Hose for BMW Cooling Service

The Gates 24269 molded coolant hose is built for specific BMW cooling-system applications and follows OE-style routing and connection points. It is a radiator coolant hose assembly for the transmission oil cooler inlet on select BMW 535i, 535i xDrive, 535i GT, and 535xi models.

Gates Molded Coolant Hose products are part of the brand’s modular coolant hose line, which focuses on application-specific assemblies with integrated OE-style components such as quick-connect fittings and molded shapes. This helps match the original hose layout used in the vehicle’s cooling system.

• Part number: 24269
• Application-specific molded coolant hose for BMW cooling service
• Material construction: EPDM, plastic, and steel
• Centerline length: 24 in. (610 mm)
• End 1 inside diameter: 0.46 in. (12 mm)
• End 2 inside diameter: 0.46 in. (12 mm)
• Modular hose design with 2 female quick connectors
• No spring included

Detailed Product Overview

Gates 24269 is a molded radiator coolant hose designed for the transmission oil cooler inlet on 2008-2010 BMW 535i, 2009-2010 BMW 535i xDrive, 2010 BMW 535i GT, and 2008 BMW 535xi. The molded shape and integrated quick-connect fittings support a direct OE-style hose layout, which is important when replacing a hose that follows a specific factory routing path. If you are searching for a BMW 535i transmission oil cooler inlet hose or a Gates 24269 coolant hose replacement, this part matches the listed applications.

This part cross-references Rein CHE0378R for the same application.

Common Issues This Hose Can Address

• Coolant leakage at a cracked or aged hose body
• Loose or damaged quick-connect ends at the transmission oil cooler inlet
• Improper hose routing after a previous repair
• Heat-related deterioration of EPDM hose material
• Fitment problems caused by using a non-molded replacement hose

Installation Notes and Tips

Confirm the vehicle year, model, and transmission oil cooler inlet location before installation. Inspect the mating connectors, seals, and surrounding cooling-system components for wear or contamination before attaching the new hose. Because this is a molded, application-specific hose assembly, verify that the routing matches the original factory path on the BMW 535i, 535i xDrive, 535i GT, or 535xi.

Quality Assurance

Gates is a recognized supplier in the modular coolant hose segment, and this hose is manufactured to application-specific specifications with OE-style integrated components for the listed BMW fitments. Part number 24269 is built for direct replacement use in the specified cooling-system position.
