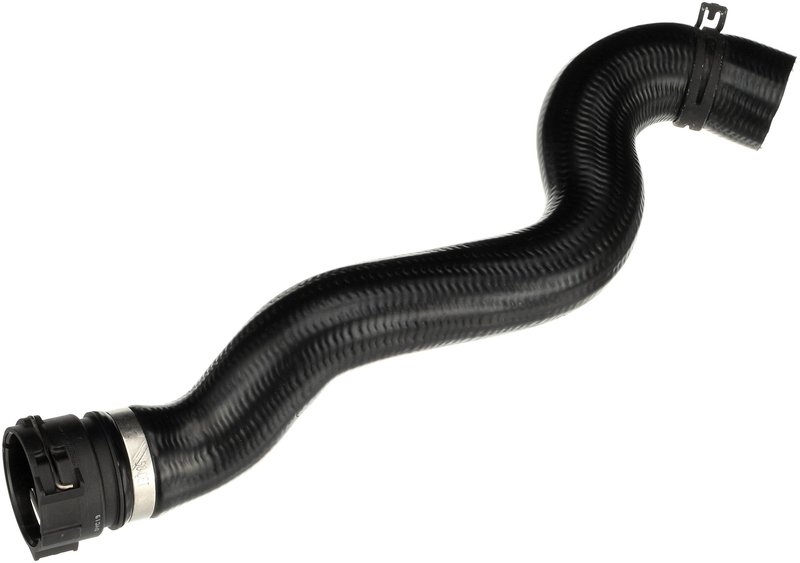

Gates 24569 Radiator Coolant Hose - Upper
| Brand | Gates 24569 |
|---|---|
| Position | Upper |
| 1 | |
| Yes | |
| Branch Quantity | 0 |
| Centerline Length | 16.25 |
| Centerline Length | 413 |
| Contains Spring | No |
| End 1 Inside Diameter | 1.4 |
| End 1 Inside Diameter | 36 |
| End 2 Inside Diameter | 1.4 |
| End 2 Inside Diameter | 36 |
| Material | EPDM, Plastic, Steel |
| Modular Components | Female Quick Connector |
| Modular Hose | Yes |
| Molded | Yes |
| Number of Quick Connect Fittings | 1 |
| Product line | Molded Coolant Hose |
| Fits | Volvo · 8 vehicles |
Molded coolant hose. Shaped for a precise fit and cleaner routing.
Modular design. Includes an integrated female quick connector for easier assembly.
OE-style construction. Built to match OEM specifications with essential integrated components.
Cross-references BBB Industries 17217, Dayco 72834 and Genuine 31319441 for the same application. See all 8.
Volvo XC90 Upper Coolant Hose
Gates 24569 is a molded radiator coolant hose built for the upper cooling circuit on select Volvo XC90 models. It follows application-specific OE-style dimensions and integrates a female quick connector for a direct-fit cooling system repair.
The Gates Molded Coolant Hose line is focused on modular coolant assemblies that mirror original equipment layouts, including integrated components such as quick-connect fittings and other OE-style features where required. For Volvo XC90 upper hose service, this helps maintain the correct routing and connection style for the cooling system.
Key Features
- Part number: 24569
- Fits 2007-2014 Volvo XC90, upper
- Molded radiator coolant hose construction
- Made from EPDM, plastic, and steel
- Centerline length: 16.25 in. (413 mm)
- End 1 inside diameter: 1.4 in. (36 mm)
- End 2 inside diameter: 1.4 in. (36 mm)
- Includes 1 female quick connector
- Modular hose design with molded shape
Detailed Description
Gates 24569 is a molded upper radiator coolant hose for 2007-2014 Volvo XC90 applications. It is built to match the vehicle-specific hose routing and connection style used in the cooling system, with EPDM, plastic, and steel materials selected for the demands of coolant service. The molded profile and integrated female quick connector support a precise OE-style replacement for the Volvo XC90 upper hose location.
This part cross-references Dayco 72834 for the same application.
Common Repair Symptoms
- Coolant leak at the upper hose connection
- Cracked, swollen, or softened hose material
- Loose or damaged quick-connect fitting
- Restricted coolant flow from hose deterioration
- Visible seepage around the Volvo XC90 upper radiator hose
Installation Notes and Tips
Confirm the hose routing, connector style, and end diameters before installation on the Volvo XC90. Inspect mating fittings, clamps, and nearby plastic components for wear or coolant residue, and replace any damaged sealing surfaces before refilling the system. After installation, refill and bleed the cooling system according to the vehicle service procedure and check for leaks at operating temperature.
Quality Assurance
Gates is a recognized aftermarket supplier of modular coolant hose assemblies, and this hose is manufactured to application-specific specifications for the listed Volvo XC90 fitment.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2014 | Volvo | XC90 | 3.2L | L6 | GAS | Upper | Molded Coolant Hose |
| 2013 | Volvo | XC90 | 3.2L | L6 | GAS | Upper | Molded Coolant Hose |
| 2012 | Volvo | XC90 | 3.2L | L6 | GAS | Upper | Molded Coolant Hose |
| 2011 | Volvo | XC90 | 3.2L | L6 | GAS | Upper | Molded Coolant Hose |
| 2010 | Volvo | XC90 | 3.2L | L6 | GAS | Upper | Molded Coolant Hose |
| 2009 | Volvo | XC90 | 3.2L | L6 | GAS | Upper | Molded Coolant Hose |
| 2008 | Volvo | XC90 | 3.2L | L6 | GAS | Upper | Molded Coolant Hose |
| 2007 | Volvo | XC90 | 3.2L | L6 | GAS | Upper | Molded Coolant Hose |
