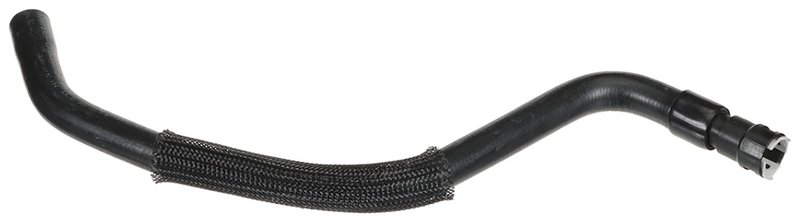

Gates 24612 HVAC Heater Hose - Heater (Upper)
Gates Molded Coolant Hose for Mazda 5
The Gates 24612 molded coolant hose is built for the heater circuit on select 2006-2010 Mazda 5 models. It follows OE-style routing and integrates a female quick connector for a direct-fit service replacement.
Key Features
- Gates Molded Coolant Hose line for application-specific cooling system service
- Fits 2006-2010 Mazda 5, Heater (Upper)
- EPDM, plastic, and steel construction for coolant system use
- Molded hose shape helps match factory routing
- Includes 1 female quick connector
- Centerline length: 21.28 in. (541 mm)
- End 1 inside diameter: 0.62 in. (16 mm)
- End 2 inside diameter: 0.72 in. (18 mm)
Product Details
Gates part number 24612 is a modular molded coolant hose made for specific vehicle applications rather than universal use. Gates builds this hose to mirror OEM-style fitment and to incorporate essential integrated components used in the original heater hose assembly. For Mazda 5 heater hose replacement, this design supports proper hose routing and connection at the upper heater position.
This part cross-references BBB Industries 17266 for the same application. It also cross-references 24737L for the same application.
What This Hose Helps Address
- Coolant leaks at a worn or damaged heater hose assembly
- Cracked, hardened, or heat-aged hose material
- Improper fit from a previous non-molded replacement hose
- Connection issues at the female quick connector interface
- Service needs on the heater (upper) coolant line in Mazda 5 models
Installation Notes
Verify the vehicle year, make, model, and heater hose position before installation. Compare the original hose routing, connector style, and end diameters to confirm the Gates 24612 matches the removed part. Inspect adjoining coolant system components for wear, contamination, or damage before reassembly.
Quality Assurance
Gates is a recognized aftermarket supplier of modular coolant hose assemblies, with products engineered around specific OE-style applications and integrated components.
| Brand | Gates |
|---|---|
| Part Number | 24612 |
| Position | Molded Coolant Hose, Heater (Upper) |
| Material | Epdm, plastic, steel |
| End 1 Inside Diameter | .62 |
| End 1 Inside Diameter | 16 |
| End 2 Inside Diameter | .72 |
| End 2 Inside Diameter | 18 |
| Contains Spring | No |
| Centerline Length | 21.28 |
| Centerline Length | 541 |
| Branch Quantity | 0 |
| 9839 | Yes |
| 9845 | 1 |
| Modular Components | Female quick connector |
| Modular Hose | Yes |
| Molded | Yes |
| Number of Quick Connect Fittings | 1 |
This part fits 5 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Mazda | 5 | 2.3L | L4 | GAS | Heater (Upper) | Molded Coolant Hose |
| 2009 | Mazda | 5 | 2.3L | L4 | GAS | Heater (Upper) | Molded Coolant Hose |
| 2008 | Mazda | 5 | 2.3L | L4 | GAS | Heater (Upper) | Molded Coolant Hose |
| 2007 | Mazda | 5 | 2.3L | L4 | GAS | Heater (Upper) | Molded Coolant Hose |
| 2006 | Mazda | 5 | 2.3L | L4 | GAS | Heater (Upper) | Molded Coolant Hose |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
