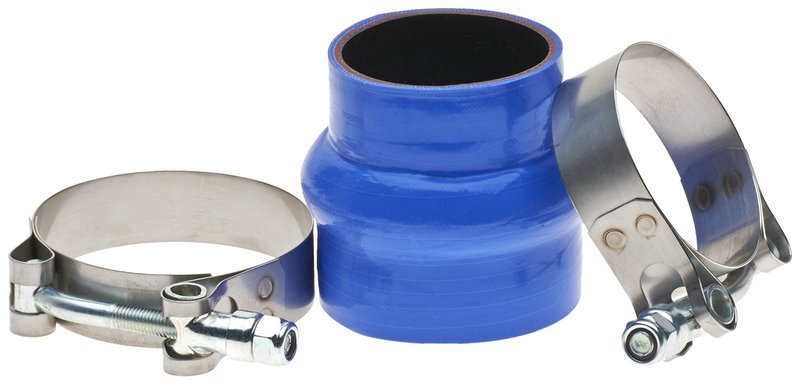

Gates 26212 Turbocharger Intercooler Hose Kit - Turbocharger To Engine
Overview of Gates Turbocharger Hose Kit 26212
The Gates Turbocharger Hose Kit (Molded) part number 26212 is engineered for reliable performance in Ford F-250 Super Duty and F-350 Super Duty trucks. Designed to meet specific OEM requirements, this hose kit ensures proper turbocharger function and durability under demanding conditions.
- Compatible with Ford F-250 Super Duty and F-350 Super Duty models
- Centerline length of 2.5 inches (64 mm) for precise fitment
- End 1 inside diameter: 2 inches (51 mm); End 2 inside diameter: 2.3 inches (58 mm)
- Clamp band width of 0.75 inches (19.1 mm) for secure connections
- Bolt type: 0.25 in. - 28 plated steel male pipe thread
- Nut type: 0.4375 in. hex-head for reliable fastening
- Clamping length ranges from 2.1 to 2.6875 inches (49.1 to 68.3 mm) to accommodate installation variances
Detailed Product Description
The Gates Turbocharger Hose Kits (Molded) product line is designed to provide molded hose assemblies that maintain turbocharger system integrity and performance. Part number 26212 features molded construction with precise dimensions to ensure compatibility with Ford Super Duty trucks. The hose ends have inside diameters of 2 inches (51 mm) and 2.3 inches (58 mm), allowing for proper airflow and pressure management within the turbocharger system. The centerline length of 2.5 inches (64 mm) supports accurate installation without the need for modifications.
Clamping components include a 0.75 inch (19.1 mm) wide band with a plated steel male pipe thread bolt and a 0.4375 inch hex-head nut, providing secure and adjustable clamping ranges from 2.1 to 2.6875 inches (49.1 to 68.3 mm). These specifications ensure a tight seal and resistance to vibration and pressure fluctuations common in turbocharged engines.
Applications and Problem Solving
- Replacement of worn or cracked turbocharger hoses in Ford F-250 Super Duty and F-350 Super Duty trucks
- Prevention of boost leaks that can reduce engine performance and fuel efficiency
- Addressing hose failures caused by heat, pressure, or age-related degradation
- Ensuring proper turbocharger airflow for consistent engine power delivery
- Maintaining system integrity to avoid costly turbocharger damage
Installation Notes and Tips
When installing the Gates Turbocharger Hose Kit 26212, verify the hose dimensions against the vehicle’s turbocharger connections to ensure compatibility. Use the specified clamping ranges to adjust the clamps securely without over-tightening, which could damage the hose or fittings. Inspect mating surfaces for cleanliness and damage before installation to promote a proper seal. It is recommended to replace any worn clamps or hardware to maintain system reliability.
Quality Assurance and Warranty
Gates manufactures the Turbocharger Hose Kits (Molded) line to meet stringent quality standards for durability and performance in demanding automotive environments. While specific warranty details for part number 26212 are not provided here, Gates products typically come with manufacturer-backed warranties covering defects in materials and workmanship. For detailed warranty information, consult the official Gates documentation or authorized distributors.
| Brand | Gates |
| Part Number | 26212 |
| Position | Turbocharger Hose Kits (Molded), Turbocharger To Engine |
| 75 | |
| Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Centerline Length | 2.5 |
| Centerline Length | 64 |
| Centerline Length (in) | 2.5 |
| Centerline Length (mm) | 64 |
| Clamp 1 - Band Width (in) | .75 |
| Clamp 1 - Band Width (mm) | 19.1 |
| Clamp 1 - Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Clamp 1 - Clamping Range Max (in) | 2.25 |
| Clamp 1 - Clamping Range Max (mm) | 57.2 |
| Clamp 1 - Clamping Range Min (in) | 2.1 |
| Clamp 1 - Clamping Range Min (mm) | 49.1 |
| Clamp 1 - Nut Type | .4375 in. Hex-Head |
| Clamp 1 - Recommended Torque (in/lbs) | 75 |
| Clamp 2 - Band Width (in) | .75 |
| Clamp 2 - Band Width (mm) | 19.1 |
| Clamp 2 - Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Clamp 2 - Clamping Range Max (in) | 2.6875 |
| Clamp 2 - Clamping Range Max (mm) | 68.3 |
| Clamp 2 - Clamping Range Min (in) | 2.375 |
| Clamp 2 - Clamping Range Min (mm) | 60.5 |
| Clamp 2 - Nut Type | .4375 in. Hex-Head |
| Clamp 2 - Recommended Torque (in/lbs) | 75 |
| Clamp Band Width | .75 |
| Clamp Band Width | 19.1 |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| End 1 Inside Diameter | 2 |
| End 1 Inside Diameter | 51 |
| End 2 Inside Diameter | 2.3 |
| End 2 Inside Diameter | 58 |
| Inside Diameter 1 (in) | 2 |
| Inside Diameter 1 (mm) | 51 |
| Inside Diameter 2 (in) | 2.3 |
| Inside Diameter 2 (mm) | 58 |
| Maximum Clamping Length | 2.25 |
| Maximum Clamping Length | 2.6875 |
| Maximum Clamping Length | 57.2 |
| Maximum Clamping Length | 68.3 |
| Minimum Clamping Length | 2.1 |
| Minimum Clamping Length | 2.375 |
| Minimum Clamping Length | 49.1 |
| Minimum Clamping Length | 60.5 |
| Number of Rings | 0 |
| Nut Type | .4375 in. Hex-Head |
| OE Comparison Rating | OE Improved |
| Ring Quantity | 0 |
This part fits 2 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1999 | Ford | F-250 Super Duty | 7.3L | V8 | DIESEL | Turbocharger To Engine | Dual I.D. Hose; Turbocharger Hose Kits (Molded) |
| 1999 | Ford | F-350 Super Duty | 7.3L | V8 | DIESEL | Turbocharger To Engine | Dual I.D. Hose; Turbocharger Hose Kits (Molded) |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
