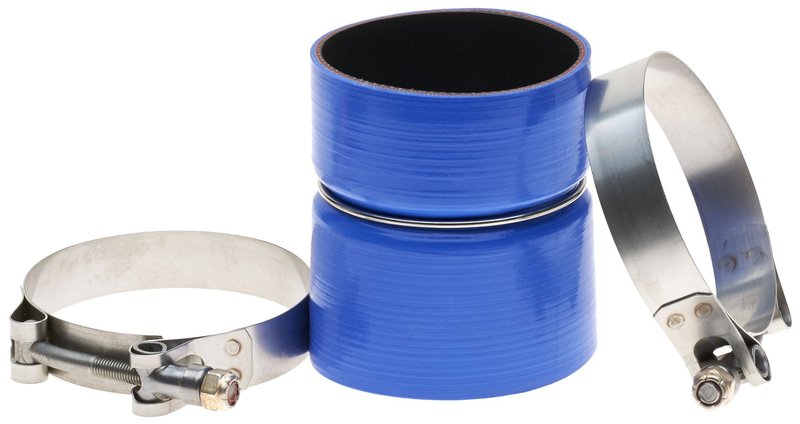

Gates 26216 - Engine To Pipe (Hot Side) or Turbocharger to Pipe (Hot Side)

Overview of Gates Turbocharger Hose Kit 26216

The Gates Turbocharger Hose Kit (Molded) part number 26216 is engineered for reliable performance in Ford F-250 Super Duty and F-350 Super Duty trucks. Designed to meet precise specifications, this molded hose kit ensures proper turbocharger function and durability under demanding conditions.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty models
• Centerline length of 3.75 inches (95 mm) for accurate fitment
• Inside diameter of 3 inches (76 mm) on both ends for consistent airflow
• Clamp band width of 0.75 inches (19.1 mm) for secure connections
• Clamping range between 3.0625 inches (77.8 mm) and 3.375 inches (85.7 mm)
• Plated steel male pipe thread bolt type with .25 in. - 28 specification
• Hex-head nut type measuring 0.4375 inches for reliable tightening
• Recommended clamp torque of 75 in/lbs for optimal sealing

About the Turbocharger Hose Kits (Molded) Product Line

The Gates Turbocharger Hose Kits (Molded) product line focuses on precision-molded hoses designed to maintain turbocharger system integrity. These kits provide consistent dimensions and material quality to withstand high temperatures and pressures typical in turbocharged engines. Part number 26216 exemplifies this line by offering exact fitment and durable construction tailored for Ford Super Duty trucks.

Detailed Product Description

This molded turbocharger hose kit features a centerline length of 3.75 inches (95 mm) and an inside diameter of 3 inches (76 mm) on both ends, ensuring a proper seal and efficient airflow between turbocharger components. The clamps included have a band width of 0.75 inches (19.1 mm) and a clamping range from 3.0625 inches (77.8 mm) to 3.375 inches (85.7 mm), providing a secure fit that resists leaks and loosening. The bolt type is a plated steel male pipe thread sized at .25 in. - 28, paired with a 0.4375 inch hex-head nut, designed for reliable fastening. The recommended torque for the clamps is 75 in/lbs, which helps maintain optimal clamping force without damaging the hose or fittings.

Common Applications and Issues Addressed

• Replacement of worn or cracked turbocharger hoses in Ford F-250 Super Duty and F-350 Super Duty trucks
• Prevention of boost leaks that can reduce engine performance
• Restoration of proper turbocharger airflow and pressure control
• Mitigation of hose failures caused by heat and pressure cycling
• Ensuring secure clamp connections to avoid hose detachment

Installation Notes and Tips

• Verify hose dimensions and clamp sizes match your vehicle’s turbocharger system before installation
• Use a torque wrench to apply the recommended 75 in/lbs clamp torque for proper sealing
• Inspect mating surfaces for debris or damage to ensure a tight fit
• Replace clamps if they show signs of corrosion or wear during installation
• Allow the engine to cool before removing old hoses to prevent burns

Quality Assurance

Gates manufactures the Turbocharger Hose Kits (Molded) line to meet stringent quality standards, ensuring durability and performance in demanding automotive environments. Part number 26216 is produced with high-grade materials and precise molding techniques to maintain consistent dimensions and resistance to heat and pressure. While specific warranty details are not provided, Gates products typically adhere to industry standards for reliability and fitment.
