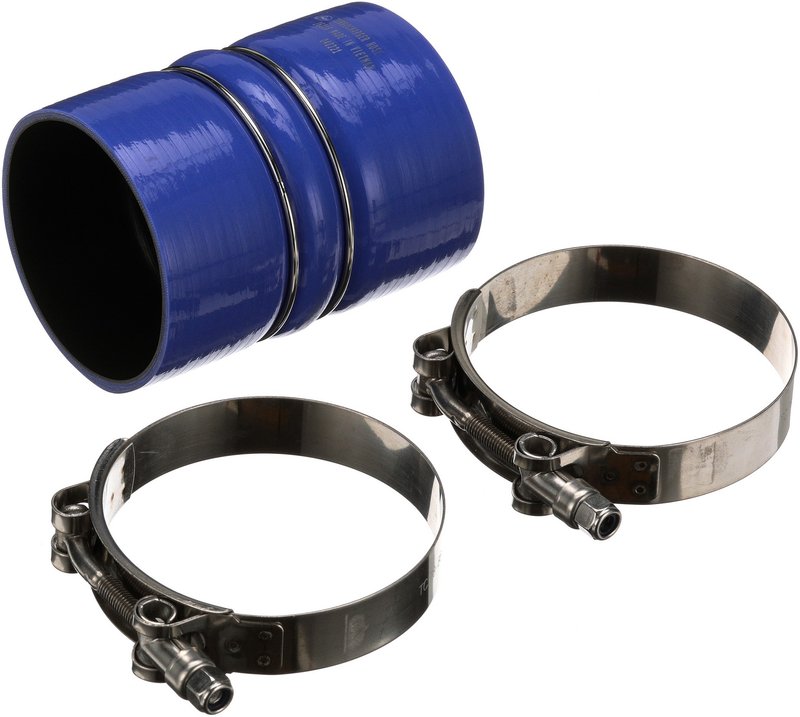

Gates 26218 Turbocharger Intercooler Hose Kit - Intercooler to Pipe (Cold Side)
Overview of Gates Turbocharger Hose Kit 26218
The Gates Turbocharger Hose Kit (Molded) part number 26218 is designed specifically for Ford F-250 Super Duty and F-350 Super Duty models. This molded hose kit ensures reliable turbocharger performance by providing precise fitment and durable construction.
- Compatible with Ford F-250 Super Duty and F-350 Super Duty
- Centerline length of 4.09 inches (104 mm)
- 3-inch (76 mm) inside diameter on both ends
- Includes two clamps with .75 inch (19.1 mm) band width
- Clamps feature plated steel male pipe thread bolts (.25 in. - 28) and .4375 inch hex-head nuts
- Clamp clamping range from 3.0625 to 3.375 inches (77.8 to 85.7 mm)
- Recommended clamp torque of 75 in/lbs for secure installation
About the Turbocharger Hose Kits (Molded) Product Line
The Turbocharger Hose Kits (Molded) line by Gates offers molded hoses engineered for turbocharger systems requiring precise dimensions and reliable sealing. These kits include molded hoses and clamps designed to maintain proper airflow and pressure in turbocharged engines. Part number 26218 is a component of this line, tailored to meet the specifications of Ford Super Duty trucks.
Detailed Product Description
This turbocharger hose kit features a molded hose with a consistent 3-inch (76 mm) inside diameter on both ends, ensuring optimal airflow between turbocharger components. The centerline length of 4.09 inches (104 mm) provides a precise fit for the intended Ford F-250 and F-350 Super Duty applications. The included clamps have a band width of .75 inches (19.1 mm) and are equipped with plated steel male pipe thread bolts and hex-head nuts for secure fastening. The clamps accommodate a clamping range between 3.0625 and 3.375 inches (77.8 to 85.7 mm), allowing for a tight seal and preventing leaks under high pressure.
Common Applications and Issues Addressed
- Replacement of worn or cracked turbocharger hoses on Ford F-250 Super Duty and F-350 Super Duty
- Prevention of boost leaks that reduce engine performance
- Restoration of proper turbocharger airflow and pressure
- Elimination of hose clamp failures causing air loss
- Maintenance of turbocharger system integrity under high temperature and pressure
Installation Notes and Tips
- Verify hose dimensions and clamp sizes before installation to ensure compatibility
- Use the recommended torque of 75 in/lbs on clamps to avoid over-tightening or under-tightening
- Inspect mating surfaces for damage or debris prior to installation
- Replace clamps if signs of corrosion or wear are present
- Ensure hose is properly seated on fittings before tightening clamps
Quality Assurance and Warranty
Gates manufactures the Turbocharger Hose Kits (Molded) line to meet OEM specifications for durability and performance. Part number 26218 undergoes quality control to ensure dimensional accuracy and material integrity. While specific warranty details are not provided here, Gates typically offers warranties covering defects in materials and workmanship. Consult the product packaging or Gates directly for warranty terms.
| Brand | Gates |
| Part Number | 26218 |
| Position | Turbocharger Hose Kits (Molded), Intercooler to Pipe (Cold Side) |
| 75 | |
| Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Centerline Length | 4.09 |
| Centerline Length | 104 |
| Centerline Length (in) | 4.09 |
| Centerline Length (mm) | 104 |
| Clamp 1 - Band Width (in) | .75 |
| Clamp 1 - Band Width (mm) | 19.1 |
| Clamp 1 - Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Clamp 1 - Clamping Range Max (in) | 3.375 |
| Clamp 1 - Clamping Range Max (mm) | 85.7 |
| Clamp 1 - Clamping Range Min (in) | 3.0625 |
| Clamp 1 - Clamping Range Min (mm) | 77.8 |
| Clamp 1 - Nut Type | .4375 in. Hex-Head |
| Clamp 1 - Recommended Torque (in/lbs) | 75 |
| Clamp 2 - Band Width (in) | .75 |
| Clamp 2 - Band Width (mm) | 19.1 |
| Clamp 2 - Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Clamp 2 - Clamping Range Max (in) | 3.375 |
| Clamp 2 - Clamping Range Max (mm) | 85.7 |
| Clamp 2 - Clamping Range Min (in) | 3.0625 |
| Clamp 2 - Clamping Range Min (mm) | 77.8 |
| Clamp 2 - Nut Type | .4375 in. Hex-Head |
| Clamp 2 - Recommended Torque (in/lbs) | 75 |
| Clamp Band Width | .75 |
| Clamp Band Width | 19.1 |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| End 1 Inside Diameter | 3 |
| End 1 Inside Diameter | 76 |
| End 2 Inside Diameter | 3 |
| End 2 Inside Diameter | 76 |
| Inside Diameter 1 (in) | 3 |
| Inside Diameter 1 (mm) | 76 |
| Inside Diameter 2 (in) | 3 |
| Inside Diameter 2 (mm) | 76 |
| Maximum Clamping Length | 3.375 |
| Maximum Clamping Length | 85.7 |
| Minimum Clamping Length | 3.0625 |
| Minimum Clamping Length | 77.8 |
| Number of Rings | 2 |
| Nut Type | .4375 in. Hex-Head |
| OE Comparison Rating | OE Improved |
| Ring Quantity | 2 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Ford | F-250 Super Duty | 6.4L | V8 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2010 | Ford | F-350 Super Duty | 6.4L | V8 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2009 | Ford | F-250 Super Duty | 6.4L | V8 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2009 | Ford | F-350 Super Duty | 6.4L | V8 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2008 | Ford | F-250 Super Duty | 6.4L | V8 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2008 | Ford | F-350 Super Duty | 6.4L | V8 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
