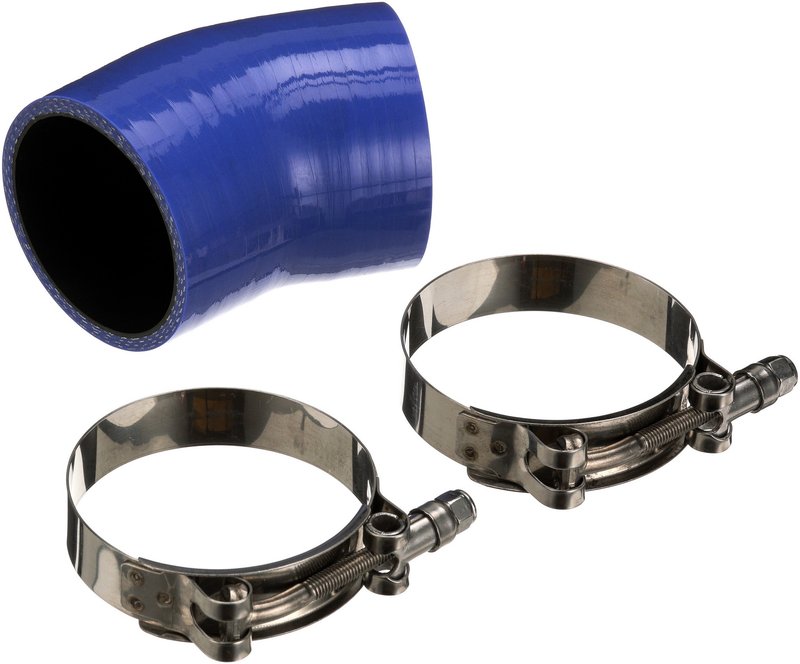

Gates 26220 Turbocharger Intercooler Hose Kit - Turbocharger to Pipe (Hot Side)
Overview of Gates Turbocharger Hose Kit 26220
The Gates Turbocharger Hose Kit (Molded) part number 26220 is designed for reliable performance in Ford Excursion, F-250 Super Duty, and F-350 Super Duty models. This molded hose kit ensures precise fitment and durability for turbocharger systems requiring specific hose dimensions and clamp specifications.
- Compatible with Ford Excursion, F-250 Super Duty, and F-350 Super Duty
- Centerline length: 4.125 inches (105 mm)
- Inside diameter at both ends: 2.5 inches (64 mm)
- Clamp band width: 0.75 inches (19.1 mm)
- Clamp bolt type: 0.25 in. - 28 plated steel male pipe thread
- Nut type: 0.4375 in. hex-head
- Clamping range: minimum 2.625 inches (66.8 mm), maximum 2.9375 inches (74.7 mm)
- Recommended clamp torque: 75 in/lbs
About the Turbocharger Hose Kits (Molded) Product Line
The Gates Turbocharger Hose Kits (Molded) product line offers molded hoses engineered to meet the exact specifications required for turbocharger systems. These kits provide consistent dimensions and clamp compatibility to ensure secure connections and optimal airflow. The molded design helps maintain hose integrity under high pressure and temperature conditions typical in turbocharged Ford trucks.
Detailed Product Description
This Gates turbocharger hose kit features a molded hose with a centerline length of 4.125 inches (105 mm) and an inside diameter of 2.5 inches (64 mm) at both ends, making it suitable for turbocharger connections on select Ford Super Duty and Excursion models. The included clamps have a band width of 0.75 inches (19.1 mm) and use plated steel male pipe thread bolts sized at 0.25 in. - 28, secured with 0.4375 inch hex-head nuts. The clamps accommodate a clamping range from 2.625 to 2.9375 inches (66.8 to 74.7 mm) and should be torqued to 75 in/lbs for proper sealing and durability.
Common Applications and Issues Addressed
- Replacement of worn or cracked turbocharger hoses on Ford Excursion and Super Duty trucks
- Resolving boost leaks caused by damaged or loose hose connections
- Maintaining proper turbocharger pressure and airflow for engine performance
- Preventing hose collapse or failure under high boost conditions
- Ensuring secure clamp fitment to avoid air leaks and engine inefficiency
Installation Notes and Tips
- Verify hose dimensions and clamp sizes match your vehicle’s turbocharger system before installation
- Use a torque wrench to tighten clamps to the recommended 75 in/lbs to avoid over-tightening or under-tightening
- Inspect mating surfaces for debris or damage prior to installation to ensure a proper seal
- Replace clamps if they show signs of corrosion or wear during installation
- Check hose routing to prevent contact with hot or moving engine components
Quality Assurance and Warranty
Gates manufactures this Turbocharger Hose Kit (Molded) to meet OEM specifications for durability and fitment. The part number 26220 undergoes quality control to ensure consistent performance in Ford Excursion, F-250 Super Duty, and F-350 Super Duty vehicles. Warranty coverage details should be confirmed with the original equipment manufacturer or authorized distributor.
| Brand | Gates |
| Part Number | 26220 |
| Position | Turbocharger Hose Kits (Molded), Turbocharger to Pipe (Hot Side) |
| 75 | |
| Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Centerline Length | 4.125 |
| Centerline Length | 105 |
| Centerline Length (in) | 4.125 |
| Centerline Length (mm) | 105 |
| Clamp 1 - Band Width (in) | .75 |
| Clamp 1 - Band Width (mm) | 19.1 |
| Clamp 1 - Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Clamp 1 - Clamping Range Max (in) | 2.9375 |
| Clamp 1 - Clamping Range Max (mm) | 74.7 |
| Clamp 1 - Clamping Range Min (in) | 2.625 |
| Clamp 1 - Clamping Range Min (mm) | 66.8 |
| Clamp 1 - Nut Type | .4375 in. Hex-Head |
| Clamp 1 - Recommended Torque (in/lbs) | 75 |
| Clamp 2 - Band Width (in) | .75 |
| Clamp 2 - Band Width (mm) | 19.1 |
| Clamp 2 - Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Clamp 2 - Clamping Range Max (in) | 2.9375 |
| Clamp 2 - Clamping Range Max (mm) | 74.7 |
| Clamp 2 - Clamping Range Min (in) | 2.625 |
| Clamp 2 - Clamping Range Min (mm) | 66.8 |
| Clamp 2 - Nut Type | .4375 in. Hex-Head |
| Clamp 2 - Recommended Torque (in/lbs) | 75 |
| Clamp Band Width | .75 |
| Clamp Band Width | 19.1 |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| End 1 Inside Diameter | 2.5 |
| End 1 Inside Diameter | 64 |
| End 2 Inside Diameter | 2.5 |
| End 2 Inside Diameter | 64 |
| Inside Diameter 1 (in) | 2.5 |
| Inside Diameter 1 (mm) | 64 |
| Inside Diameter 2 (in) | 2.5 |
| Inside Diameter 2 (mm) | 64 |
| Maximum Clamping Length | 2.9375 |
| Maximum Clamping Length | 74.7 |
| Minimum Clamping Length | 2.625 |
| Minimum Clamping Length | 66.8 |
| Number of Rings | 0 |
| Nut Type | .4375 in. Hex-Head |
| OE Comparison Rating | OE Improved |
| Ring Quantity | 0 |
This part fits 7 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2005 | Ford | Excursion | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2004 | Ford | Excursion | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2004 | Ford | F-250 Super Duty | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Oct. 14, 2004 & Older; Turbocharger Hose Kits (Molded) |
| 2004 | Ford | F-350 Super Duty | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Oct. 14, 2004 & Older; Turbocharger Hose Kits (Molded) |
| 2003 | Ford | Excursion | DIESEL | Turbocharger to Pipe (Hot Side) | Turbocharger Hose Kits (Molded) | ||
| 2003 | Ford | F-250 Super Duty | DIESEL | Turbocharger to Pipe (Hot Side) | Turbocharger Hose Kits (Molded) | ||
| 2003 | Ford | F-350 Super Duty | DIESEL | Turbocharger to Pipe (Hot Side) | Turbocharger Hose Kits (Molded) |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
