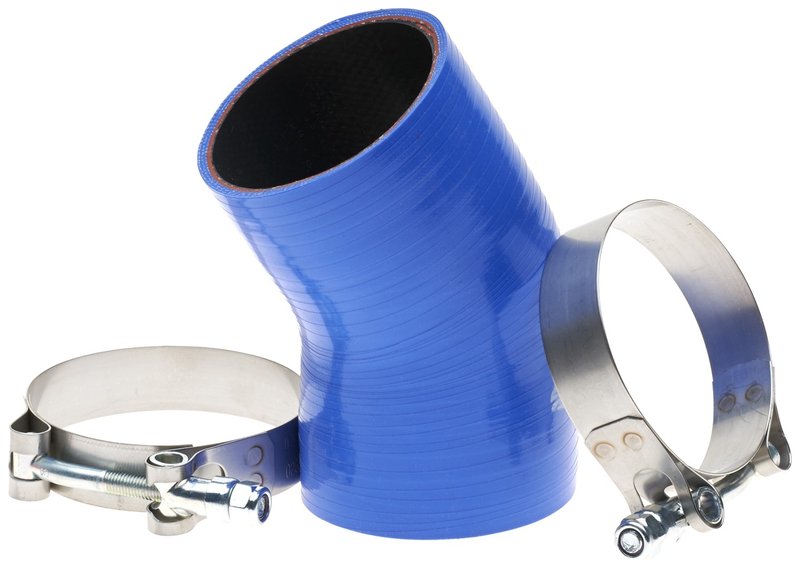

Gates 26222 Turbocharger Intercooler Hose Kit - Turbocharger to Pipe (Hot Side)
| Brand | Gates 26222 |
|---|---|
| Position | Turbocharger to Pipe (Hot Side) |
| 75 | |
| Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Centerline Length | 5.3125 |
| Centerline Length | 135 |
| Centerline Length (in) | 5.3125 |
| Centerline Length (mm) | 135 |
| Clamp 1 - Band Width (in) | .75 |
| Clamp 1 - Band Width (mm) | 19.1 |
| Clamp 1 - Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Clamp 1 - Clamping Range Max (in) | 2.9375 |
| Clamp 1 - Clamping Range Max (mm) | 74.7 |
| Clamp 1 - Clamping Range Min (in) | 2.625 |
| Clamp 1 - Clamping Range Min (mm) | 66.8 |
| Clamp 1 - Nut Type | .4375 in. Hex-Head |
| Clamp 1 - Recommended Torque (in/lbs) | 75 |
| Clamp 2 - Band Width (in) | .75 |
| Clamp 2 - Band Width (mm) | 19.1 |
| Clamp 2 - Bolt Type | .25 in. - 28 Plated Steel Male Pipe Thread |
| Clamp 2 - Clamping Range Max (in) | 2.9375 |
| Clamp 2 - Clamping Range Max (mm) | 74.7 |
| Clamp 2 - Clamping Range Min (in) | 2.625 |
| Clamp 2 - Clamping Range Min (mm) | 66.8 |
| Clamp 2 - Nut Type | .4375 in. Hex-Head |
| Clamp 2 - Recommended Torque (in/lbs) | 75 |
| Clamp Band Width | .75 |
| Clamp Band Width | 19.1 |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| End 1 Inside Diameter | 2.5 |
| End 1 Inside Diameter | 64 |
| End 2 Inside Diameter | 2.5 |
| End 2 Inside Diameter | 64 |
| Inside Diameter 1 (in) | 2.5 |
| Inside Diameter 1 (mm) | 64 |
| Inside Diameter 2 (in) | 2.5 |
| Inside Diameter 2 (mm) | 64 |
| Maximum Clamping Length | 2.9375 |
| Maximum Clamping Length | 74.7 |
| Minimum Clamping Length | 2.625 |
| Minimum Clamping Length | 66.8 |
| Number of Rings | 0 |
| Nut Type | .4375 in. Hex-Head |
| OE Comparison Rating | OE Improved |
| Ring Quantity | 0 |
| Product line | Turbocharger Hose Kits (Molded) |
| Fits | Ford · 8 vehicles |
OE improved. A superior alternative to original replacement hoses.
Molded hose kit. One-stop replacement for a complete turbocharger hose system.
Includes T-bolt clamps. Comes with two clamps for a secure connection.
Cross-references Dorman - OE Solutions 904-400, Gates 26222 and Standard Ignition TIH2 for the same application. See all 6.
Turbocharger Hose Kit for Ford Super Duty
Gates 26222 is a molded turbocharger hose kit for hot-side turbocharger-to-pipe service on select Ford Super Duty diesel applications. It is built as a direct replacement solution for worn or damaged boost plumbing, with OE improved comparison rating and fitment for 2004-2007 Ford F-250 Super Duty and Ford F-350 Super Duty models.
For buyers searching for a Ford F-250 Super Duty turbocharger hose kit or a Ford F-350 Super Duty hot-side turbo hose replacement, this Gates 26222 assembly provides the molded hose profile and clamp fitment needed for a complete hose-system replacement.
Key Features
- Molded turbocharger hose kit for turbocharger to pipe, hot-side routing
- 2.5 in. inside diameter at both ends for matched connection sizing
- 5.3125 in. centerline length for the specified application geometry
- Includes 2 T-bolt clamps with 19.1 mm band width
- Clamp range: 66.8 mm to 74.7 mm
- OE improved comparison rating for replacement service
- Gates part number 26222
Product Details
Gates Turbocharger Hose Kits (Molded) are built for complete turbocharger hose system replacement when the original hose has cracked, softened, or lost sealing integrity. This kit includes one molded turbocharger hose and two T-bolt clamps, with a 2.5 in. inside diameter on both ends, a 135 mm centerline length, and clamp hardware sized for the listed clamping range. Gates 26222 is cross-referenced to Dorman OE Solutions 904-400 for the same application.
Compatible With 2004 Ford F-250 Super Duty and Ford F-350 Super Duty, Oct. 15, 2004 & newer, plus 2005-2007 Ford F-250 Super Duty and Ford F-350 Super Duty, turbocharger to pipe (hot side). The molded construction helps maintain the intended hose shape in the turbocharger plumbing path, which is important for consistent sealing and routing on these Ford Super Duty diesel setups.
Common Replacement Reasons
- Boost leak from a split or deteriorated turbocharger hose
- Oil-soaked or heat-aged hose material at the hot-side connection
- Loose or uneven sealing at the turbocharger-to-pipe joint
- Collapsed or misshaped hose affecting turbo plumbing alignment
- Service replacement for a damaged Ford F-250 Super Duty or Ford F-350 Super Duty hose assembly
Installation Notes
Verify the turbocharger-to-pipe hot-side routing and match the hose dimensions before installation. Clean the mating surfaces, inspect the pipe ends for damage, and tighten the T-bolt clamps evenly to the specified 75 in/lbs recommended torque. Confirm the clamp range covers the installed hose diameter before final assembly. Gates 26222 should be matched to the exact vehicle year and configuration listed for Ford F-250 Super Duty and Ford F-350 Super Duty applications.
Quality Assurance
Gates backs this molded turbocharger hose kit with an OE improved comparison rating, reflecting a replacement approach focused on fit, routing, and service life for the specified Ford Super Duty applications. Part number 26222 is engineered for direct replacement use in the listed turbocharger hose system.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Ford | F-250 Super Duty | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2007 | Ford | F-350 Super Duty | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2006 | Ford | F-250 Super Duty | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2006 | Ford | F-350 Super Duty | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2005 | Ford | F-250 Super Duty | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2005 | Ford | F-350 Super Duty | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2004 | Ford | F-250 Super Duty | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Oct. 15, 2004 & Newer; Turbocharger Hose Kits (Molded) |
| 2004 | Ford | F-350 Super Duty | 6.0L | V8 | DIESEL | Turbocharger to Pipe (Hot Side) | Oct. 15, 2004 & Newer; Turbocharger Hose Kits (Molded) |
