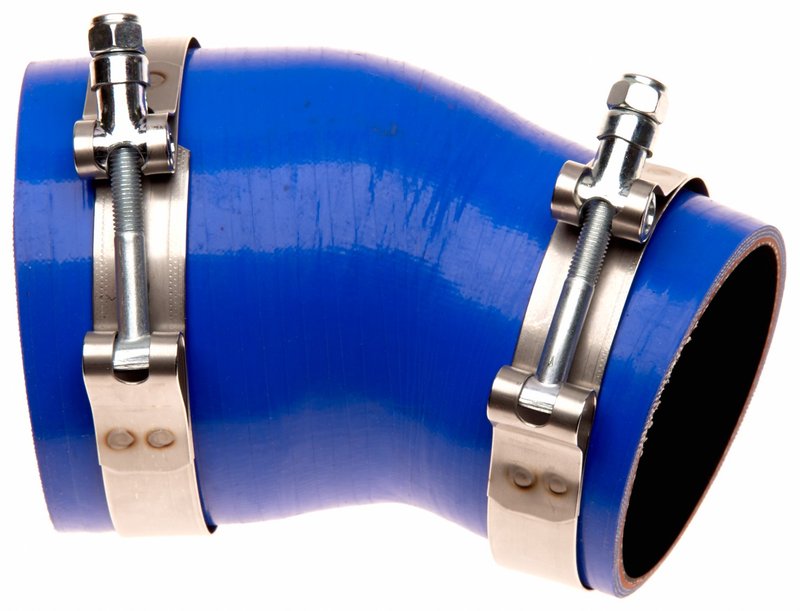

Gates 26229 Turbocharger Intercooler Hose Kit - Pipe to Intercooler (Hot Side)
| Brand | Gates 26229 |
|---|---|
| Position | Pipe to Intercooler (Hot Side) |
| 75 | |
| Bolt Type | .25 in. - 28 Male Pipe Thread |
| Centerline Length | 5.87 |
| Centerline Length | 149 |
| Centerline Length (in) | 5.87 |
| Centerline Length (mm) | 149 |
| Clamp 1 - Band Width (in) | .75 |
| Clamp 1 - Band Width (mm) | 19.1 |
| Clamp 1 - Bolt Type | .25 in. - 28 Male Pipe Thread |
| Clamp 1 - Clamping Range Max (in) | 3.4375 |
| Clamp 1 - Clamping Range Max (mm) | 87.4 |
| Clamp 1 - Clamping Range Min (in) | 3.125 |
| Clamp 1 - Clamping Range Min (mm) | 79.5 |
| Clamp 1 - Nut Type | .4375 in. Hex-Head |
| Clamp 1 - Recommended Torque (in/lbs) | 75 |
| Clamp 2 - Band Width (in) | .75 |
| Clamp 2 - Band Width (mm) | 19.1 |
| Clamp 2 - Bolt Type | .25 in. - 28 Male Pipe Thread |
| Clamp 2 - Clamping Range Max (in) | 4.0625 |
| Clamp 2 - Clamping Range Max (mm) | 103.1 |
| Clamp 2 - Clamping Range Min (in) | 3.75 |
| Clamp 2 - Clamping Range Min (mm) | 95.3 |
| Clamp 2 - Nut Type | .4375 in. Hex-Head |
| Clamp 2 - Recommended Torque (in/lbs) | 75 |
| Clamp Band Width | .75 |
| Clamp Band Width | 19.1 |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| End 1 Inside Diameter | 2.95 |
| End 1 Inside Diameter | 75 |
| End 2 Inside Diameter | 3.62 |
| End 2 Inside Diameter | 92 |
| Inside Diameter 1 (in) | 2.95 |
| Inside Diameter 1 (mm) | 75 |
| Inside Diameter 2 (in) | 3.62 |
| Inside Diameter 2 (mm) | 92 |
| Maximum Clamping Length | 3.4375 |
| Maximum Clamping Length | 4.0625 |
| Maximum Clamping Length | 87.4 |
| Maximum Clamping Length | 103.1 |
| Minimum Clamping Length | 3.125 |
| Minimum Clamping Length | 3.75 |
| Minimum Clamping Length | 79.5 |
| Minimum Clamping Length | 95.3 |
| Number of Rings | 0 |
| Nut Type | .4375 in. Hex-Head |
| OE Comparison Rating | OE Improved |
| Ring Quantity | 0 |
| Product line | Turbocharger Hose Kits (Molded) |
| Fits | Dodge · 18 vehicles |
OE improved replacement. One-stop kit for replacing a turbocharger hose system.
Molded design. Helps deliver a precise hose route and fit.
Includes T-bolt clamps. Comes with two clamps for a complete install.
Cross-references Gates 26229, 52027990 and 52027990AB for the same application. See all 3.
Gates 26229 Turbocharger Hose Kit
Gates 26229 is a molded turbocharger hose kit for replacing the hot-side pipe-to-intercooler hose on select Dodge Ram diesel applications. It is built as a complete hose-system replacement solution for 1994-2002 Dodge Ram 2500 and Ram 3500 trucks, with OE-improved construction aimed at restoring proper boost-air routing and sealing.
Key Features
- Molded turbocharger hose kit for the hot-side pipe to intercooler connection
- Fits 1994-2002 Dodge Ram 2500, Pipe to Intercooler (Hot Side)
- Fits 1994-2002 Dodge Ram 3500, Pipe to Intercooler (Hot Side)
- Inside diameters: 2.95 in. (75 mm) and 3.62 in. (92 mm)
- Centerline length: 5.87 in. (149 mm)
- Includes 2 T-bolt clamps with 0.75 in. band width
- Clamp torque specification: 75 in/lbs
- OE Improved comparison rating
Product Details
Built for turbocharged diesel truck service, Gates Turbocharger Hose Kits (Molded) provide a direct replacement approach when the full hose assembly needs attention. Part number 26229 is shaped for the hot-side pipe-to-intercooler route and uses molded construction to match the application geometry more closely than a generic straight hose. For Dodge Ram 2500 and Dodge Ram 3500 trucks in the listed years, this hose kit supports a cleaner, more complete repair of the charge-air path. Gates 26229 is also referenced by OE-style interchange number 52027990AB for the same application.
Common Repair Reasons
- Boost leaks at the turbocharger hose connection
- Cracked, swollen, or oil-soaked charge-air hose material
- Loose or uneven sealing at the pipe-to-intercooler joint
- Reduced turbo response caused by damaged hot-side plumbing
- Air loss in the intercooler hose system on Dodge Ram 2500 and Ram 3500 trucks
Installation Notes
Verify the hose routing, inside diameters, and clamp ranges before installation. The clamp specifications for Gates 26229 are 3.125-3.4375 in. on one side and 3.75-4.0625 in. on the other, with a recommended torque of 75 in/lbs. Confirm the vehicle is a 1994-2002 Dodge Ram 2500 or 1994-2002 Dodge Ram 3500 at the pipe-to-intercooler (hot side) position before ordering.
Quality Assurance
Gates positions the Turbocharger Hose Kits (Molded) line as an OE-improved replacement solution, using application-specific molded construction to support long-term service in demanding turbocharger systems. Part number 26229 reflects that product-line approach for Dodge Ram diesel fitments.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2002 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2002 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2001 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2001 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2000 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 2000 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1999 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1999 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1998 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1998 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1997 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1997 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1996 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1996 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1995 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1995 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1994 | Dodge | Ram 2500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
| 1994 | Dodge | Ram 3500 | 5.9L | L6 | DIESEL | Pipe to Intercooler (Hot Side) | Turbocharger Hose Kits (Molded) |
