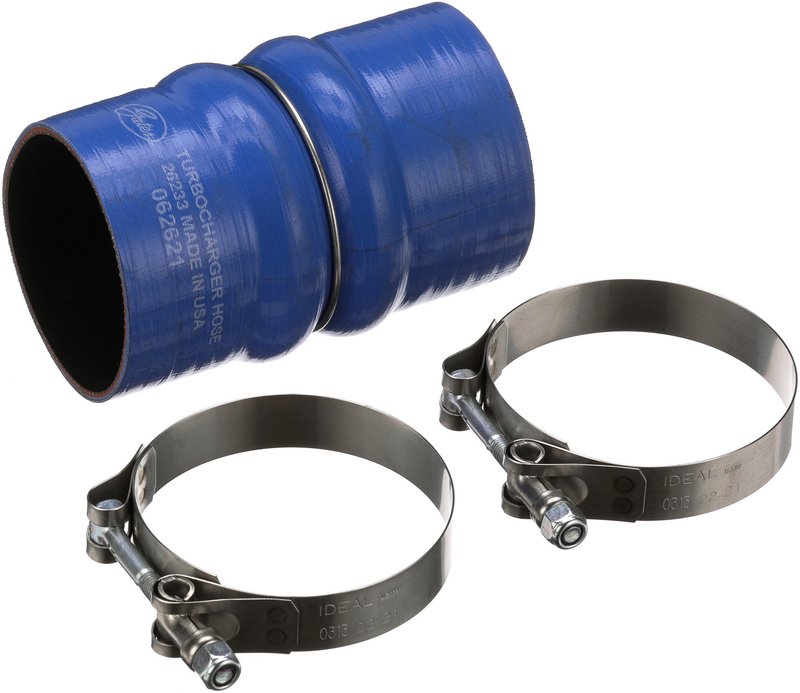

Gates 26233 Turbocharger Intercooler Hose Kit - Intercooler to Pipe (Cold Side)
Overview of Gates Turbocharger Hose Kit 26233
The Gates Turbocharger Hose Kit (Molded) part number 26233 is designed specifically for Dodge Ram 2500 and Ram 3500 models. This molded hose kit ensures reliable turbocharger performance by providing precise fitment and durable construction tailored to these heavy-duty trucks.
- Compatible with Dodge Ram 2500 and Ram 3500 models
- Centerline length of 130 mm (5.12 inches) for exact fit
- Inside diameter of 76 mm (3 inches) on both ends
- .25 in. - 28 male pipe thread bolt type for secure clamping
- .4375 in. hex-head nut type for easy installation
- Clamp band width of 19.1 mm (.75 inches) for strong sealing
- Clamping range between 79.5 mm (3.125 in) and 87.4 mm (3.4375 in)
- Recommended clamp torque of 75 in/lbs for optimal performance
Details on Gates Turbocharger Hose Kits (Molded) Product Line
The Turbocharger Hose Kits (Molded) line by Gates offers pre-formed hoses engineered to meet the exact specifications of turbocharged engines. This product line focuses on delivering consistent fitment and durability, reducing installation time and minimizing the risk of leaks or failures. Part number 26233 is a molded hose kit designed to maintain proper airflow and pressure in the turbo system of Dodge Ram 2500 and 3500 trucks.
Technical Description and Specifications
This turbocharger hose kit features a molded design with a centerline length of 130 mm (5.12 inches), ensuring a precise fit between turbocharger components. Both ends have an inside diameter of 76 mm (3 inches), suitable for the specified Dodge Ram models. The clamps use a .25 in. - 28 male pipe thread bolt type combined with a .4375 in. hex-head nut, providing secure and reliable fastening. The clamp band width measures 19.1 mm (.75 inches), with a clamping range from 79.5 mm (3.125 inches) to 87.4 mm (3.4375 inches), allowing for proper sealing and flexibility during installation. The recommended torque for the clamps is 75 in/lbs, ensuring optimal tightness without damaging the hose.
Common Applications and Problem Solving
- Replacement of worn or cracked turbocharger hoses on Dodge Ram 2500 and 3500
- Prevention of boost leaks that reduce engine performance
- Restoration of proper turbocharger airflow and pressure
- Addressing hose clamp failures or loose connections
- Maintaining turbo system integrity under high temperature and pressure conditions
Installation Notes and Tips
When installing the Gates Turbocharger Hose Kit 26233, ensure the clamps are positioned correctly over the hose ends and tightened to the recommended torque of 75 in/lbs. Avoid overtightening to prevent hose damage. Verify that the molded hose aligns properly with turbocharger components to maintain airflow efficiency. Inspect all connections for leaks after installation and periodically during vehicle operation.
Quality Assurance and Warranty
Gates manufactures the Turbocharger Hose Kits (Molded) line to meet stringent quality standards, ensuring durability and reliable performance in demanding turbocharged applications. This part is backed by Gates' quality assurance protocols. For warranty details, refer to Gates' official documentation or contact authorized distributors.
| Brand | Gates |
| Part Number | 26233 |
| Position | Turbocharger Hose Kits (Molded), Intercooler to Pipe (Cold Side) |
| 75 | |
| Bolt Type | .25 in. - 28 Male Pipe Thread |
| Centerline Length | 5.12 |
| Centerline Length | 130 |
| Centerline Length (in) | 5.12 |
| Centerline Length (mm) | 130 |
| Clamp 1 - Band Width (in) | .75 |
| Clamp 1 - Band Width (mm) | 19.1 |
| Clamp 1 - Bolt Type | .25 in. - 28 Male Pipe Thread |
| Clamp 1 - Clamping Range Max (in) | 3.4375 |
| Clamp 1 - Clamping Range Max (mm) | 87.4 |
| Clamp 1 - Clamping Range Min (in) | 3.125 |
| Clamp 1 - Clamping Range Min (mm) | 79.5 |
| Clamp 1 - Nut Type | .4375 in. Hex-Head |
| Clamp 1 - Recommended Torque (in/lbs) | 75 |
| Clamp 2 - Band Width (in) | .75 |
| Clamp 2 - Band Width (mm) | 19.1 |
| Clamp 2 - Bolt Type | .25 in. - 28 Male Pipe Thread |
| Clamp 2 - Clamping Range Max (in) | 3.4375 |
| Clamp 2 - Clamping Range Max (mm) | 87.4 |
| Clamp 2 - Clamping Range Min (in) | 3.125 |
| Clamp 2 - Clamping Range Min (mm) | 79.5 |
| Clamp 2 - Nut Type | .4375 in. Hex-Head |
| Clamp 2 - Recommended Torque (in/lbs) | 75 |
| Clamp Band Width | .75 |
| Clamp Band Width | 19.1 |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| End 1 Inside Diameter | 3 |
| End 1 Inside Diameter | 76 |
| End 2 Inside Diameter | 3 |
| End 2 Inside Diameter | 76 |
| Inside Diameter 1 (in) | 3 |
| Inside Diameter 1 (mm) | 76 |
| Inside Diameter 2 (in) | 3 |
| Inside Diameter 2 (mm) | 76 |
| Maximum Clamping Length | 3.4375 |
| Maximum Clamping Length | 87.4 |
| Minimum Clamping Length | 3.125 |
| Minimum Clamping Length | 79.5 |
| Number of Rings | 1 |
| Nut Type | .4375 in. Hex-Head |
| OE Comparison Rating | OE Improved |
| Ring Quantity | 1 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Ram | 2500 | 6.7L | L6 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2012 | Ram | 3500 | 6.7L | L6 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2011 | Ram | 2500 | 6.7L | L6 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2011 | Ram | 3500 | 6.7L | L6 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2010 | Dodge | Ram 2500 | 6.7L | L6 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2010 | Dodge | Ram 3500 | 6.7L | L6 | DIESEL | Intercooler to Pipe (Cold Side) | Turbocharger Hose Kits (Molded) |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
