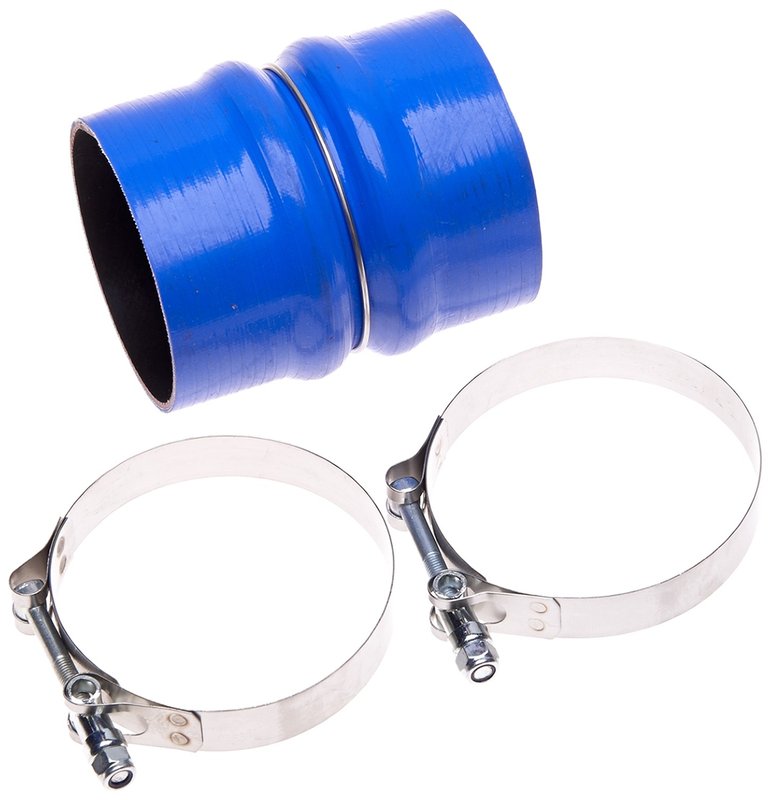

Gates 26234 Turbocharger Intercooler Hose Kit - Pipe to Engine (Cold Side)
Overview of Gates Turbocharger Hose Kit 26234
The Gates Turbocharger Hose Kit (Molded) part number 26234 is designed specifically for Dodge Ram 2500 and 3500 models. This molded hose kit ensures reliable turbocharger performance with precise fitment and durable construction.
- Compatible with Dodge Ram 2500 and Ram 3500 trucks
- Centerline length of 4.53 inches (115 mm) for accurate installation
- End inside diameters of 3.5 inches (89 mm) on both ends
- Clamp band width of 0.75 inches (19.1 mm) for secure connections
- Clamp bolt type: 0.25 in. - 28 male pipe thread with 0.4375 in. hex-head nuts
- Clamping range from 3.625 to 3.9375 inches (92.2 to 100.1 mm)
- Recommended clamp torque of 75 in/lbs for optimal sealing
- Includes one ring for proper hose retention
About the Turbocharger Hose Kits (Molded) Product Line
The Gates Turbocharger Hose Kits (Molded) product line offers molded hoses engineered to meet the specific requirements of turbocharged engines. These kits provide consistent dimensions and reliable sealing to maintain turbocharger efficiency and prevent boost leaks. The molded design ensures a precise fit and durability under high temperature and pressure conditions typical in Dodge Ram 2500 and 3500 applications.
Detailed Product Description
This Gates turbocharger hose kit features molded hoses with an inside diameter of 3.5 inches (89 mm) on both ends, designed to fit the turbocharger system of Dodge Ram 2500 and 3500 trucks. The centerline length of 4.53 inches (115 mm) allows for proper routing and connection between turbocharger components. The included clamps have a band width of 0.75 inches (19.1 mm) and use a 0.25 inch - 28 male pipe thread bolt with a 0.4375 inch hex-head nut, providing a secure and adjustable clamping range from 3.625 to 3.9375 inches (92.2 to 100.1 mm). The recommended torque of 75 in/lbs ensures a tight seal to prevent air leaks and maintain turbocharger performance.
Common Applications and Issues Addressed
- Replacement of worn or cracked turbocharger hoses on Dodge Ram 2500 and 3500
- Elimination of boost leaks caused by damaged or loose hose connections
- Restoration of proper turbocharger airflow and pressure
- Prevention of engine performance loss due to faulty turbocharger hose components
- Maintenance of turbocharger system integrity under high temperature and pressure
Installation Notes and Tips
Ensure the turbocharger system is cool before installation to avoid injury. Verify that the hose ends and clamps match the specified inside diameters and clamping ranges. Use the recommended torque of 75 in/lbs on clamp nuts to achieve a secure seal without over-tightening. Inspect mating surfaces for debris or damage before assembly. Properly align the hose to avoid kinks or stress points that could reduce hose life.
Quality Assurance and Warranty
Gates manufactures this Turbocharger Hose Kit (Molded) to meet OEM specifications for durability and performance. The part number 26234 undergoes rigorous quality control to ensure fitment and function for Dodge Ram 2500 and 3500 models. While specific warranty details are not provided here, Gates typically offers coverage against manufacturing defects. Consult product documentation or Gates directly for warranty terms.
| Brand | Gates |
| Part Number | 26234 |
| Position | Turbocharger Hose Kits (Molded), Pipe to Engine (Cold Side) |
| 75 | |
| Bolt Type | .25 in. - 28 Male Pipe Thread |
| Centerline Length | 4.53 |
| Centerline Length | 115 |
| Centerline Length (in) | 4.53 |
| Centerline Length (mm) | 115 |
| Clamp 1 - Band Width (in) | .75 |
| Clamp 1 - Band Width (mm) | 19.1 |
| Clamp 1 - Bolt Type | .25 in. - 28 Male Pipe Thread |
| Clamp 1 - Clamping Range Max (in) | 3.9375 |
| Clamp 1 - Clamping Range Max (mm) | 100.1 |
| Clamp 1 - Clamping Range Min (in) | 3.625 |
| Clamp 1 - Clamping Range Min (mm) | 92.2 |
| Clamp 1 - Nut Type | .4375 in. Hex-Head |
| Clamp 1 - Recommended Torque (in/lbs) | 75 |
| Clamp 2 - Band Width (in) | .75 |
| Clamp 2 - Band Width (mm) | 19.1 |
| Clamp 2 - Bolt Type | .25 in. - 28 Male Pipe Thread |
| Clamp 2 - Clamping Range Max (in) | 3.9375 |
| Clamp 2 - Clamping Range Max (mm) | 100.1 |
| Clamp 2 - Clamping Range Min (in) | 3.625 |
| Clamp 2 - Clamping Range Min (mm) | 92.2 |
| Clamp 2 - Nut Type | .4375 in. Hex-Head |
| Clamp 2 - Recommended Torque (in/lbs) | 75 |
| Clamp Band Width | .75 |
| Clamp Band Width | 19.1 |
| Contents | 1 Turbocharger Hose, 2 T-Bolt Clamps |
| End 1 Inside Diameter | 3.5 |
| End 1 Inside Diameter | 89 |
| End 2 Inside Diameter | 3.5 |
| End 2 Inside Diameter | 89 |
| Inside Diameter 1 (in) | 3.5 |
| Inside Diameter 1 (mm) | 89 |
| Inside Diameter 2 (in) | 3.5 |
| Inside Diameter 2 (mm) | 89 |
| Maximum Clamping Length | 3.9375 |
| Maximum Clamping Length | 100.1 |
| Minimum Clamping Length | 3.625 |
| Minimum Clamping Length | 92.2 |
| Number of Rings | 1 |
| Nut Type | .4375 in. Hex-Head |
| OE Comparison Rating | OE Improved |
| Ring Quantity | 1 |
This part fits 6 vehicles. Search below:
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Ram | 2500 | 6.7L | L6 | DIESEL | Pipe to Engine (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2012 | Ram | 3500 | 6.7L | L6 | DIESEL | Pipe to Engine (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2011 | Ram | 2500 | 6.7L | L6 | DIESEL | Pipe to Engine (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2011 | Ram | 3500 | 6.7L | L6 | DIESEL | Pipe to Engine (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2010 | Dodge | Ram 2500 | 6.7L | L6 | DIESEL | Pipe to Engine (Cold Side) | Turbocharger Hose Kits (Molded) |
| 2010 | Dodge | Ram 3500 | 6.7L | L6 | DIESEL | Pipe to Engine (Cold Side) | Turbocharger Hose Kits (Molded) |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
