Gates 28461 HVAC Heater Hose

90 Degree Molded Heater Hose for Tight Bends

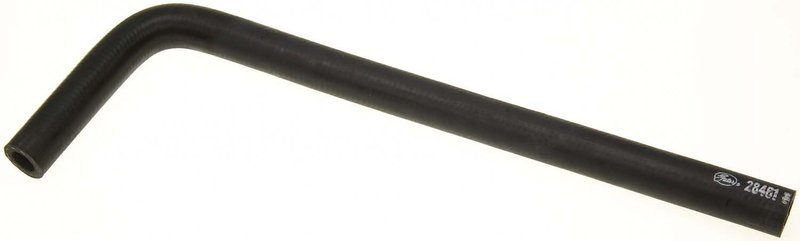

Gates 28461 is a 90 degree molded heater hose built for coolant and HVAC routing where a sharp bend is required. With EPDM construction and a molded shape, it helps replace formed hoses in applications that need a clean 90 degree turn without forcing the hose to kink.

This 90 Degree Molded Heater Hose line is offered in multiple sizes to cover a wide range of vehicle heater and coolant routing needs. Gates 28461 is sized at 1/2 in. inside diameter on both ends, with a 90 degree angle, 16 in. centerline length, and 4 in. / 12 in. arm lengths.

• Brand: Gates
• Part number: 28461
• 90 degree molded heater hose for sharp-bend routing
• EPDM material for heater and coolant service
• 1/2 in. inside diameter at both ends
• 16 in. centerline length with molded 90 degree shape
• Arm lengths: 4 in. and 12 in.
• Direct replacement style for select HVAC and coolant hose applications

Application Details and Fitment

Gates 28461 is used in radiator and HVAC compatible coolant and heater hose routing on select vehicles, including Suzuki XL-7, Suzuki Grand Vitara, Chevrolet Tracker, Mazda Millenia, Toyota Land Cruiser, and Toyota 4Runner. It also appears in applications such as pipe-to-water-pump, reservoir-to-thermostat, valve-to-intake-manifold, and throttle-body-to-intake-manifold routing. This part cross-references Dayco 80394 for the same application.

• Fits 2002-2006 Suzuki XL-7, Pipe-1 To Water Pump
• Fits 1999-2005 Suzuki Grand Vitara, Pipe-1 To Water Pump
• Fits 2001-2004 Chevrolet Tracker, Pipe-1 To Water Pump
• Fits 2004 Suzuki Vitara, Pipe-1 To Water Pump
• Fits 1995-2002 Mazda Millenia, Reservoir To Thermostat
• Fits 1989-1995 Suzuki Samurai, Valve To Intake Manifold
• Fits 1993-1994 Geo Metro, N/A
• Fits 1994 Pontiac Firefly, N/A
• Fits 1987-1990 Chevrolet P30, Throttle Body To Intake Manifold, Exc. Motor Home; Cut to fit
• Fits 1987-1990 GMC P3500, Throttle Body To Intake Manifold, Exc. Motor Home; Cut to fit
• Fits 1988-1989 Isuzu Impulse, Pipe-2 To Intake Manifold
• Fits 1979-1987 Toyota Land Cruiser, Pipe To Auxiliary Heater Pipe-1
• Fits 1984 Toyota 4Runner, Tee-1 To Auxiliary Heater Pipe-1
• Fits 1984 Toyota Pickup, Tee-1 To Auxiliary Heater Pipe-1
• Fits 1980-1982 Nissan 210, Valve To Engine

What This Hose Helps Solve

• Replaces a heater hose that must make a tight 90 degree turn
• Addresses cracked, hardened, or leaking coolant hose sections
• Helps restore proper coolant flow in heater and HVAC circuits
• Supports routing where a straight hose would kink or collapse
• Provides a formed replacement for select OE-style hose paths on Suzuki, Chevrolet, Mazda, and Toyota applications

Installation Notes and Tips

Verify inside diameter, centerline length, and arm lengths before installation. Gates 28461 is a molded hose, so confirm the routing path matches the 90 degree shape and the vehicle-specific connection points listed above. On applications marked cut to fit, trim only as needed and check clearance around nearby components before final clamp-up.

Quality Assurance

Gates manufactures this hose in EPDM for heater and coolant service, with molded construction intended to maintain the required bend shape in demanding routing locations. The Gates 90 Degree Molded Heater Hose line is offered in 38 sizes to cover thousands of vehicle applications.
