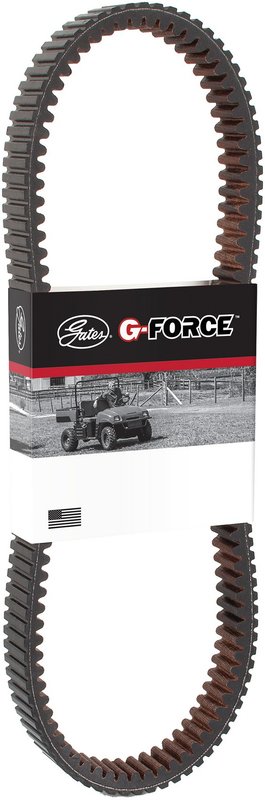

Gates 30G3750 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt
| Brand | Gates 30G3750 |
|---|---|
| Position | Drive Belt |
| Top Width | 1.313 |
| Top Width | 33 |
| Construction | Double notched |
| Color | Black |
| Cord Material | Aramid |
| Cross Section Designation | Rvs-r |
| Outside Circumference | 38.625 |
| Outside Circumference | 981 |
| Type | Power sport cvt belt |
| Belt Material | Chloroprene |
| Angle | 26 |
| 9837 | Yes |
| Angle | 26 |
| Belt Material | Chloroprene |
| Color | Black |
| Construction | Double notched |
| Cord Material | Aramid |
| Fabric Bottom | Yes |
| Notched | Yes |
| OE Comparison Rating | Oe performance |
| Outside Circumference (in) | 38.625 |
| Outside Circumference (mm) | 981 |
| Section | Rvs-r |
| Top Width (in) | 1.313 |
| Top Width (mm) | 33 |
| Type | Power sport cvt belt |
| Fits | — |
OE performance rating. Built to match original-equipment expectations.
Double-notched construction. Helps the belt flex smoothly under demanding use.
Aramid cord material. Adds strength for tough CVT operation.
Cross-references Dayco HPX2236, Dayco XTX2236 and Gates 30C3750 for the same application. See all 19.
Gates G-Force CVT Belt for Power Sport Use
The Gates G-Force CVT Belt, part number 30G3750, is a power sport CVT belt built for demanding trail and work use. It is engineered for vehicles with engines under 800cc and uses an aramid cord construction to support consistent transmission performance under load.
Gates G-Force WorkHorse CVT belts are part of the G-Force line focused on hard-use applications. This 30G3750 belt features a double-notched design, chloroprene belt material, and an OE performance rating for drivers who need a replacement CVT belt with factory-style dimensions and construction.
Key Features
- Part number 30G3750
- Power sport CVT belt for automatic continuously variable transmissions
- Optimized for vehicles with engines less than 800cc
- Aramid cord material for strength and load handling
- Double-notched construction with fabric bottom
- Chloroprene belt material and black finish
- OE performance rating
- Top width: 1.313 in. (33 mm)
- Outside circumference: 38.625 in. (981 mm)
- Section: RVS-R, angle: 26
Detailed Description
The Gates 30G3750 CVT belt is built for automatic CVT systems in power sport vehicles that see frequent throttle changes, trail conditions, and working loads. Its 1.313-inch top width, 38.625-inch outside circumference, and RVS-R section help maintain the correct belt profile for the application. If you are replacing a worn CVT belt on a Honda Pioneer, Polaris Ranger, or similar side-by-side application, this Gates belt provides a direct-fit replacement option when the original belt size matches these specifications.
This part cross-references Dayco HPX2236 and XTX2236 for the same application.
What It Helps Address
- Belt slip under acceleration or load
- Loss of CVT engagement consistency
- Noise from a worn or glazed belt
- Reduced drivability from belt wear or stretching
- Transmission performance issues caused by incorrect belt dimensions
Installation Notes and Tips
Verify the belt dimensions, section, and CVT system requirements before installation. Match the 1.313-inch top width, 38.625-inch outside circumference, and RVS-R profile to the original specification for the vehicle. Inspect pulleys and clutch surfaces for wear, contamination, or damage before installing the new belt, and confirm the belt tracks correctly after installation.
Quality Assurance
Gates manufactures the G-Force WorkHorse line for demanding power sport use, with materials and construction selected to support OE-style performance in CVT applications. Part number 30G3750 is built to Gates dimensional and material standards for replacement service.
