Gates 31R4573 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

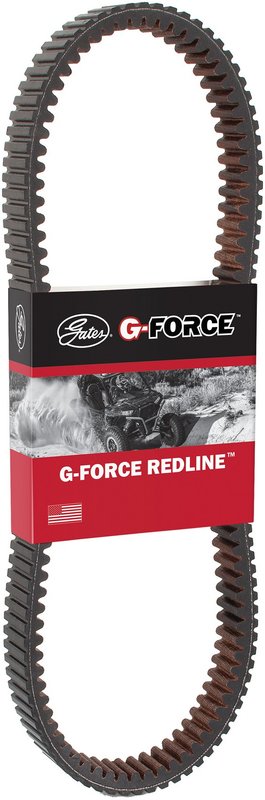

Gates G-Force RedLine CVT Belt 31R4573

The Gates G-Force RedLine CVT Belt 31R4573 is a high-performance automatic continuously variable transmission belt built for powersport and specialty applications. Its double-notched construction, aramid cord reinforcement, and EPDM belt material are engineered to reduce speed-ratio and energy loss in demanding off-road use.

Key Features

• Part number 31R4573 from Gates G-Force RedLine CVT Belts
• Power Sport Specialty High Performance CVT Belt
• Double-notched construction for improved flexibility
• Aramid cord material for added reinforcement
• EPDM belt material with black finish
• RVS-R cross section designation
• Top width: 1.307 in. (33 mm)
• Thickness: 0.472 in. (12 mm)
• Outside circumference: 46.902 in. (1191 mm)
• Pitch width: 1.23 in. (31.3 mm)
• Pitch length: 45.728 in. (1161.5 mm)
• 26-degree angle

Product Details

Gates positions the G-Force RedLine line as a new generation of CVT belts for demanding use, with a focus on stronger acceleration response, higher top-speed potential, and reduced energy loss in extreme off-road conditions. The 31R4573 uses a double-notched profile and fabric bottom construction to support consistent belt behavior under load. For shoppers comparing CVT belt replacements for powersport and specialty drivetrains, this Gates 31R4573 belt is a direct part-number reference to keep on hand during service.

This part cross-references Dayco HPX2249 for the same application.

Common Issues This Belt Can Address

• Slipping or inconsistent CVT engagement
• Loss of acceleration response under load
• Reduced top-speed performance from belt wear
• Heat-related belt degradation in off-road use
• Drive ratio inconsistency during hard acceleration

Installation Notes

Verify belt dimensions, section designation, and CVT system requirements before installation. Match the 31R4573 to the correct application by outside circumference, pitch length, top width, and angle. Inspect pulleys, clutch surfaces, and belt alignment during service so the new belt seats correctly and wears evenly. For vehicle-specific searches, use terms such as Gates 31R4573 CVT belt, G-Force RedLine belt replacement, and powersport CVT belt for off-road applications.

Quality Assurance

Gates manufactures the G-Force RedLine CVT Belt line with reinforced materials and OE-improved design intent for performance-focused CVT systems. The 31R4573 is built to Gates dimensional specifications for consistent replacement selection.
