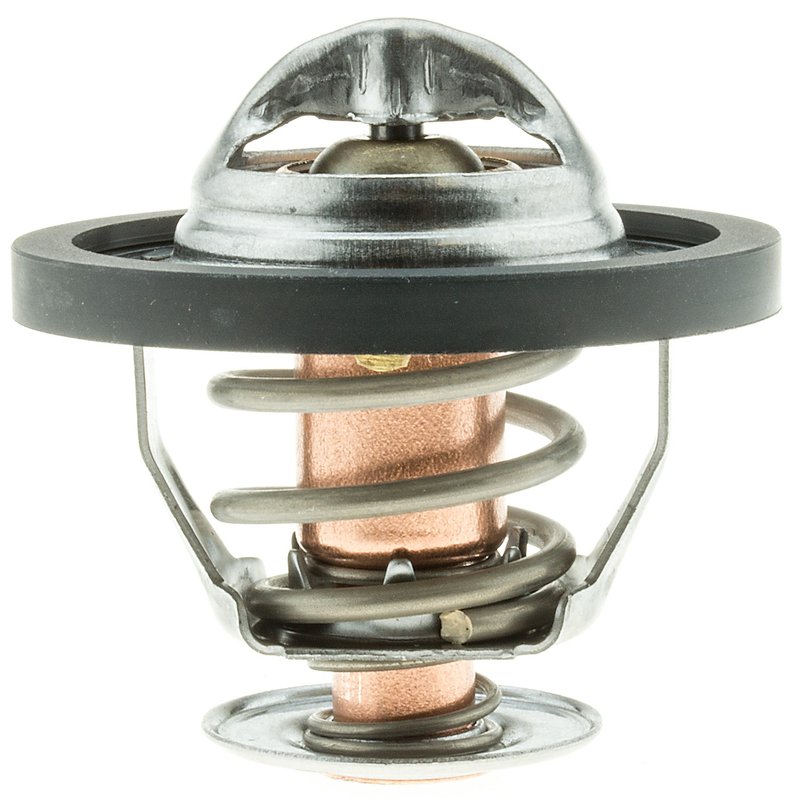

Gates 33944 Engine Coolant Thermostat
| Brand | Gates 33944 |
|---|---|
| .74 | |
| 1 | |
| 1 | |
| 1.12 | |
| By-Pass Flange Diameter (in) | 1.12 |
| Design | Bottom By-Pass |
| Design | Bottom By-Pass |
| Gasket Quantity | 0 |
| Height | 2.13 |
| Height Between Flanges | 1.39 |
| Height from Flange (in) | .74 |
| Includes Installation Tool | No |
| Installation Tool Included | No |
| Jiggle Pin Weep Hole | Yes |
| Material | Steel, Copper |
| Material | Steel, Copper |
| Number of Gaskets | 0 |
| Number of Jiggle Pins/Check Valves | 1 |
| Number of Seals | 1 |
| OE Comparison Rating | OE Performance |
| Seal Type | O-Ring |
| Sealing Flange Outside Diameter | 1.89 |
| Start to Open Temperature | 77 |
| Start to Open Temperature | 170 |
| Type | OE Type Thermostat |
| Product line | OE Type Thermostat |
| Fits | Nissan · 7 vehicles |
OE type thermostat. Provides precise temperature control with OEM-equivalent fit.
Steel and copper construction. Built with an O-ring seal for dependable leak resistance.
Bottom by-pass design. Supports efficient coolant flow and stable operation.
Cross-references Four Seasons 44170, Gates 33944 and Motorad 441-170 for the same application. See all 9.
OE Type Thermostat for Nissan Sentra
Gates 33944 is an OE Type Engine Coolant Thermostat built for precise temperature control and a leak-resistant OEM-equivalent fit. It is a direct replacement for 2000-2006 Nissan Sentra applications with a 170-degree opening temperature and OE-style sealing.
Key Features
- OE Type thermostat for factory-style cooling system operation
- Start to open temperature: 170°F / 77°C
- Bottom by-pass design for the listed application
- Steel and copper construction
- O-ring seal type with one seal and one jiggle pin/weep hole
- OE Performance comparison rating
- Gates part number 33944
Product Details
Gates OE Type Thermostat 33944 is engineered for drivers who need stable coolant flow and accurate engine warm-up control. In 2000-2006 Nissan Sentra cooling systems, this thermostat helps maintain the proper operating range by regulating when coolant begins to circulate through the radiator. The bottom by-pass design, O-ring seal, and OE-style dimensions support a factory-like fit in the specified application. This part cross-references Motorad 441-170 for the same application.
What It Helps Address
- Engine running too cool or taking too long to reach operating temperature
- Temperature fluctuation caused by a worn thermostat
- Coolant seepage at the thermostat sealing surface
- Improper coolant flow control in the cooling system
- Check-engine concerns related to thermostat performance
Installation Notes
Compatible With 2000-2006 Nissan Sentra, N/A. Verify the 170-degree specification, bottom by-pass layout, and sealing dimensions before installation. Clean the housing mating surfaces thoroughly and replace the thermostat only after the cooling system has cooled completely. Gates 33944 uses an O-ring seal and does not include an installation tool.
Quality Assurance
Gates OE Type Thermostats are built to deliver precise temperature control and OEM-equivalent fit for the listed application. Gates 33944 is a direct-fit cooling system replacement for Nissan Sentra models in the stated year range.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Nissan | Sentra | 1.8L | L4 | GAS | N/A | 170 Degree; OE Temperature; Seal included; OE Type Thermostat |
| 2005 | Nissan | Sentra | 1.8L | L4 | GAS | N/A | 170 Degree; OE Temperature; Seal included; OE Type Thermostat |
| 2004 | Nissan | Sentra | 1.8L | L4 | GAS | N/A | 170 Degree; OE Temperature; Seal included; OE Type Thermostat |
| 2003 | Nissan | Sentra | 1.8L | L4 | GAS | N/A | 170 Degree; OE Temperature; Seal included; OE Type Thermostat |
| 2002 | Nissan | Sentra | 1.8L | L4 | GAS | N/A | 170 Degree; OE Temperature; Seal included; OE Type Thermostat |
| 2001 | Nissan | Sentra | 1.8L | L4 | GAS | N/A | 170 Degree; OE Temperature; Seal included; OE Type Thermostat |
| 2000 | Nissan | Sentra | 1.8L | L4 | GAS | N/A | 170 Degree; OE Temperature; Seal included; OE Type Thermostat |
