Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

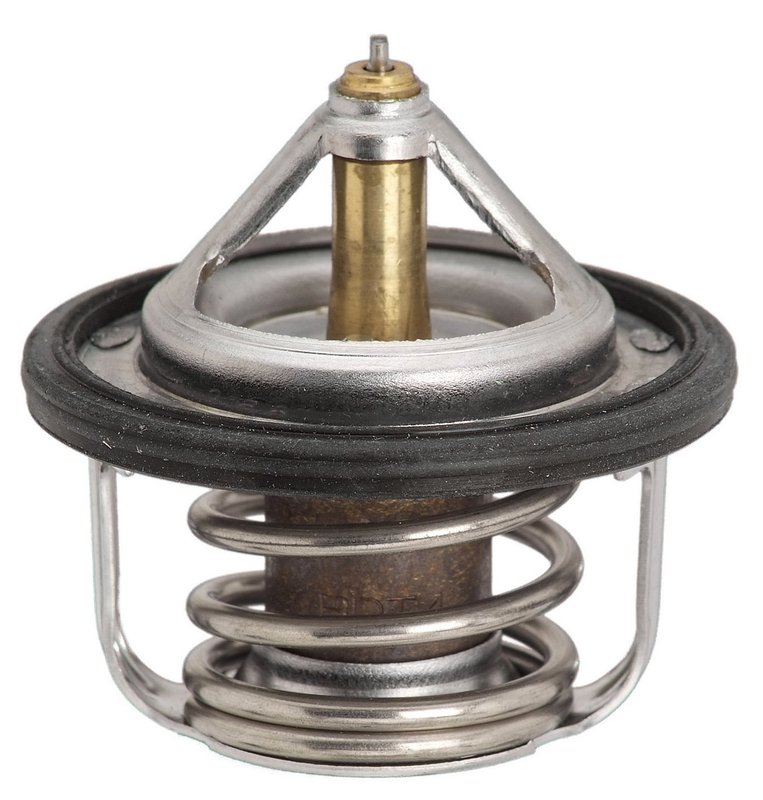

Gates 34022 Engine Coolant Thermostat
| Brand | Gates 34022 |
|---|---|
| 1 | |
| 1 | |
| 1.03 | |
| Design | Reverse Poppet |
| Design | Reverse Poppet |
| Gasket Quantity | 0 |
| Height | 2.04 |
| Height Between Flanges | 1.01 |
| Height from Flange (in) | 1.03 |
| Includes Installation Tool | No |
| Installation Tool Included | No |
| Jiggle Pin Weep Hole | Yes |
| Material | Steel, Copper |
| Material | Steel, Copper |
| Number of Gaskets | 0 |
| Number of Jiggle Pins/Check Valves | 1 |
| Number of Seals | 1 |
| Seal Type | O-Ring |
| Sealing Flange Outside Diameter | 1.89 |
| Start to Open Temperature | 77 |
| Start to Open Temperature | 170 |
| Type | OE Exact Thermostat |
| Product line | OE Exact Thermostat |
| Fits | Subaru |
OE exact thermostat. Matches OEM fit, function, and design for a direct replacement.
Reverse poppet design. Promotes precise coolant flow and dependable temperature control.
Steel and copper construction. Built with an O-ring seal and jiggle pin weep hole.
Cross-references AP Exhaust 48597, Gates 34022 and Gates 38597 for the same application. See all 5.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
OE Exact Thermostat for Precise Cooling Control
The Gates OE Exact Thermostat 34022 is an engine coolant thermostat built to match OEM fit, function, and design. It uses a reverse poppet design with steel and copper construction, plus an O-ring seal for a direct replacement in the cooling system.
Compatible With Honda Civic and other applications that call for this thermostat design, the Gates 34022 supports accurate coolant flow control and consistent operating temperature.
Key Features
- OE Exact Thermostat line from Gates for OEM-style replacement fit and function
- Reverse poppet design for the specified cooling system application
- Steel and copper construction
- Start to open temperature: 170°F / 77°C
- O-ring seal type with one jiggle pin / check valve
- Sealing flange outside diameter: 1.89 in.
- Height: 2.04 in.; height between flanges: 1.01 in.
Product Details
Gates 34022 is an engine coolant thermostat designed for drivers and technicians who need an exact OEM-style replacement rather than a universal part. The OE Exact Thermostat line focuses on matching the original thermostat’s fit, function, and design, which is important for maintaining proper coolant regulation in vehicles such as Honda Civic applications that specify this configuration. The Gates 34022 thermostat opens at 170°F (77°C) and uses a reverse poppet layout with an O-ring seal to support a secure installation in the cooling circuit.
This part cross-references AP Exhaust 48597 for the same application.
Common Cooling System Issues It Can Address
- Engine running too cool or too warm due to thermostat wear
- Delayed warm-up after cold starts
- Temperature fluctuation from a sticking thermostat
- Coolant flow control problems caused by a failing thermostat assembly
- Replacement needs during cooling system service on Honda Civic and similar applications
Installation Notes and Tips
Verify the thermostat housing style, flange dimensions, and opening temperature before installation. Clean the sealing surfaces thoroughly and replace the O-ring seal during service. No installation tool is included. Confirm the reverse poppet design and 170°F opening specification match the vehicle’s original thermostat requirements before final assembly.
Quality Assurance
Gates OE Exact Thermostat parts are built to match OEM product fit, function, and design for direct replacement use. Part number 34022 is engineered for applications that require the specified thermostat geometry and temperature rating.
