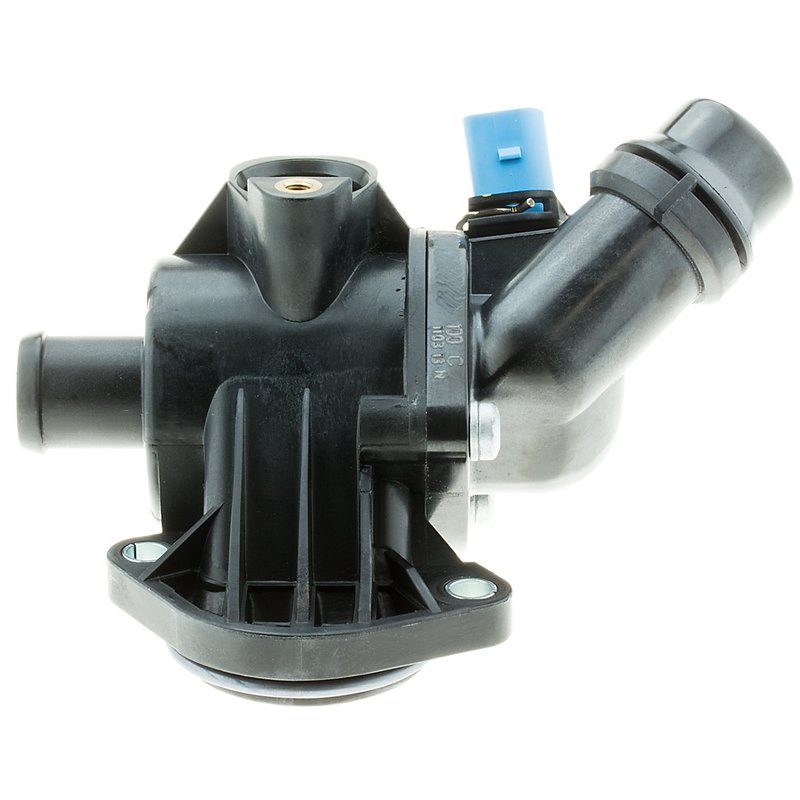

Gates 34047 Engine Coolant Thermostat
| Brand | Gates 34047 |
|---|---|
| 1 | |
| Bolt Hole Quantity | 3 |
| Check Valve | No |
| Electric | Yes |
| Electric | Yes |
| Jiggle Pin Weep Hole | No |
| Jiggle Pin/Check Valve | No |
| Number of Bolt Holes | 3 |
| Number of Jiggle Pins/Check Valves | 0 |
| Number of Seals | 1 |
| OE Comparison Rating | OE Exact |
| OE Exact | Yes |
| Outlet Inside Diameter | .765 |
| Outlet Inside Diameter | 1 |
| Outlet Inside Diameter 1 (in) | .765 |
| Outlet Inside Diameter 2 (in) | 1 |
| Outlet Inside Diameter 3 (in) | 1 |
| Outlet Outside Diameter | .983 |
| Outlet Outside Diameter | 1.275 |
| Outlet Outside Diameter 1 (in) | .983 |
| Outlet Outside Diameter 3 (in) | 1.275 |
| Start to Open Temperature | 100 |
| Start to Open Temperature | 212 |
| Temperature (C) | 100 |
| Type | Integrated Housing Thermostat |
| Product line | Integrated Housing Thermostat |
| Fits | Audi · 9 vehicles |
OE exact replacement. Integrated housing thermostat matches OE specifications for a direct fit.
Accurate temperature control. Helps engines operate more efficiently by regulating coolant temperature.
Electric operation. Built with an electric thermostat design and a single seal.
Cross-references AP Exhaust 38732, Dorman - Conduct-Tite 85960 and Dorman - OE Solutions 902-814 for the same application. See all 10.
Integrated Thermostat Housing for Audi Cooling Control
Gates 34047 is an integrated housing thermostat built for precise engine coolant temperature regulation. It is an OE Exact replacement for select Audi A4 and Audi A4 Quattro applications, with fitment for 2002-2006 Audi A4 and 2002-2005 Audi A4 Quattro.
Key Features
- Integrated Housing Thermostat design for direct replacement service
- OE Exact comparison rating for OE-style fit and function
- Electric thermostat configuration
- Start-to-open temperature: 100°C / 212°F
- Three bolt holes for mounting
- Single seal design
- No jiggle pin weep hole and no check valve
- Outlet dimensions: 0.765 in and 1 in inside diameter; 0.983 in and 1.275 in outside diameter
Product Details
The Gates Integrated Housing Thermostat line focuses on accurate coolant temperature control in vehicles that use an integrated thermostat housing assembly. Gates 34047 is engineered as an OE Exact replacement and follows the original temperature specification for the listed Audi applications. This part cross-references Dorman - OE Solutions 902-814 for the same application.
What It Helps Address
- Engine running too cool or too hot
- Delayed warm-up after cold starts
- Temperature fluctuation during normal driving
- Cooling system performance issues tied to thermostat wear
- Replacement needs for an integrated thermostat housing assembly
Installation Notes
Verify the vehicle’s thermostat housing style, electrical connection, outlet dimensions, and bolt-hole pattern before installation. This part is listed for 2002-2006 Audi A4 and 2002-2005 Audi A4 Quattro, position N/A, with OE temperature specification and seal included per fitment notes. Confirm coolant system condition and inspect mating surfaces before reassembly.
Quality Assurance
Gates develops aftermarket thermostat solutions for integrated housing applications, with product engineering focused on OE-style temperature control and application-specific fitment for Audi cooling systems.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2006 | Audi | A4 | 1.8L | L4 | GAS | N/A | 202 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2005 | Audi | A4 | 1.8L | L4 | GAS | N/A | 202 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2005 | Audi | A4 Quattro | 1.8L | L4 | GAS | N/A | 202 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2004 | Audi | A4 | 1.8L | L4 | GAS | N/A | 202 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2004 | Audi | A4 Quattro | 1.8L | L4 | GAS | N/A | 202 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2003 | Audi | A4 | 1.8L | L4 | GAS | N/A | 202 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2003 | Audi | A4 Quattro | 1.8L | L4 | GAS | N/A | 202 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2002 | Audi | A4 | 1.8L | L4 | GAS | N/A | 202 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2002 | Audi | A4 Quattro | 1.8L | L4 | GAS | N/A | 202 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
