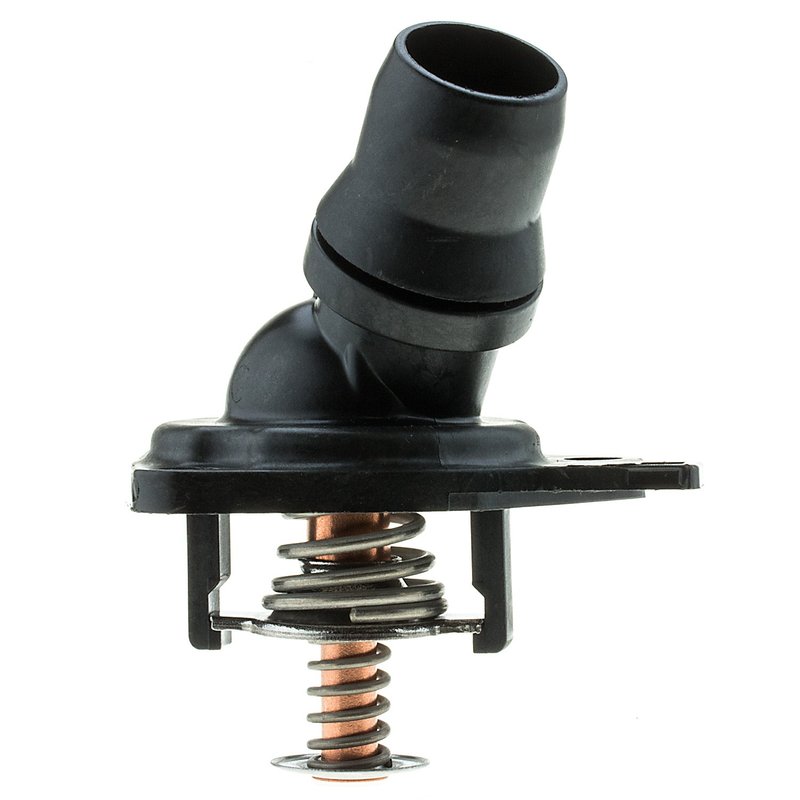

Gates 34050 Engine Coolant Thermostat
OE Quality 60-Day Returns
Gates
 Integrated Housing Thermostat

Gates 34050 Engine Coolant Thermostat

Brand Gates 34050
1
Bolt Hole Quantity 3
Check Valve No
Electric No
Electric No
Jiggle Pin Weep Hole Yes
Jiggle Pin/Check Valve Yes
Number of Bolt Holes 3
Number of Jiggle Pins/Check Valves 1
Number of Seals 1
OE Comparison Rating OE Performance
OE Exact No
Outlet Inside Diameter .971
Outlet Inside Diameter 1 (in) .971
Outlet Outside Diameter 1.275
Outlet Outside Diameter 1 (in) 1.275
Start to Open Temperature 77
Start to Open Temperature 170
Temperature (C) 77
Type Integrated Housing Thermostat
Product line Integrated Housing Thermostat
Fits Honda and Acura · 30 vehicles

Integrated housing design. Combines the thermostat and housing for a simpler replacement.

OE performance rating. Matches original-equipment standards for dependable temperature control.

Jiggle pin weep hole. Helps vent trapped air for smoother coolant flow.

Cross-references Four Seasons 86017, Gates 34050 and Gates 38767 for the same application. See all 9.

$71.01Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $71.01
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Engine Coolant Thermostat options

Gates 34050 Integrated Housing Thermostat

The Gates 34050 integrated housing thermostat is built for precise engine coolant temperature control in vehicles that use an integrated thermostat housing design. It supports stable operating temperature for Honda Accord, Honda Element, Honda Insight, Honda Crosstour, and Acura TSX applications listed below.

Key Features

  • Integrated Housing Thermostat design for OE-style cooling system service
  • Start to open temperature: 170°F / 77°C
  • Jiggle pin weep hole: Yes
  • Jiggle pin/check valve: Yes
  • 3 bolt holes for housing mounting
  • Outlet inside diameter: 0.971 in
  • Outlet outside diameter: 1.275 in
  • OE Performance rating
  • Non-electric thermostat construction
  • Includes 1 seal

Product Details

Gates Integrated Housing Thermostat line focuses on accurate temperature regulation in modern cooling systems that use a thermostat and housing assembly together. The Gates 34050 is an OE-performance engine coolant thermostat that opens at 170°F (77°C) and uses an integrated housing layout to match the cooling system architecture found on select Honda and Acura vehicles. This part number is also referenced as Gates 34050 and is cross-referenced by MAHLE 55470 for the same application.

Compatible With 2003-2007 Honda Accord, 2003-2011 Honda Element, 2010 Honda Insight, 2008-2012 Honda Accord, 2009-2014 Acura TSX, and 2012-2015 Honda Crosstour. The Gates 34050 is a direct-fit cooling system service part for drivers searching for a Honda Accord thermostat housing, Acura TSX engine coolant thermostat, or Honda Element integrated thermostat housing replacement.

What It Helps Address

  • Engine running too cool or too hot due to thermostat control issues
  • Temperature fluctuation during warm-up and normal driving
  • Cooling system service needs on integrated thermostat housing designs
  • Check engine concerns related to coolant temperature regulation
  • Replacement needs for worn thermostat seals or housing-related service points

Installation Notes

Verify the outlet dimensions, bolt-hole count, and temperature rating before installation. This thermostat uses a 3-bolt integrated housing layout and a single seal, so the replacement should match the vehicle’s original cooling system configuration. Confirm fitment by year, make, and model before ordering, especially on Honda Accord, Honda Element, Honda Insight, Honda Crosstour, and Acura TSX applications.

Quality Assurance

Gates develops aftermarket thermostat solutions for integrated housing systems with OE-performance positioning and application-specific temperature control. The 34050 is engineered as an alternative to OE dealership replacement for the listed vehicles.

Related reading

This part fits 30 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelLitersCylindersFuel TypePositionNotes
2015HondaCrosstour2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2014AcuraTSX2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2014HondaCrosstour2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2013AcuraTSX2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2013HondaCrosstour2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2012AcuraTSX2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2012HondaAccord2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2012HondaCrosstour2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2011AcuraTSX2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2011HondaAccord2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2011HondaElement2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2010AcuraTSX2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2010HondaAccord2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2010HondaElement2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2010HondaInsight1.3LL4ELECTRIC/GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2009AcuraTSX2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2009HondaAccord2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2009HondaElement2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2008HondaAccord2.4LL4GASN/AAlternate Design; 172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2008HondaElement2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2007HondaAccord2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2007HondaElement2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2006HondaAccord2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2006HondaElement2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2005HondaAccord2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2005HondaElement2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2004HondaAccord2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2004HondaElement2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2003HondaAccord2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
2003HondaElement2.4LL4GASN/A172 Degree; OE Temperature; Seal included; Integrated Housing Thermostat
Directly replaces or cross-references 9 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Four Seasons — 86017Gates — 34050Gates — 38767MAHLE — 55470Motorad — 554-170NGK — 4876719301RAAA02446172TI23878
