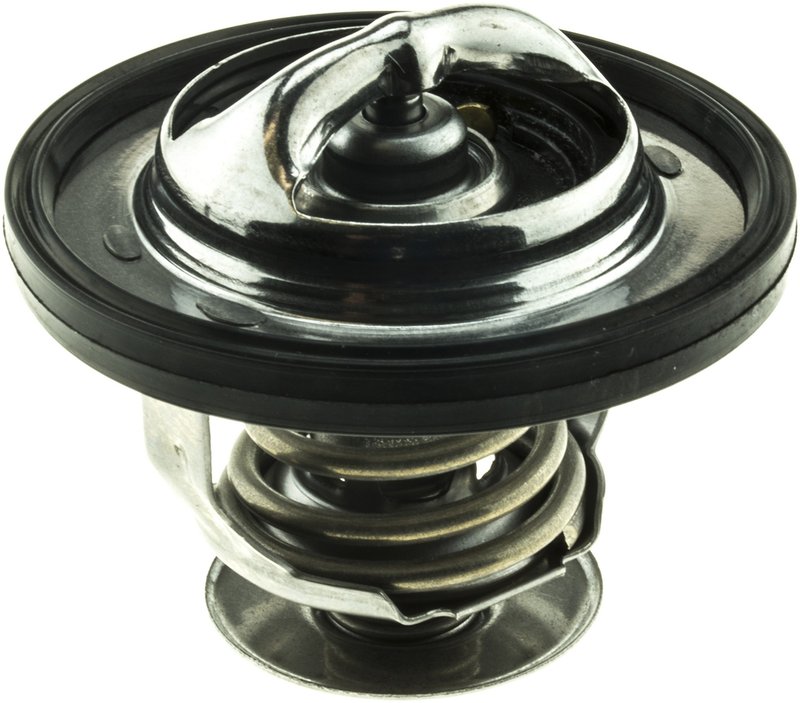

Gates 34053S Engine Coolant Thermostat

Gates Premium Thermostat 34053S Overview

The Gates Premium Thermostat 34053S is a 203-degree engine coolant thermostat for Chrysler, Dodge, Jeep, and Ram applications that call for OE operating temperature control. It uses stainless steel and copper construction, an O-ring seal, and a jiggle pin weep hole to support stable coolant regulation in daily driving conditions.

Gates Premium Thermostat line focuses on upgraded corrosion resistance and temperature consistency through heavy-gauge stainless steel construction and an improved spring design. For vehicles such as the Dodge Charger, Dodge Challenger, Jeep Grand Cherokee, and Ram 1500, this thermostat helps maintain the factory cooling strategy specified for the application.

Key Features

• Part number: 34053S
• 203-degree start-to-open temperature for OE-style cooling control
• Stainless steel and copper construction for corrosion resistance
• Bottom by-pass design
• O-ring seal type for proper housing sealing
• Jiggle pin weep hole for air bleeding during service
• Premium thermostat design with upgraded spring for temperature stability
• Cross-reference example: Motorad 416-203

Detailed Description

This Gates thermostat is built for direct replacement service in a wide range of Chrysler, Dodge, Jeep, and Ram engines. The 203-degree opening point matches OE temperature requirements for many late-model and earlier HEMI and V6 applications, including Dodge Charger, Dodge Challenger, Jeep Grand Cherokee, and Ram 1500 fitments. The stainless steel body and copper components are selected to improve resistance to corrosion, while the bottom by-pass configuration supports proper coolant routing in the housing.

The Gates Premium Thermostat 34053S is a practical choice when you need consistent engine coolant temperature control and a service part that aligns with factory specifications. This part cross-references Motorad 416-203 for the same application.

What It Helps Address

• Engine running too cool or too warm due to thermostat wear
• Delayed warm-up after cold starts
• Temperature fluctuation during normal driving
• Coolant flow issues related to a sticking thermostat
• Corrosion-related thermostat housing service concerns

Installation Notes and Tips

Verify the OE temperature requirement before installation, since this unit starts to open at 203 degrees. Confirm housing style, by-pass configuration, and seal type against the removed part. Clean the sealing surfaces thoroughly and inspect the coolant system for contamination, trapped air, or housing damage before reassembly. This thermostat does not include an installation tool.

Compatible With 2003-2023 Dodge Charger, 2008-2021 Dodge Challenger, 2005-2020 Chrysler 300, 2005-2020 Jeep Grand Cherokee, and 2011-2029 Ram 1500 applications listed in the fitment data, along with additional Dodge Durango, Ram 2500, Ram 3500, Jeep Commander, Chrysler Aspen, and Dodge Magnum coverage.

Quality Assurance

Gates Premium Thermostat components are built with heavy-gauge stainless steel construction and an upgraded spring to support stable temperature control under normal operating conditions. The design includes a jiggle pin weep hole, O-ring seal, and OE-temperature calibration for service replacement use.
