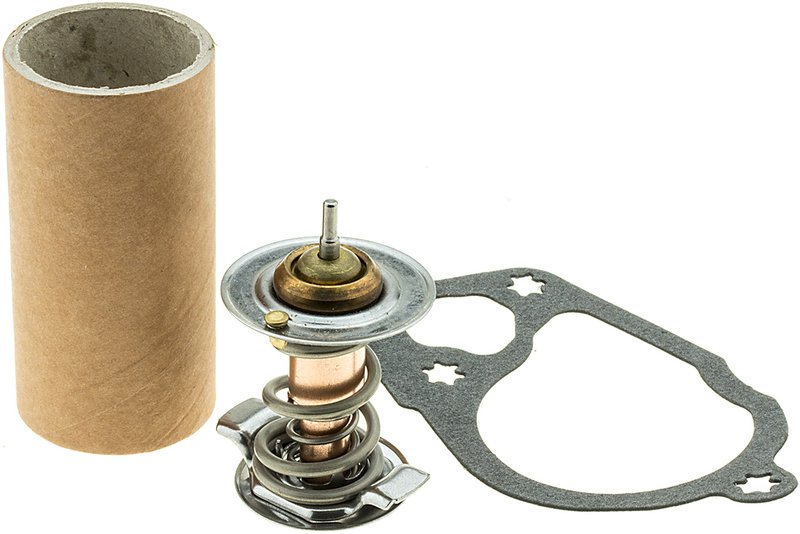

Gates 34163S Engine Coolant Thermostat

Reliable Engine Cooling with Gates Premium Thermostat 34163S

The Gates Premium Thermostat 34163S is engineered to maintain optimal engine temperature for a range of GM vehicles including Buick, Cadillac, Chevrolet, and GMC models. Designed with durable stainless steel and copper materials, this engine coolant thermostat ensures precise temperature regulation and efficient cooling system performance.

• Constructed from stainless steel and copper for durability and corrosion resistance
• Bottom by-pass design with a jiggle pin weep hole for effective coolant flow
• O-ring seal type providing a secure, leak-free fit
• Start to open temperature at 180°F (82°C) for accurate engine temperature control
• Includes installation tool for easier and precise fitting
• Compatible with multiple GM makes and models such as Chevrolet Camaro, Buick LaCrosse, Cadillac CTS, and GMC Terrain

About the Gates Premium Thermostat Product Line

The Gates Premium Thermostat line focuses on delivering reliable engine temperature management through high-quality materials and precise engineering. This product line is designed to meet or exceed OEM specifications, providing consistent performance and durability. The 34163S model exemplifies this with its stainless steel and copper construction, bottom by-pass design, and integrated jiggle pin weep hole to prevent air lock and ensure smooth coolant circulation.

Detailed Product Features and Specifications

The Gates 34163S thermostat features a bottom by-pass design with a by-pass flange diameter of 1.5 inches and a height between flanges of 1.88 inches. The overall height is 2.74 inches, with a height from flange of 0.86 inches. It includes one jiggle pin/check valve and one O-ring seal, but no gaskets are required. The thermostat starts to open at 180°F (82°C), allowing coolant to flow and maintain engine temperature within optimal ranges. The included installation tool simplifies the replacement process, ensuring proper fitment and sealing.

Compatible Vehicles and Common Applications

• Buick models such as LaCrosse and Enclave
• Cadillac CTS, ATS, and SRX
• Chevrolet Camaro, Equinox, and Impala
• GMC Terrain, Canyon, and Acadia
• Other GM makes including Oldsmobile, Pontiac, Saab, and Saturn

Common Issues Addressed by the Gates 34163S Thermostat

• Engine overheating due to thermostat failure
• Poor engine warm-up performance
• Coolant leaks from faulty seals or gaskets
• Air lock in cooling system causing inconsistent temperature regulation
• Reduced fuel efficiency from improper engine temperature

Installation Notes and Tips

Installation of the Gates Premium Thermostat 34163S is straightforward with the included installation tool. Ensure the O-ring seal is properly seated to prevent leaks. The bottom by-pass design requires correct orientation during installation. It is recommended to drain the coolant system before removal and refill with fresh coolant after installation. Verify compatibility with your specific vehicle make and model before installation.

Quality Assurance and Warranty

Gates Premium Thermostats are manufactured to meet strict quality standards and OEM specifications. The 34163S model is built with corrosion-resistant materials and designed for long service life. While specific warranty details are not provided here, Gates products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
