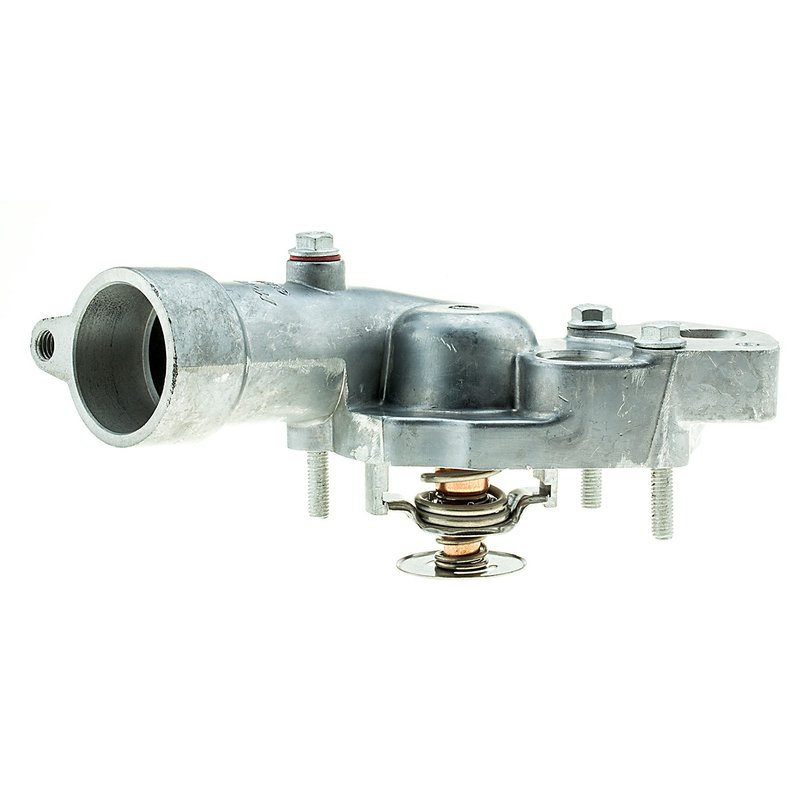

Gates 34724 Engine Coolant Thermostat

Overview of Gates Integrated Housing Thermostat 34724

The Gates Integrated Housing Thermostat 34724 is designed to regulate engine temperature efficiently in select Buick and Suzuki models. This engine coolant thermostat features an integrated housing design that simplifies installation and ensures reliable performance.

• Integrated housing thermostat type with 3 bolt holes for secure mounting
• Jiggle pin weep hole included for air bleeding and coolant flow
• Start to open temperature at 180°F (82°C) for optimal engine temperature control
• Outlet inside diameter of 1.4 inches to match OEM specifications
• Non-electric design with one jiggle pin/check valve and one seal
• OE comparison rating ensures performance aligned with original equipment

Detailed Product Description

The Gates Integrated Housing Thermostat 34724 is engineered to maintain proper engine operating temperature by regulating coolant flow through the engine. Featuring a 3-bolt hole configuration, this thermostat housing provides a secure and precise fit for compatible vehicles. The integrated housing design combines the thermostat and housing into a single unit, reducing potential leak points and simplifying replacement procedures.

This thermostat starts to open at 180°F (82°C), which helps prevent engine overheating while allowing the engine to reach optimal operating temperature quickly. The inclusion of a jiggle pin weep hole facilitates air bleeding from the cooling system, improving coolant circulation and reducing the risk of air pockets. With an outlet inside diameter of 1.4 inches, it matches the dimensions required for proper coolant flow in the specified Buick and Suzuki models.

Compatible Vehicles and Applications

This thermostat is compatible with the following makes and models:

• Buick Allure
• Buick LaCrosse
• Buick Rendezvous
• Suzuki XL-7

It is designed specifically for these vehicles to ensure proper fitment and cooling system performance.

Common Issues Addressed by This Thermostat

• Engine overheating due to thermostat failure or sticking
• Coolant leaks from damaged or worn thermostat housing
• Poor engine temperature regulation causing inefficient fuel consumption
• Air trapped in the cooling system affecting coolant flow
• Inconsistent engine warm-up times impacting vehicle performance

Installation Notes and Tips

• Ensure the engine is cool before beginning installation to avoid burns
• Drain coolant to a level below the thermostat housing before removal
• Clean the mounting surface thoroughly to prevent leaks
• Use the correct torque specifications for the 3 bolt holes to secure the housing
• Replace the seal included with the thermostat to maintain a proper seal

Quality Assurance and Warranty

The Gates Integrated Housing Thermostat 34724 meets OE comparison ratings, ensuring it performs to the standards expected by vehicle manufacturers. While it is not an exact OE part, it is engineered to provide reliable operation and durability. Gates products typically come with a limited warranty against defects in materials and workmanship; please refer to the product documentation for specific warranty details.

The Integrated Housing Thermostat product line by Gates combines the thermostat and housing into a single assembly, reducing installation complexity and potential leak points. This design approach supports efficient engine cooling system maintenance for compatible Buick and Suzuki vehicles.
