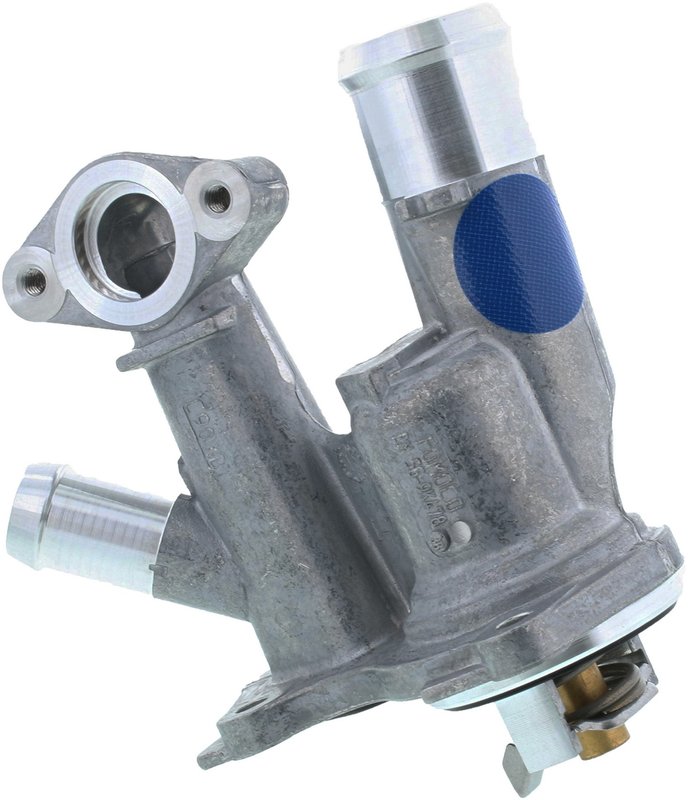

Gates 34844 Engine Coolant Thermostat
| Brand | Gates 34844 |
|---|---|
| 2 | |
| Bolt Hole Quantity | 4 |
| Check Valve | Yes |
| Electric | No |
| Electric | No |
| Jiggle Pin Weep Hole | No |
| Jiggle Pin/Check Valve | Yes |
| Number of Bolt Holes | 4 |
| Number of Jiggle Pins/Check Valves | 1 |
| Number of Seals | 2 |
| OE Comparison Rating | OE Exact |
| OE Exact | Yes |
| Outlet Inside Diameter | .6 |
| Outlet Inside Diameter | .91 |
| Outlet Inside Diameter | 1.06 |
| Outlet Inside Diameter 1 (in) | .6 |
| Outlet Inside Diameter 2 (in) | .91 |
| Outlet Inside Diameter 3 (in) | 1.06 |
| Outlet Outside Diameter | .44 |
| Outlet Outside Diameter | .9 |
| Outlet Outside Diameter 1 (in) | .44 |
| Outlet Outside Diameter 3 (in) | .9 |
| Start to Open Temperature | 82 |
| Start to Open Temperature | 180 |
| Temperature (C) | 82 |
| Type | Integrated Housing Thermostat |
| Product line | Integrated Housing Thermostat |
| Fits | Ford · 14 vehicles |
OE exact replacement. Integrated housing thermostat matches the original design for a direct swap.
Accurate temperature control. Starts to open at 180°F to help engines run more efficiently.
Built-in check valve. Integrated housing includes 4 bolt holes and 2 seals for a secure fit.
Cross-references Dorman - OE Solutions 902-1100, Four Seasons 86014 and Motorad 736-180 for the same application. See all 6.
Integrated thermostat housing for OE cooling control
Gates 34844 is an integrated housing thermostat built for accurate engine temperature regulation in vehicles that use a combined thermostat and housing assembly. It supports stable coolant flow control for the Ford Fiesta, Ford Escape, Ford Transit Connect, and Ford Fusion applications listed below.
The Gates Integrated Housing Thermostat line focuses on OE-style replacement for modern cooling systems that use integrated housings. Gates applies aftermarket thermostat development to provide a direct-fit alternative for OE dealership parts, with attention to temperature control and housing design.
Key features
- Integrated Housing Thermostat design
- Start to open temperature: 180°F / 82°C
- OE Exact comparison rating
- Check valve included
- 4 bolt holes
- 2 seals
- Electric: No
- Jiggle pin weep hole: No
Detailed product overview
This Gates engine coolant thermostat is engineered for vehicles that require an integrated thermostat housing rather than a standalone thermostat. The 34844 uses OE-style temperature control to help the engine reach and maintain the correct operating range, which is important for coolant circulation, heater performance, and overall thermal management. Cross-reference part numbers include Dorman OE Solutions 902-1100 and Motorad 736-180 for the same application.
Fits 2014-2019 Ford Fiesta, N/A. Fits 2013-2016 Ford Escape, N/A. Fits 2014-2016 Ford Transit Connect, N/A. Fits 2014 Ford Fusion, N/A.
What this thermostat housing helps address
- Engine running too cool or too warm
- Delayed warm-up after cold starts
- Temperature fluctuation from a worn thermostat assembly
- Coolant flow control issues in integrated housing systems
- Replacement needs for OE-style thermostat housing service
Installation notes and tips
Verify the OE temperature rating, outlet dimensions, bolt-hole count, and seal layout before installation. This part uses an integrated housing design with 4 bolt holes and 2 seals, so the housing mounting surface and coolant connections should be inspected for wear, corrosion, or residue before assembly. Confirm vehicle application by year, make, and model before ordering.
Quality assurance
Gates develops integrated thermostat housings as OE-style aftermarket replacements for modern cooling systems. Part number 34844 is listed as OE Exact and is built to match the specified temperature control requirements for the supported Ford applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2018 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2017 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2016 | Ford | Escape | 1.6L | L4 | GAS | N/A | Includes Housing; 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2016 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2016 | Ford | Transit Connect | 1.6L | L4 | GAS | N/A | Includes Housing; 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2015 | Ford | Escape | 1.6L | L4 | GAS | N/A | Includes Housing; 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2015 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2015 | Ford | Transit Connect | 1.6L | L4 | GAS | N/A | Includes Housing; 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2014 | Ford | Escape | 1.6L | L4 | GAS | N/A | Includes Housing; 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2014 | Ford | Fiesta | 1.6L | L4 | GAS | N/A | 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2014 | Ford | Fusion | 1.6L | L4 | GAS | N/A | 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2014 | Ford | Transit Connect | 1.6L | L4 | GAS | N/A | Includes Housing; 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2013 | Ford | Escape | 1.6L | L4 | GAS | N/A | Includes Housing; 180 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
