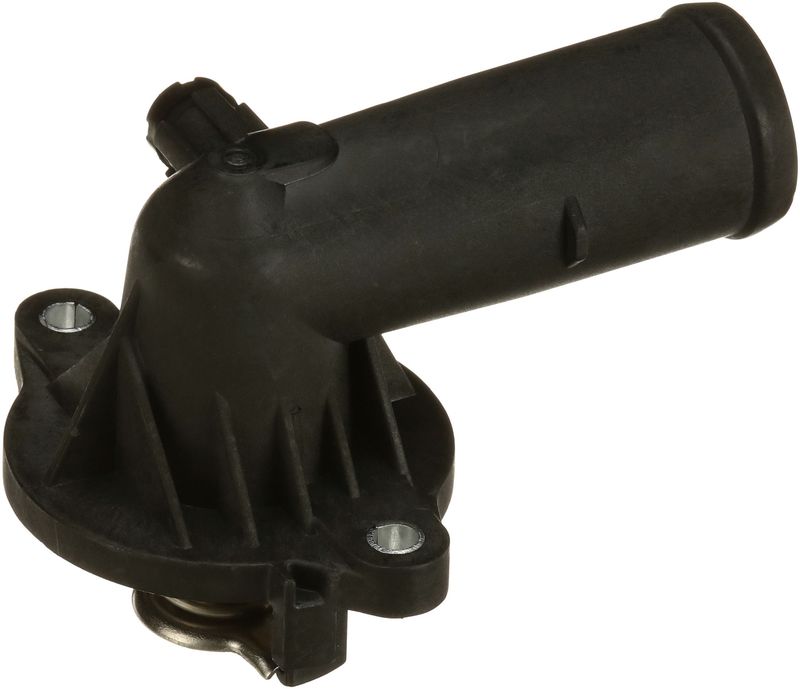

Gates 34925 Engine Coolant Thermostat
| Brand | Gates 34925 |
|---|---|
| Outlet Outside Diameter | 1.5 |
| Bolt Hole Quantity | 2 |
| Type | Integrated housing thermostat |
| Grade Type | Oe exact |
| Start to Open Temperature | 195 |
| Start to Open Temperature | 90 |
| Outlet Inside Diameter | 1.25 |
| Electric | No |
| 9841 | 1 |
| 9852 | 0 |
| 9943 | No |
| Product line | Integrated Housing Thermostat |
| Fits | Chrysler and Dodge · 13 vehicles |
OE Exact grade. Factory-style replacement fit and function for integrated cooling system service.
Integrated housing design. Combines thermostat and housing in one service assembly for modern cooling systems.
Non-electric construction. Uses a two-bolt pattern with specified outlet dimensions for accurate replacement.
Cross-references 5184977AH for the same application. See all 1.
Overview
The Gates 34925 integrated housing thermostat is an OE Exact replacement built for accurate coolant temperature control. It is designed for applications that use an integrated thermostat housing, with fitment covering Chrysler 300 and Dodge Challenger and Charger models listed below.
This Gates thermostat housing assembly helps maintain proper operating temperature for consistent engine performance and cooling system control. The 34925 part number is a direct reference for buyers searching for an OE-style thermostat housing solution.
Key Features
- Integrated housing thermostat design for a complete thermostat-and-housing service part.
- OE Exact grade for a factory-style replacement fit and function.
- 195°F start-to-open temperature for specified cooling system calibration.
- Non-electric design with a two-bolt housing pattern.
- Outlet dimensions: 1.5 in. outside diameter and 1.25 in. inside diameter.
Detailed Description
Gates engineered the Integrated Housing Thermostat line to address modern cooling systems that combine the thermostat and housing into one service assembly. This design supports accurate temperature regulation and steady coolant flow control, which is important when replacing a worn or sticking thermostat housing. The 34925 is an OE Exact part intended for drivers who want a factory-style cooling system repair without changing the original configuration.
Fitment includes 2019-2023 Chrysler 300, N/A; 2020-2023 Dodge Challenger, N/A; and 2020-2023 Dodge Charger, N/A. This part cross-references 5184977AH for the same application. The 34925 part number is also useful when verifying the correct integrated housing thermostat for Chrysler 300 and Dodge Charger cooling system service.
What It Fixes
- Erratic engine temperature control caused by a failing thermostat.
- Coolant flow issues from a thermostat that opens too late or too early.
- Leaks or sealing problems associated with a worn housing assembly.
- Cooling system service needs on vehicles using an integrated thermostat housing.
Installation Notes
Confirm the OE temperature specification and housing style before installation. This unit uses a two-bolt mounting pattern and a non-electric design. Match the outlet diameters and application notes to the original part before service.
Quality Assurance
Gates develops integrated thermostat housing solutions for modern aftermarket cooling system repairs, with research and development focused on OE-style replacement coverage.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2023 | Chrysler | 300 | 3.6L | V6 | FLEX | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2023 | Dodge | Challenger | 3.6L | V6 | GAS | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2023 | Dodge | Charger | 3.6L | V6 | FLEX | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2022 | Chrysler | 300 | 3.6L | V6 | FLEX | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2022 | Dodge | Challenger | 3.6L | V6 | GAS | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2022 | Dodge | Charger | 3.6L | V6 | FLEX | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2021 | Chrysler | 300 | 3.6L | V6 | FLEX | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2021 | Dodge | Challenger | 3.6L | V6 | GAS | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2021 | Dodge | Charger | 3.6L | V6 | FLEX | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2020 | Chrysler | 300 | 3.6L | V6 | FLEX | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2020 | Dodge | Challenger | 3.6L | V6 | GAS | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2020 | Dodge | Charger | 3.6L | V6 | FLEX | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| 2019 | Chrysler | 300 | 3.6L | V6 | FLEX | 203 Degree; OE Temperature; Seal included; Integrated Housing Thermostat |
| No rows match your filter. | ||||||
