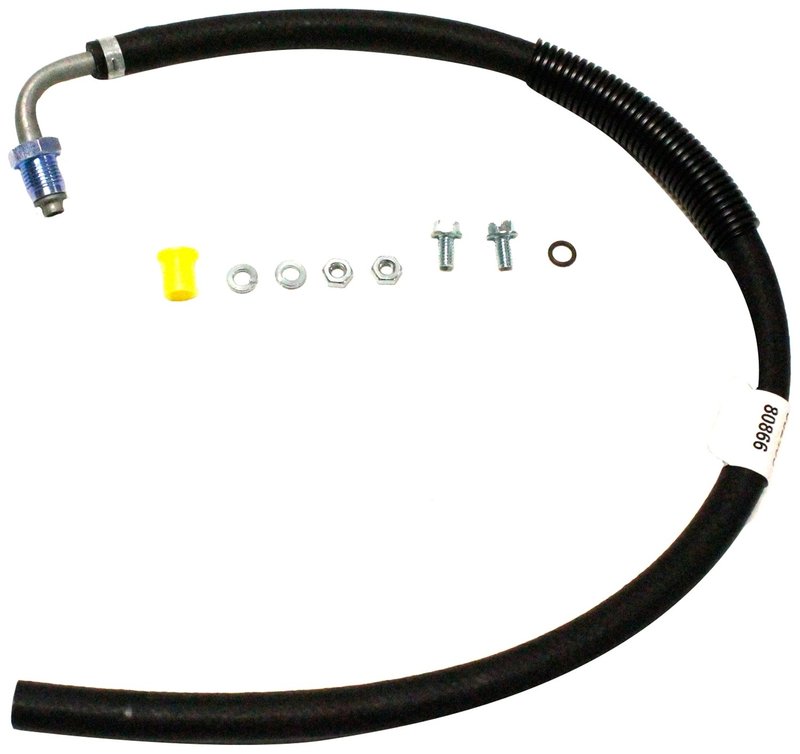

Gates 352463 Power Steering Return Line Hose Assembly - Gear To Cooler

Brand	Gates 352463
Position	Gear To Cooler
Length	30.25
End 1 Type	Male o-ring
End 1 Diameter (mm)	16
End 2 Diameter (in)	.375
End 2 Type	I.d. hose
Product line	Return Line Assembly
Fits	Pontiac and Saturn · 15 vehicles

Return line assembly. A direct-fit power steering hose assembly for replacing the return line.

Male O-ring end. Provides a secure sealed connection at one end.

I.D. hose end. Connects cleanly to standard hose routing at the other end.

Cross-references Dorman - HELP 80866, Eastern Catalytic 40303 and NGK 5464 for the same application. See all 7.

$51.88Free shipping

Out of stock

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Power Steering Return Line Hose Assembly options

Gates 352463 Return Line Assembly

The Gates 352463 power steering return line hose assembly is built for steering systems that route fluid from the gear to the cooler. It is a direct-fit style replacement for select Saturn Sky and Pontiac Solstice applications, with dimensions and end connections that match the listed vehicles.

Key Features

Power steering return line hose assembly for gear-to-cooler routing
Length: 30.25 in.
End 1: Male O-ring, 16 mm diameter
End 2: 0.375 in. I.D. hose connection
Gates Return Line Assembly product line
Part number: 352463

Product Details

This Gates Return Line Assembly is specified for power steering return service where fluid travels from the steering gear to the cooler. The 30.25-inch length and listed end configurations help match the original routing and connection style on the vehicle. Compatible With 2007-2010 Saturn Sky, Gear To Cooler, and 2006-2009 Pontiac Solstice, Gear To Cooler. This part cross-references Dorman - HELP 80866 for the same application. The Gates 352463 part number is also referenced by interchange listings including 5-5464 and 7-7056.

Common Uses

Replacing a leaking or cracked power steering return hose
Restoring fluid transfer from the steering gear to the cooler
Addressing steering fluid seepage at hose ends or fittings
Correcting hose routing issues on Saturn Sky and Pontiac Solstice models
Repairing a worn return line assembly identified by part number 352463

Installation Notes

Verify the vehicle’s steering gear-to-cooler routing before installation and compare the hose length, end style, and diameter to the removed part. Confirm the 16 mm male O-ring connection on End 1 and the 0.375 in. I.D. hose connection on End 2. After installation, inspect the system for leaks and check power steering fluid level according to the vehicle service procedure.

Quality Assurance

Gates is a recognized name in fluid transfer components, and the Return Line Assembly line is organized for application-specific steering hose replacement. Use the listed fitment and dimensions to confirm the correct Gates 352463 part for your Saturn Sky or Pontiac Solstice.

This part fits 15 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Liters	Cylinders	Fuel Type	Position	Notes
2010	Saturn	Sky	2.0L	L4	GAS	Gear To Cooler	Return Line Assembly
2010	Saturn	Sky	2.4L	L4	GAS	Gear To Cooler	Return Line Assembly
2009	Pontiac	Solstice	2.0L	L4	GAS	Gear To Cooler	Return Line Assembly
2009	Pontiac	Solstice	2.4L	L4	GAS	Gear To Cooler	Return Line Assembly
2009	Saturn	Sky	2.0L	L4	GAS	Gear To Cooler	Return Line Assembly
2009	Saturn	Sky	2.4L	L4	GAS	Gear To Cooler	Return Line Assembly
2008	Pontiac	Solstice	2.0L	L4	GAS	Gear To Cooler	Return Line Assembly
2008	Pontiac	Solstice	2.4L	L4	GAS	Gear To Cooler	Return Line Assembly
2008	Saturn	Sky	2.0L	L4	GAS	Gear To Cooler	Return Line Assembly
2008	Saturn	Sky	2.4L	L4	GAS	Gear To Cooler	Return Line Assembly
2007	Pontiac	Solstice	2.0L	L4	GAS	Gear To Cooler	Return Line Assembly
2007	Pontiac	Solstice	2.4L	L4	GAS	Gear To Cooler	Return Line Assembly
2007	Saturn	Sky	2.0L	L4	GAS	Gear To Cooler	Return Line Assembly
2007	Saturn	Sky	2.4L	L4	GAS	Gear To Cooler	Return Line Assembly
2006	Pontiac	Solstice	2.4L	L4	GAS	Gear To Cooler	Return Line Assembly
No rows match your filter.

Directly replaces or cross-references 7 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Dorman - HELP — 80866Eastern Catalytic — 40303NGK — 54645-54647-705636-35246319151428
