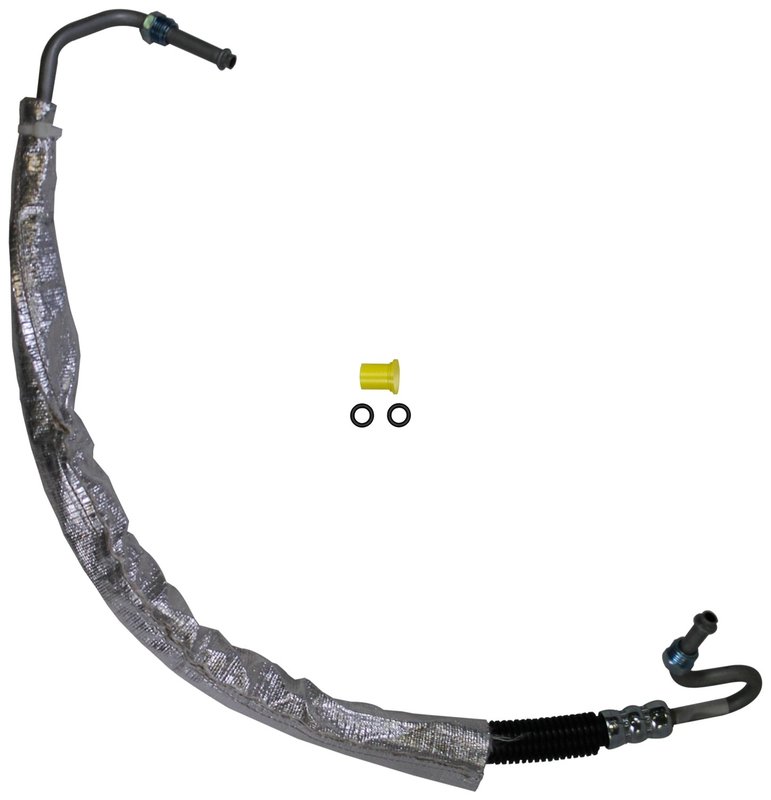

Gates 352913 Power Steering Pressure Line Hose Assembly - Intermediate Hose

Gates Pressure Line Assembly for OE-Style Steering Repair

The Gates 352913 power steering pressure line hose assembly is built for direct replacement in select Cadillac XTS and Buick LaCrosse applications. It uses male O-ring ends with 16 mm fittings and a 37.25-inch length to match the original pressure line routing and connection points.

As part of Gates Pressure Line Assembly line, this hose assembly is focused on OE-style fit and function for power steering systems that require a precise pressure-side replacement. The Gates 352913 is a practical choice when servicing a leaking, damaged, or worn steering pressure line on the Buick LaCrosse or Cadillac XTS.

Key Features

• Part number: 352913
• Power steering pressure line hose assembly
• Length: 37.25 inches
• End 1 type: Male O-Ring, 16 mm
• End 2 type: Male O-Ring, 16 mm
• OE Performance rating for factory-style replacement
• Switch port not included

Detailed Description

Gates 352913 is a pressure line hose assembly for steering systems that require a direct-fit replacement with OE-style dimensions and connection types. The 37.25-inch length and 16 mm male O-ring ends support proper routing and sealing at the pressure line connection points. This makes it a strong match for service work on 2013-2019 Cadillac XTS intermediate hose applications, 2010-2016 Buick LaCrosse intermediate hose applications, and 2010 Buick Allure intermediate hose applications. If you are searching for a power steering pressure line hose assembly for Cadillac XTS or Buick LaCrosse service, Gates 352913 is the exact part number to reference.

This part cross-references ACI 81272 and Dayco 81271 for the same application.

What It Helps Address

• Power steering fluid leaks at the pressure line
• Cracked, corroded, or damaged steering hose routing
• Loss of steering assist caused by pressure-side hose failure
• Improper sealing at worn O-ring connections
• Noise or stiffness related to low power steering fluid level

Installation Notes and Tips

• Verify the vehicle application by year, make, model, and intermediate hose position before installation.
• Confirm both connection points use 16 mm male O-ring fittings.
• Inspect mating surfaces and replace damaged seals or O-rings as needed during service.
• Check hose routing carefully to avoid contact with moving or hot components.
• After installation, refill and bleed the power steering system according to the vehicle service procedure.

Quality Assurance

Gates is known for OE-style fluid transfer and steering components, and this hose assembly carries an OE Performance rating for factory-level fit and function. Part number 352913 is built for direct replacement use in the listed Cadillac and Buick applications.
