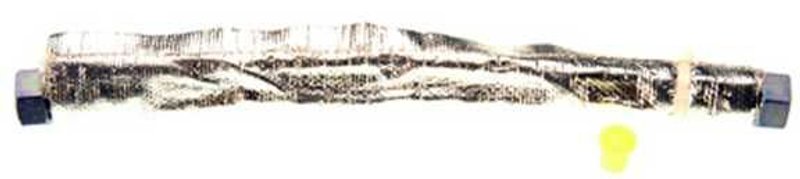

Gates 353010 Power Steering Pressure Line Hose Assembly - Intermediate Hose

Gates Pressure Line Assembly 353010

The Gates 353010 power steering pressure line hose assembly restores hydraulic pressure between the pump and the rack or gear box. Built for OE performance, it is a direct-fit pressure line for select Chrysler, Dodge, and Mitsubishi applications, including Chrysler Sebring, Dodge Avenger, and Mitsubishi Eclipse.

Key Features

• Power steering pressure line hose assembly for pump-to-rack/gear box routing
• 13-inch length with 14 mm female inverted flare ends on both sides
• Heat sleeves included for added protection in high-temperature areas
• Crimped sleeve material uses anti-corrosion steel
• Steel tube material is zinc single wall steel
• Rubber hose exceeds SAE J188 specifications
• OE performance rating for factory-style fit and function

Product Details

This Gates Pressure Line Assembly line is engineered for pressure-side steering service where consistent fluid transfer and secure sealing matter. Part number 353010 uses female inverted flare connections at both ends, a pump-to-rack/gear box hose position, and corrosion-resistant construction to support dependable steering response. For drivers searching for a power steering pressure hose for 1995-2000 Chrysler Sebring, 1995-2000 Dodge Avenger, or 1995-1999 Mitsubishi Eclipse, the Gates 353010 provides a direct replacement option built around the original routing and connection style.

This part cross-references Dorman - HELP 80325 for the same application.

What It Helps Address

• Power steering fluid leaks at the pressure line
• Loss of steering assist from damaged hose sections
• Fluid seepage at flare connections
• Heat-related hose deterioration near the engine bay
• Corrosion on the steel tube or crimped sleeve

Installation Notes

• Verify end type, length, and hose routing before installation.
• Inspect mating flare seats and replace worn sealing surfaces as needed.
• Confirm the line follows the original pump-to-rack/gear box path without kinks or twist.
• Bleed the power steering system after installation to remove trapped air.
• Check for leaks with the engine running and steering turned lock-to-lock.

Quality Assurance

Gates builds this pressure line assembly to OE performance standards, with rubber hose construction that exceeds SAE J188 specifications and corrosion-resistant metal components for service durability.
