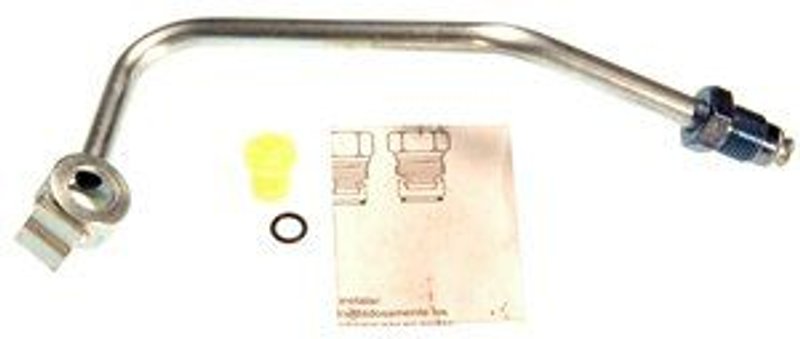

Gates 353760 Power Steering Pressure Line Hose Assembly - Tube - To Rack
| Brand | Gates 353760 |
|---|---|
| Position | Tube - To Rack |
| Length | 11.5 |
| End 1 Type | Banjo |
| End 2 Type | Male o-ring |
| Mounting Brackets Included | No |
| Bracket Bushings Included | No |
| Copper Washers Included | Yes |
| Crimped Sleeve Material | Anti corrosion steel |
| End 1 Diameter (mm) | 14 |
| End 2 Diameter (mm) | 16 |
| Heat Sleeves Included | No |
| Hose Position | Pump to rack/gear box |
| OE Comparison Rating | Oe performance |
| Rubber Hose Standard | Exceeds sae j188 specifications |
| Rubber Mounts Included | No |
| Steel Tube Material | Zinc single wall steel |
| Switch Port Included | No |
| Product line | Pressure Line Assembly |
| Fits | Chevrolet and Suzuki · 8 vehicles |
OE performance rating. Built to match original-equipment expectations for dependable steering pressure transfer.
Anti-corrosion steel sleeve. Helps resist wear and corrosion for longer service life.
Copper washers included. Provides the sealing hardware needed for a secure connection.
Cross-references AMS Automotive 4273, Bosch 15668 and Dayco 80289 for the same application. See all 8.
Gates Pressure Line Assembly 353760
The Gates 353760 power steering pressure line hose assembly is built for pressure-side steering service between the pump and the rack or gear box. It is a direct-fit style replacement for select Chevrolet Tracker and Suzuki Vitara applications, with OE performance positioning and materials selected for durability in steering systems.
Key Features
- Power steering pressure line hose assembly for pump to rack/gear box routing
- 11.5 in. overall length
- Banjo end at one side and male O-ring end at the other
- 14 mm end 1 diameter and 16 mm end 2 diameter
- Copper washers included
- Anti-corrosion steel crimped sleeve construction
- Zinc single-wall steel tube material
- Rubber hose exceeds SAE J188 specifications
- OE performance rating for factory-style service
Product Details
Gates Pressure Line Assembly 353760 is engineered as a replacement power steering pressure hose for vehicles that use a banjo connection at the pump side and a male O-ring connection at the rack or gear box side. The hose assembly is built with anti-corrosion steel at the crimped sleeve and zinc single-wall steel tubing, while the rubber hose construction exceeds SAE J188 specifications for steering hose performance. This part cross-references Four Seasons 35376 for the same application.
Compatible with 1999-2002 Chevrolet Tracker, Tube - To Rack, and 1999-2002 Suzuki Vitara, Tube - To Rack. For shoppers searching for a 1999-2002 Chevrolet Tracker power steering pressure line hose assembly or a 1999-2002 Suzuki Vitara tube-to-rack steering hose, part number 353760 matches the listed fitment and connection style.
Common Problems This Part Addresses
- Power steering fluid leaks at the pressure line
- Cracked or deteriorated hose material
- Corrosion at the steel tube or crimped sleeve
- Improper sealing at banjo or O-ring connections
- Loss of steering assist caused by a damaged pressure hose
Installation Notes
Verify the hose routing, end styles, and diameter requirements before installation. This assembly does not include mounting brackets, bracket bushings, heat sleeves, rubber mounts, or a switch port. Copper washers are included for the banjo connection, and the system should be inspected for contamination or wear before the new line is installed. Confirm the vehicle uses the tube-to-rack position shown in the fitment data for Chevrolet Tracker and Suzuki Vitara applications.
Quality Assurance
Gates 353760 is built to OE performance standards and uses hose construction that exceeds SAE J188 specifications. The pressure line assembly is designed for consistent steering-system service in the listed Chevrolet Tracker and Suzuki Vitara applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2002 | Chevrolet | Tracker | 1.6L | L4 | GAS | Tube - To Rack | Pressure Line Assembly |
| 2002 | Suzuki | Vitara | 1.6L | L4 | GAS | Tube - To Rack | Pressure Line Assembly |
| 2001 | Chevrolet | Tracker | 1.6L | L4 | GAS | Tube - To Rack | Pressure Line Assembly |
| 2001 | Suzuki | Vitara | 1.6L | L4 | GAS | Tube - To Rack | Pressure Line Assembly |
| 2000 | Chevrolet | Tracker | 1.6L | L4 | GAS | Tube - To Rack | Pressure Line Assembly |
| 2000 | Suzuki | Vitara | 1.6L | L4 | GAS | Tube - To Rack | Pressure Line Assembly |
| 1999 | Chevrolet | Tracker | 1.6L | L4 | GAS | Tube - To Rack | Pressure Line Assembly |
| 1999 | Suzuki | Vitara | 1.6L | L4 | GAS | Tube - To Rack | Pressure Line Assembly |
