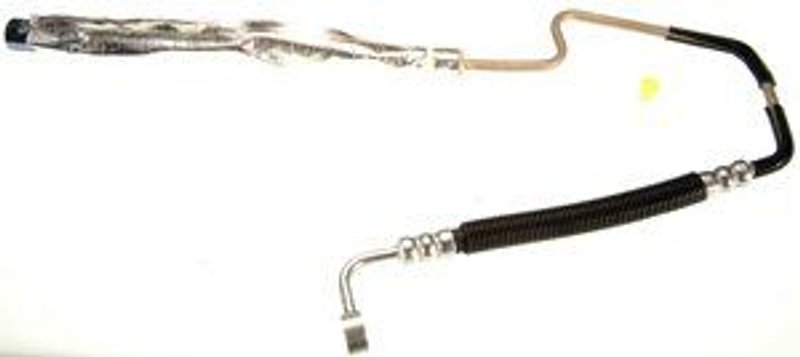

Gates 365530 Power Steering Pressure Line Hose Assembly - From Pump

Gates 365530 Pressure Line Assembly

The Gates 365530 pressure line hose assembly is a direct-fit power steering pressure line for select Toyota applications. Built for the pump-to-rack/gear box route, it combines a banjo end and a female O-ring end with OE-performance construction for reliable steering fluid transfer.

Gates Pressure Line Assembly products focus on accurate fit, durable hose construction, and corrosion-resistant materials for service replacement on power steering systems. This line is built to match the routing and connection style used on the listed Toyota Camry, Avalon, and Solara applications.

Key Features

• Power steering pressure line hose assembly for pump to rack/gear box routing
• Length: 47.5 in. for listed Toyota fitments
• End 1: banjo, 16 mm diameter
• End 2: female O-ring, 16 mm diameter
• Copper washers included
• Heat sleeves included
• Anti-corrosion steel crimped sleeve
• Zinc single-wall steel tube material
• Rubber hose exceeds SAE J188 specifications
• OE performance rating

Detailed Description

Gates 365530 is a power steering pressure line hose assembly engineered for select Toyota vehicles with a from-pump pressure line layout. It is specified for 1997-2000 Toyota Camry, 2001 Toyota Camry built July 31, 2001 and older, 1999-2003 Toyota Solara, and 1997-1999 Toyota Avalon. This part number 365530 uses a banjo connection on one end and a female O-ring connection on the other, with 16 mm end diameters and a 47.5-inch hose length.

The assembly includes copper washers and heat sleeves, and uses an anti-corrosion steel crimped sleeve with zinc single-wall steel tubing. The rubber hose construction exceeds SAE J188 specifications, supporting pressure-line service in the steering system. This part cross-references Edelmann 92011 for the same application.

What It Helps Repair

• Power steering fluid leaks at the pressure line
• Steering assist loss caused by a damaged hose assembly
• Cracked, worn, or corroded pressure line components
• Noise or stiffness related to restricted steering fluid flow
• Failed original line routing on Toyota Camry, Avalon, or Solara applications

Installation Notes

Verify the vehicle uses a from-pump pressure line with no switch port before ordering. Confirm the 47.5-inch hose length, banjo-to-female O-ring end configuration, and 16 mm connection sizes against the original part. For 2001 Toyota Camry, this listing applies to vehicles built July 31, 2001 and older.

Inspect mating surfaces, replace worn sealing components as needed, and route the line to match the original path to avoid contact with heat sources or moving parts. Use the listed fitment details for Toyota Camry, Toyota Avalon, and Toyota Solara applications to confirm correct application before installation.

Quality Assurance

Gates pressure line assemblies are built to OE-performance standards for service replacement in steering systems. The hose construction exceeds SAE J188 specifications, and the corrosion-resistant sleeve and steel tube materials support long-term durability in demanding underhood conditions.
