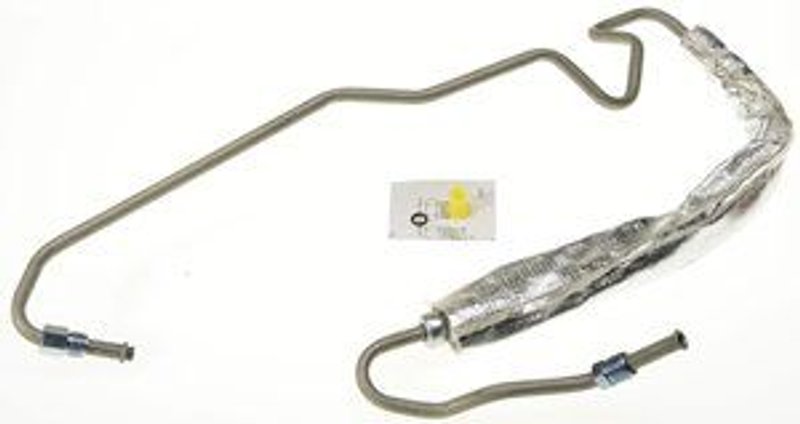

Gates 365556 Power Steering Pressure Line Hose Assembly

Gates 365556 Pressure Line Assembly

The Gates Pressure Line Assembly 365556 is a power steering pressure line hose assembly built for OE performance and direct-fit service on select Toyota and Pontiac applications. It is engineered with a 55-inch length and factory-style end connections to match the original routing and connection points.

Compatible with 2003-2008 Toyota Corolla, 2003-2008 Toyota Matrix, and 2003-2008 Pontiac Vibe, this pressure line assembly supports accurate steering system fluid transfer in the applications listed below.

Key Features

• Power steering pressure line hose assembly for steering system service
• 55-inch overall length for application-specific routing
• End 1: Male Inverted Flare, 16 mm
• End 2: Male O-Ring, 16 mm
• OE Performance rating for factory-style fit and function
• No switch port included
• Gates 365556 part number for direct identification

Application Details

This Gates Pressure Line Assembly is built around the connection and dimensional requirements listed in the product data. The 16 mm male inverted flare on one end and 16 mm male O-ring on the other help match the original steering hose interface used on the covered Corolla, Matrix, and Vibe applications. Gates 365556 is a practical replacement when the original pressure line shows wear, seepage, or connection issues.

This part cross-references Continental 50054 and Edelmann 92176 for the same application.

What It Helps Address

• Power steering fluid leaks at the pressure hose
• Cracked, hardened, or deteriorated hose material
• Loss of steering assist from pressure-line seepage
• Improper hose fitment after prior repair work
• Noise or performance issues related to restricted steering fluid flow

Installation Notes

Verify the hose routing, end styles, and 16 mm connection sizes before installation. Confirm the vehicle application against the listed fitment for 2003-2008 Toyota Corolla, 2003-2008 Toyota Matrix, or 2003-2008 Pontiac Vibe. Inspect mating surfaces, seals, and surrounding steering components for wear or contamination before placing the new line into service.

Quality Assurance

Gates pressure line assemblies are built to OE performance standards for application-specific steering system service. Part number 365556 is intended to match the listed fitment and connection requirements for reliable replacement use.
