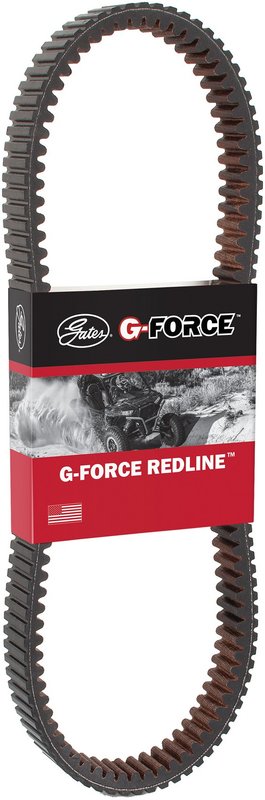

Gates 36R4368 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Gates G-Force RedLine CVT Belt 36R4368

The Gates G-Force RedLine CVT Belt 36R4368 is a high-performance automatic continuously variable transmission belt built for powersport and specialty CVT applications. Its double-notched construction, aramid cord reinforcement, and EPDM belt material are engineered to reduce speed-ratio loss and energy loss in demanding off-road use.

For riders searching for a Gates CVT belt for ATV, UTV, or side-by-side drivetrains, this belt line is built around stronger response and more consistent power transfer. The 36R4368 part number is also referenced in related Gates and aftermarket interchange listings for the same application.

Key Features

• Part number: 36R4368
• G-Force RedLine CVT Belt line for powersport specialty applications
• Double-notched construction for improved flexibility
• Aramid cord material for reinforcement
• EPDM belt material with black finish
• RVS-R cross section designation
• Top width: 1.362 in. (35 mm)
• Pitch width: 1.28 in. (32.5 mm)
• Thickness: 0.597 in. (15.2 mm)
• Outside circumference: 44.851 in. (1139 mm)
• Pitch length: 43.677 in. (1109 mm)
• OE improved comparison rating

Product Details

Gates G-Force RedLine CVT Belts are positioned as a next-generation CVT belt for high-load, high-heat environments where consistent belt grip and reduced energy loss matter. The double-notched design helps the belt flex smoothly through the variator and driven pulley system, while the aramid cord and EPDM construction support durability under demanding operating conditions. This makes the 36R4368 a strong choice for drivers looking for a Gates 36R4368 CVT belt replacement with OE-improved characteristics.

Searches for Gates G-Force RedLine CVT Belt 36R4368 often come from owners comparing belt dimensions, cross section, and OE-style replacement specs for powersport drivetrains. If you are cross-shopping a Dayco XTX2253 or related interchange numbers, verify pulley dimensions and application requirements before ordering.

What It Helps Address

• Slipping or inconsistent CVT belt engagement
• Loss of acceleration under load
• Reduced top-speed performance from belt wear
• Heat-related belt degradation in off-road use
• Speed-ratio inefficiency in demanding CVT operation

Installation Notes and Tips

Confirm the belt dimensions, cross section, and application requirements before installation. Match the 36R4368 to the correct CVT system specification for your vehicle, and inspect pulleys, clutch faces, and belt alignment at the same time. For long-tail fitment searches, use terms such as Gates 36R4368 CVT belt replacement for ATV and UTV applications, or Gates CVT belt for powersport specialty drivetrains.

Compatible With select powersport CVT applications, including ATV, UTV, and side-by-side drivetrains where the listed dimensions and section match. Fits are not provided in the supplied data, so vehicle-specific confirmation is required before purchase.

Quality Assurance

Gates designs the G-Force RedLine line around improved CVT performance characteristics, including better acceleration potential, higher top-speed capability, and reduced energy loss in extreme off-road environments. The 36R4368 is built with aramid reinforcement and OE-improved positioning for buyers seeking a technical replacement belt from a recognized drivetrain brand.
