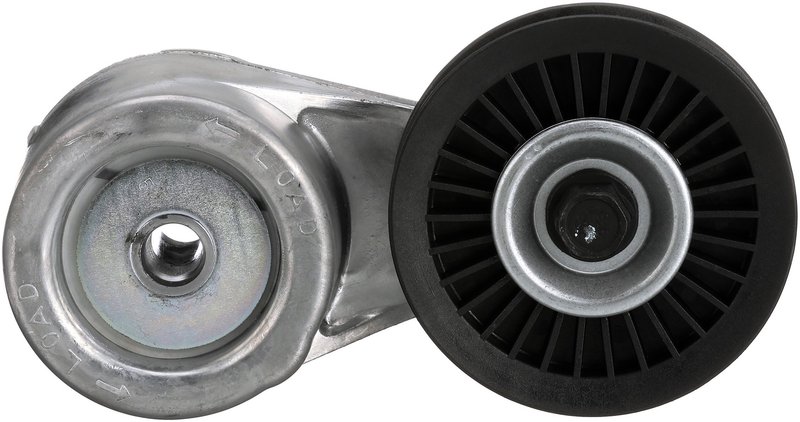

Gates 38135 Accessory Drive Belt Tensioner Assembly - Serpentine

Overview of Gates DriveAlign Premium OE Automatic Belt Tensioner

The Gates DriveAlign Premium OE Automatic Belt Tensioner 38135 is engineered to maintain optimal tension on the accessory drive belt system. Designed specifically for Chevrolet and GMC vehicles, this tensioner assembly ensures consistent belt performance and longevity.

• Thermoplastic construction for durability and heat resistance
• Single flanged pulley with a 3.54 inch (90 mm) outside diameter
• Four V-ribbed grooves compatible with V-ribbed belts
• Precision bearing bore inside diameter of 0.67 inch (17 mm)
• Width of 0.87 inch (22 mm) for proper belt alignment
• One mounting hole for secure installation

Detailed Product Description

This accessory drive belt tensioner assembly from Gates features a thermoplastic pulley designed to withstand the demanding conditions of engine compartments. The pulley includes four V-ribbed grooves and a flanged design to keep the V-ribbed belt properly seated and aligned. With a bearing bore inside diameter of 0.67 inch (17 mm), the tensioner provides smooth rotation and reliable belt tension. The 3.54 inch (90 mm) outside diameter and 0.87 inch (22 mm) width ensure compatibility with the accessory drive belt system on select Chevrolet and GMC models.

The DriveAlign Premium OE Automatic Belt Tensioner line is developed to meet original equipment (OE) performance standards, providing a direct replacement that maintains factory specifications. This product line focuses on precision engineering and material quality to deliver consistent belt tension and reduce premature belt wear.

Compatible Vehicles and Applications

This Gates tensioner assembly is compatible with a range of Chevrolet and GMC trucks and vans, including:

• Chevrolet Astro, C1500, C2500, C3500, K1500, K2500, K3500, and Safari
• GMC C35, G10, G20, G30 models

It is designed for use with V-ribbed accessory drive belts in these vehicles, ensuring proper belt tension and alignment.

Common Issues Addressed by This Tensioner

• Eliminates belt slippage caused by improper tension
• Prevents premature belt wear and cracking
• Reduces noise from loose or misaligned belts
• Maintains consistent accessory drive system performance
• Helps avoid engine overheating due to belt failure

Installation Notes and Tips

• Ensure the mounting surface is clean and free of debris before installation
• Verify belt type is V-ribbed and matches the groove count on the pulley
• Use proper torque specifications for the single mounting hole to avoid tensioner damage
• Inspect the belt for wear and replace if necessary during installation
• Check belt alignment after installation to prevent premature wear

Quality Assurance and Warranty

The Gates DriveAlign Premium OE Automatic Belt Tensioner 38135 is manufactured to meet OE performance standards, ensuring reliable operation and durability. Gates provides a limited warranty on this tensioner assembly, covering defects in materials and workmanship under normal use. This warranty supports confidence in the product’s quality and fitment for Chevrolet and GMC vehicles.
