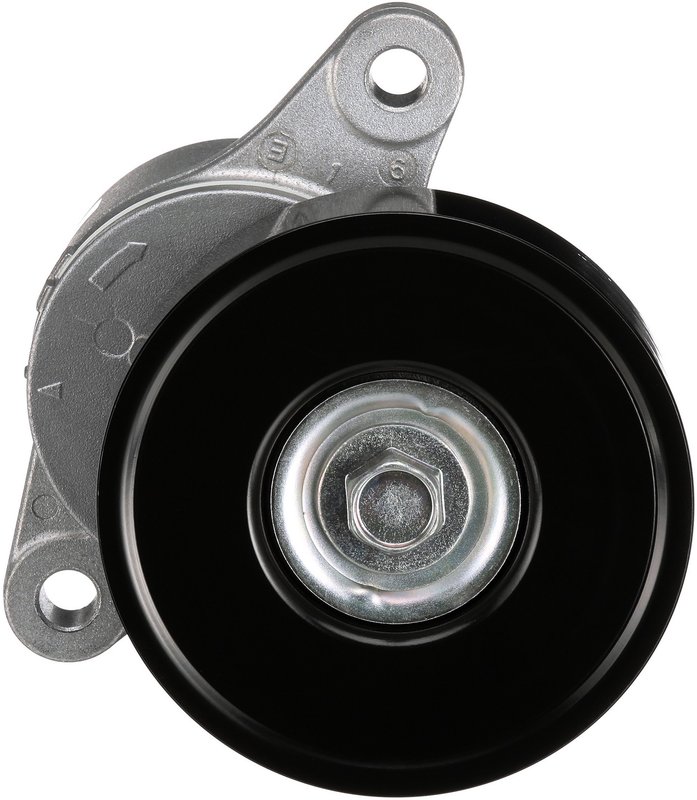

Gates 38156 Accessory Drive Belt Tensioner Assembly - Serpentine

Overview of Gates DriveAlign Premium OE Automatic Belt Tensioner

The Gates DriveAlign Premium OE Automatic Belt Tensioner (Part Number 38156) is engineered for reliable accessory drive belt tension in select Chevrolet and Suzuki vehicles. Designed with precision steel construction, this tensioner assembly ensures consistent belt alignment and optimal performance for V-ribbed belt systems.

• Constructed from durable steel for long-lasting strength
• Compatible with V-ribbed accessory drive belts
• Single pulley design without flange for smooth operation
• Two mounting holes for secure installation
• Dimensions: 3.54 inch (90 mm) outside diameter, 1.18 inch (30 mm) width
• Bearing bore inside diameter of 0.67 inch (17 mm)
• OE exact fit and performance for Chevrolet and Suzuki models

Detailed Product Description and Specifications

This accessory drive belt tensioner assembly is crafted from steel, providing the necessary rigidity and durability to maintain proper belt tension under various operating conditions. The tensioner features a smooth backside contact surface and a single pulley without flanges, designed specifically for V-ribbed belts. With an outside diameter of 3.54 inches (90 mm) and a width of 1.18 inches (30 mm), it fits precisely within the accessory drive system. The bearing bore inside diameter measures 0.67 inches (17 mm), ensuring compatibility with the corresponding shaft and mounting hardware. The assembly includes two mounting holes for secure attachment, maintaining alignment and reducing belt slippage.

DriveAlign Premium OE Automatic Belt Tensioner Product Line

The DriveAlign Premium OE Automatic Belt Tensioner line by Gates focuses on delivering original equipment (OE) exact replacement parts. This product line emphasizes precise fitment and reliable performance, matching the specifications of factory-installed components. Part number 38156 is part of this line, ensuring it meets the stringent standards required for Chevrolet and Suzuki vehicles such as the Esteem, Sidekick, SX4, Tracker, and Vitara.

Applications and Common Issues Addressed

• Maintains proper tension on V-ribbed accessory drive belts
• Prevents belt slippage and premature wear
• Reduces noise caused by loose or misaligned belts
• Eliminates vibration and pulley misalignment issues
• Restores smooth operation of accessory components like alternators and power steering pumps

Installation Notes and Tips

• Ensure compatibility with Chevrolet Esteem, Sidekick, SX4, Tracker, and Suzuki Vitara models before installation
• Inspect belt condition and replace if worn or damaged during tensioner replacement
• Use proper torque specifications for mounting bolts to avoid damage
• Verify pulley alignment and belt routing after installation
• Consult vehicle service manual for detailed installation procedures

Quality Assurance and Warranty

The Gates DriveAlign Premium OE Automatic Belt Tensioner (Part Number 38156) is manufactured to meet OE standards, providing reliable performance and durability. Gates products typically come with a limited warranty covering defects in materials and workmanship. For specific warranty details, refer to the product documentation or contact the manufacturer directly.
