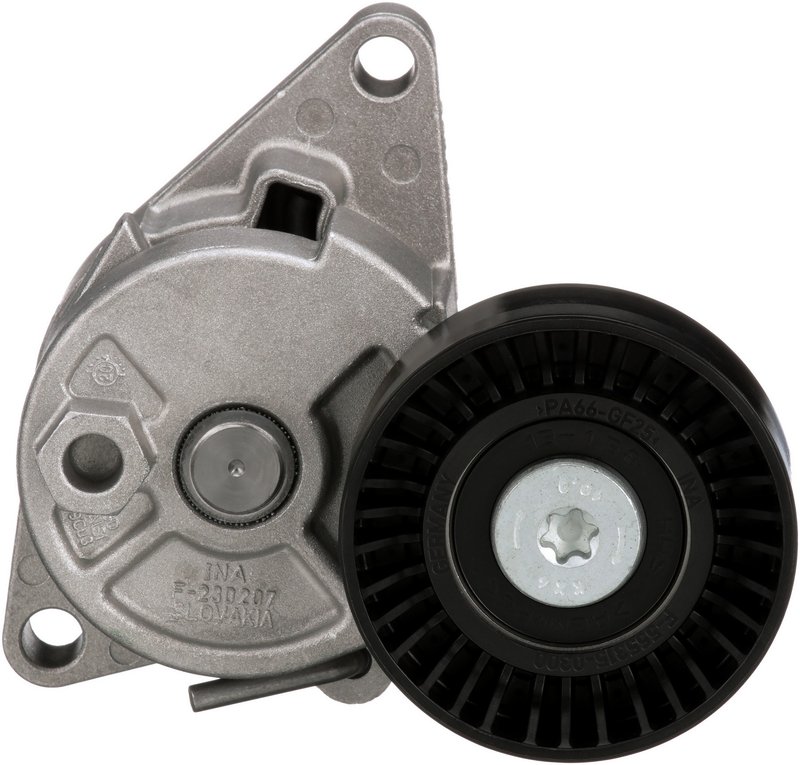

Gates 38224 Accessory Drive Belt Tensioner Assembly - Air Conditioning

Overview of Gates DriveAlign Premium OE Automatic Belt Tensioner

The Gates DriveAlign Premium OE Automatic Belt Tensioner (Part Number 38224) is engineered for precise belt tension control in select BMW models. Designed with thermoplastic material and a smooth backside contact surface, this tensioner assembly ensures reliable performance for V-ribbed accessory drive belts.

• Thermoplastic construction for durability and lightweight design
• Single pulley design without flange, 2 mounting holes for secure fitment
• Compatible with V-ribbed belt systems
• Outside diameter of 70 mm (2.76 in) and width of 26 mm (1.02 in)
• Bearing bore inside diameter of 17 mm (.67 in) for precise alignment
• OE exact comparison rating for direct replacement

Detailed Product Description

This accessory drive belt tensioner assembly from Gates is specifically designed to maintain optimal tension on V-ribbed belts in various BMW vehicles, including the 3 Series models such as 323Ci, 325i, 328i, 330i, and performance models like the M3, as well as the 5 Series and SUVs like the X5. The thermoplastic material offers resistance to wear and heat, while the smooth backside contact surface minimizes belt wear. The tensioner features a single pulley without flange, measuring 70 mm in outside diameter and 26 mm in width, with two mounting holes to ensure a secure and precise installation. The bearing bore inside diameter of 17 mm (.67 in) supports smooth rotation and long service life.

About the DriveAlign Premium OE Automatic Belt Tensioner Line

The DriveAlign Premium OE Automatic Belt Tensioner line by Gates focuses on delivering original equipment (OE) quality and fitment. This product line is designed to meet or exceed factory specifications, providing a direct replacement solution for accessory drive belt tensioners. The 38224 part number is an OE exact match, ensuring compatibility and reliable performance for BMW vehicles requiring precise belt tension control.

Common Applications and Issues Addressed

• Maintains proper tension on V-ribbed accessory belts to prevent slippage
• Reduces belt noise caused by improper tension
• Prevents premature belt wear and extends belt life
• Eliminates vibration and misalignment in the accessory drive system
• Restores proper function after tensioner failure or wear

Installation Notes and Tips

• Ensure compatibility with your BMW model before installation (compatible with 3 Series, 5 Series, M3, X5, Z3, Z4 models)
• Use proper tools to remove the old tensioner and install the new assembly securely using the two mounting holes
• Inspect the V-ribbed belt for wear and replace if necessary during installation
• Verify belt alignment and tension after installation to avoid premature wear

Quality Assurance and Warranty

The Gates DriveAlign Premium OE Automatic Belt Tensioner (Part Number 38224) is manufactured to meet OE standards, ensuring reliable fit and function. Gates provides quality assurance backed by rigorous testing to maintain durability and performance. Warranty details should be confirmed with the point of purchase or manufacturer documentation.
