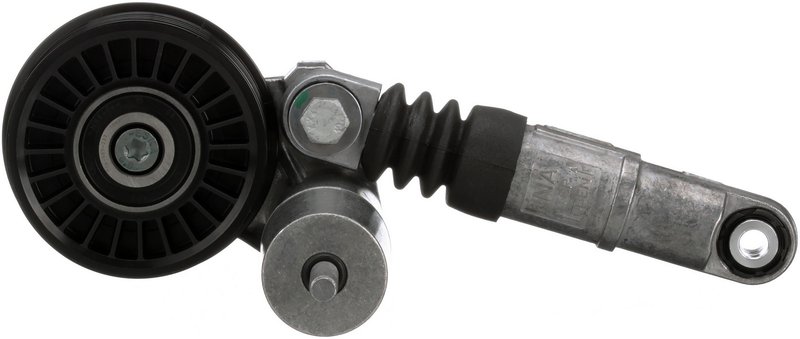

Gates 38326 Accessory Drive Belt Tensioner Assembly - Alternator and Power Steering
| Brand | Gates 38326 |
|---|---|
| Position | Alternator and Power Steering |
| Bearing Bore Inside Diameter | .31 |
| Bearing Bore Inside Diameter | 8 |
| Bearing Bore Inside Diameter 1 (in) | .31 |
| Bearing Bore Inside Diameter 1 (mm) | 8 |
| Belt Type | V-Ribbed |
| Belt Type | V-Ribbed |
| Contact Surface | V-Ribbed Grooved |
| Contents | Tensioner Assy., Bolt, Hydraulic Damper |
| Groove Quantity | 5 |
| Material | Thermoplastic |
| Mounting Hole Quantity | 2 |
| Number of Grooves | 5 |
| OE Comparison Rating | OE Exact |
| Outside Diameter | 2.95 |
| Outside Diameter | 75 |
| Outside Diameter (in) | 2.95 |
| Outside Diameter (mm) | 75 |
| Pulley 1 Flanged | Yes |
| Pulley 1 Flanged | Yes |
| Pulley Quantity | 1 |
| Width | .83 |
| Width | 21 |
| Width (in) | .83 |
| Width (mm) | 21 |
| Product line | DriveAlign Premium OE Automatic Belt Tensioner |
| Fits | Volkswagen · 2 vehicles |
OE exact replacement. Built to OE fit, form, and function with rigid tolerances.
Thermoplastic construction. Delivers durable performance in a premium belt tensioner assembly.
V-ribbed pulley. Five grooves and a flanged design keep the belt tracking smoothly.
Cross-references Continental 49399, Gates 38326 and Litens 999183A for the same application. See all 10.
OE Automatic Belt Tensioner for Passat
Gates DriveAlign Premium OE Automatic Belt Tensioner 38326 is built for the accessory drive belt system on select Volkswagen applications. It is an OE Exact replacement for 2004-2005 Volkswagen Passat models with alternator and power steering drive routing, helping restore proper belt tension and pulley control.
The DriveAlign Premium OE Automatic Belt Tensioner line reflects Gates’ OE system design background, with manufacturing held to rigid tolerances for fit, form, and function. This Gates 38326 tensioner uses a thermoplastic body, a 5-groove V-ribbed pulley, and a flanged pulley design to match the original-style accessory drive setup.
Key Features
- OE Exact replacement automatic belt tensioner assembly
- Fits 2004-2005 Volkswagen Passat, alternator and power steering
- Thermoplastic construction for the tensioner body
- 5-groove V-ribbed pulley with flanged design
- Includes tensioner assembly, bolt, and hydraulic damper
- 2 mounting holes for OE-style installation
- Gates part number 38326 for direct identification
Product Details
Gates 38326 is an accessory drive belt tensioner assembly engineered for OE-style replacement on the Volkswagen Passat. The pulley measures 2.95 in. (75 mm) outside diameter and 0.83 in. (21 mm) wide, with an 8 mm bearing bore inside diameter. The V-ribbed contact surface and 5-groove layout support proper belt tracking in the accessory drive belt system.
This part cross-references Continental 49399 for the same application. If you are searching for a 2004 Volkswagen Passat alternator and power steering belt tensioner or a 2005 Volkswagen Passat accessory drive belt tensioner, Gates 38326 is the direct OE-style reference to compare.
Common Problems This Part Addresses
- Loss of proper belt tension in the accessory drive system
- Belt noise caused by a worn tensioner pulley or damper
- Uneven belt tracking on the alternator and power steering drive
- Visible wear in the tensioner assembly or pulley bearing
- Drive belt vibration during engine operation
Installation Notes
Verify the vehicle’s accessory drive routing before installation and confirm the OE comparison rating matches the original part. Inspect the belt, pulley alignment, and adjacent drive components at the same time, since a worn belt or misaligned accessory can shorten tensioner life. Use the correct mounting points and torque specifications for the 2004-2005 Volkswagen Passat application.
Quality Assurance
Gates manufactures DriveAlign Premium OE Automatic Belt Tensioners to OE-level specifications and rigid tolerances to support original-style fit and function. Gates 38326 is built as an OE Exact replacement for the listed Volkswagen Passat applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2005 | Volkswagen | Passat | 2.0L | L4 | DIESEL | Alternator and Power Steering | DriveAlign Premium OE Automatic Belt Tensioner |
| 2004 | Volkswagen | Passat | 2.0L | L4 | DIESEL | Alternator and Power Steering | DriveAlign Premium OE Automatic Belt Tensioner |
