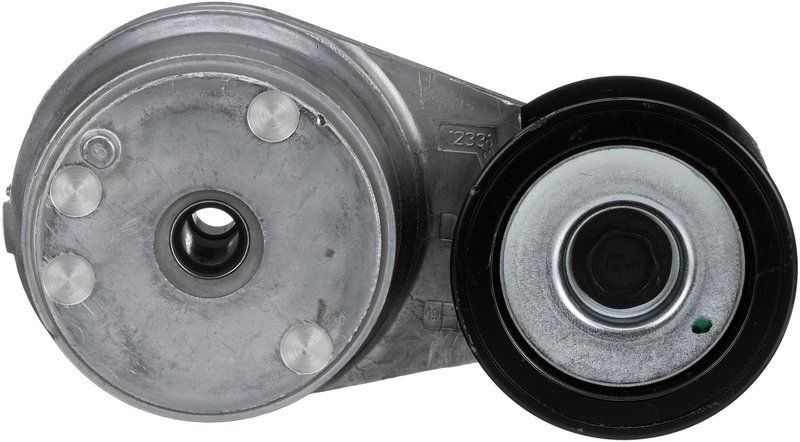

Gates 38504 Accessory Drive Belt Tensioner Assembly

Overview of Gates DriveAlign Premium OE Automatic Belt Tensioner 38504

The Gates DriveAlign Premium OE Automatic Belt Tensioner 38504 is engineered to maintain optimal tension on V-ribbed accessory drive belts. Designed with durable steel construction and precise dimensions, this tensioner assembly supports reliable belt operation in various vehicle applications.

• Constructed from high-strength steel for durability
• Single pulley design with a smooth backside contact surface
• Compatible with V-ribbed belt systems
• Mounting hole quantity: 1 for secure installation
• Pulley outside diameter: 75 mm (2.95 in)
• Pulley width: 40 mm (1.57 in)
• Bearing bore inside diameter: 30 mm (1.18 in)

Detailed Product Description

This accessory drive belt tensioner assembly from Gates features a robust steel body and a single pulley without flanges, designed specifically for V-ribbed belt systems. The pulley measures 75 mm in outside diameter and 40 mm in width, providing the correct fit and tension for compatible vehicles. The bearing bore inside diameter is 30 mm, ensuring smooth rotation and consistent belt tension. The smooth backside contact surface reduces belt wear and noise during operation. The assembly includes the tensioner and bolt for mounting, facilitating straightforward replacement.

The DriveAlign Premium OE Automatic Belt Tensioner product line focuses on delivering original equipment quality and fitment, ensuring that this tensioner matches or exceeds factory specifications. This line is engineered to provide precise belt alignment and tension control, which helps extend belt life and maintain accessory drive system performance.

Common Applications and Issues Addressed

• Maintains proper tension on V-ribbed accessory drive belts
• Prevents belt slippage and squealing noises
• Reduces premature belt wear and extends service intervals
• Corrects misalignment issues in accessory drive systems
• Supports smooth operation of alternators, power steering pumps, and air conditioning compressors

Installation Notes and Tips

• Ensure the mounting hole aligns correctly with the vehicle’s bracket for secure fitment
• Verify belt type compatibility—this tensioner is designed for V-ribbed belts only
• Inspect the belt and other drive components during installation for wear or damage
• Use proper torque specifications when tightening the mounting bolt to avoid damage

Quality Assurance and Warranty

Gates DriveAlign Premium OE Automatic Belt Tensioner assemblies are manufactured to meet stringent quality standards, ensuring reliable performance and durability. The part number 38504 is backed by Gates’ commitment to OE-level quality. Please consult Gates or your parts provider for specific warranty details related to this tensioner assembly.
