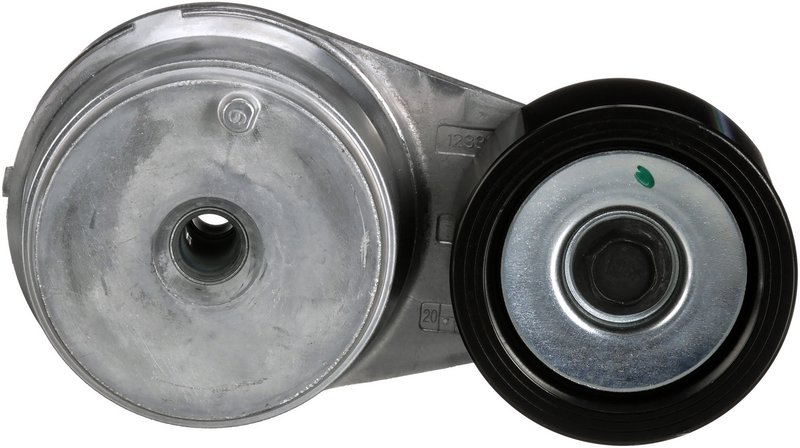

Gates 38505 Accessory Drive Belt Tensioner Assembly

Overview of Gates DriveAlign Premium OE Automatic Belt Tensioner 38505

The Gates DriveAlign Premium OE Automatic Belt Tensioner 38505 is engineered to maintain optimal tension on V-ribbed accessory drive belts. Designed with durable steel construction and precise dimensions, this tensioner assembly supports reliable belt operation in various automotive applications.

• Constructed from high-strength steel for durability
• Single pulley design with a smooth backside contact surface
• Compatible with V-ribbed belt systems
• Mounting hole quantity: 1 for secure installation
• Pulley outside diameter: 75 mm (2.95 in)
• Pulley width: 40 mm (1.57 in)
• Bearing bore inside diameter: 30 mm (1.18 in)
• Includes tensioner assembly and bolt

Detailed Product Description

This accessory drive belt tensioner assembly from Gates features a robust steel body designed to withstand the stresses of continuous engine operation. The single pulley, which is not flanged, has a smooth backside contact surface optimized for V-ribbed belts, ensuring consistent belt tracking and tension. The pulley measures 75 mm in outside diameter and 40 mm in width, with a bearing bore inside diameter of 30 mm, providing precise fitment and smooth rotation. The tensioner includes one mounting hole for straightforward installation and secure attachment to the engine assembly.

The DriveAlign Premium OE Automatic Belt Tensioner product line focuses on delivering original equipment quality and fitment, making it suitable for replacement in vehicles requiring OE specifications. This line emphasizes durability and performance to maintain proper accessory belt tension, which is critical for the operation of alternators, power steering pumps, and air conditioning compressors.

Common Applications and Issues Addressed

• Maintains proper tension on V-ribbed accessory drive belts
• Prevents belt slippage and premature wear
• Reduces noise caused by loose or misaligned belts
• Supports smooth operation of engine accessories
• Helps avoid engine overheating due to belt failure

Installation Notes and Tips

When installing the Gates DriveAlign Premium OE Automatic Belt Tensioner 38505, ensure the mounting surface is clean and free of debris. Verify the pulley alignment with the belt path to prevent premature belt wear. Use the included bolt to secure the tensioner firmly, and check belt tension after installation to confirm proper operation. Refer to the vehicle’s service manual for torque specifications and any model-specific installation procedures.

Quality Assurance and Warranty

Gates manufactures the DriveAlign Premium OE Automatic Belt Tensioner 38505 to meet or exceed original equipment standards. The steel construction and precision engineering contribute to long service life and reliable performance. While specific warranty details are not provided here, Gates typically offers coverage against defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
