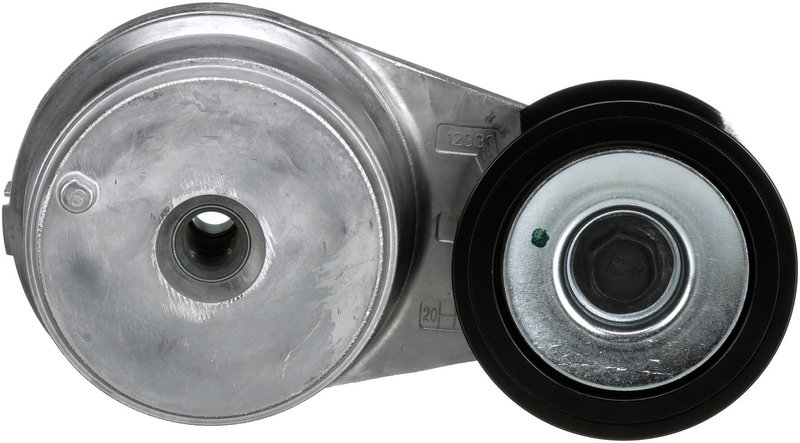

Gates 38509 Accessory Drive Belt Tensioner Assembly - Alternator, Fan and Alternator or Hub and Alternator

Overview of Gates DriveAlign Premium OE Automatic Belt Tensioner 38509

The Gates DriveAlign Premium OE Automatic Belt Tensioner 38509 is engineered to maintain optimal tension on V-ribbed accessory drive belts. Designed with durable steel construction and precise dimensions, this tensioner assembly supports reliable belt operation in various automotive applications, including popular makes and models requiring a 30mm bearing bore diameter.

• Constructed from high-strength steel for durability
• Designed for V-ribbed belt systems
• Single pulley with a smooth backside contact surface
• Mounting hole quantity: 1 for secure installation
• Dimensions: 75mm (2.95 in) outside diameter, 32.5mm (1.28 in) width
• Bearing bore inside diameter: 30mm (1.18 in)

Detailed Product Description

This accessory drive belt tensioner assembly from Gates features a steel body designed to withstand the stresses of continuous belt tensioning. The single pulley, which is not flanged, has a smooth backside contact surface to reduce belt wear and ensure consistent belt tracking. The tensioner’s bearing bore inside diameter measures 30mm (1.18 inches), matching common specifications for many vehicle applications. With a mounting hole quantity of one, the installation process is straightforward and compatible with specific vehicle models requiring this configuration.

The Gates DriveAlign Premium OE Automatic Belt Tensioner line focuses on delivering original equipment quality and fitment. This product line is engineered to meet or exceed OEM standards, providing a reliable replacement part that integrates seamlessly with the vehicle’s accessory drive system. The 38509 part number represents a precise fit for vehicles that require a tensioner with these exact dimensions and material specifications.

Common Applications and Issues Addressed

• Maintains proper tension on V-ribbed accessory drive belts
• Prevents belt slippage and premature wear
• Reduces noise caused by loose or worn tensioners
• Helps avoid accessory drive system failures
• Supports consistent operation of alternators, power steering pumps, and air conditioning compressors

Installation Notes and Tips

• Ensure compatibility with your vehicle’s make and model before installation
• Verify the bearing bore diameter and mounting hole configuration match your application
• Use proper torque specifications when securing the tensioner assembly
• Inspect the accessory drive belt for wear and replace if necessary during installation
• Follow manufacturer guidelines for belt routing and tensioner alignment

Quality Assurance and Warranty

The Gates DriveAlign Premium OE Automatic Belt Tensioner 38509 is manufactured to meet stringent quality standards, ensuring durability and reliable performance. Gates provides a limited warranty on this part, covering defects in materials and workmanship under normal use. For specific warranty details, refer to Gates’ official documentation or contact authorized distributors.
