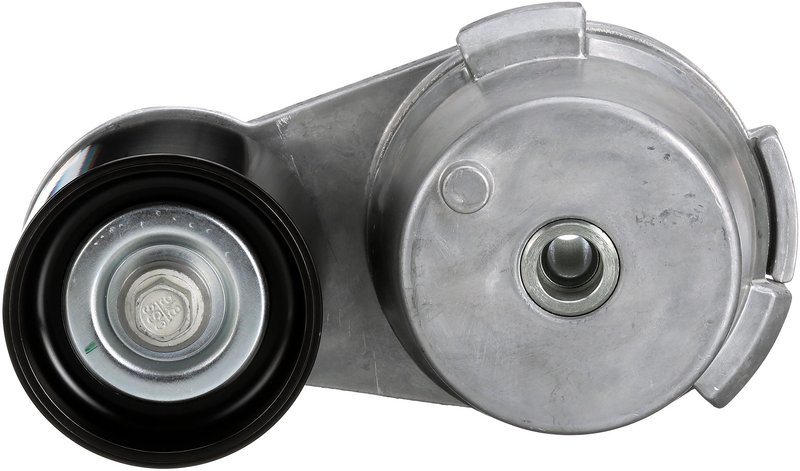

Gates 38609 Accessory Drive Belt Tensioner Assembly

Overview of Gates DriveAlign Premium OE Automatic Belt Tensioner 38609

The Gates DriveAlign Premium OE Automatic Belt Tensioner 38609 is engineered to maintain optimal tension on V-ribbed accessory drive belts. Designed with durable steel construction and precise dimensions, this tensioner assembly supports reliable belt operation in various vehicle applications, including popular makes and models requiring a 17mm bearing bore diameter.

• Constructed from high-quality steel for durability and strength
• Single pulley design with a smooth backside contact surface
• Compatible with V-ribbed belt systems
• Mounting hole quantity: 1 for straightforward installation
• Dimensions: 2.91 inches (74 mm) outside diameter, 2.24 inches (57 mm) width
• Bearing bore inside diameter: 0.67 inches (17 mm)
• Non-flanged pulley for specific belt routing requirements

Detailed Product Description

The Gates DriveAlign Premium OE Automatic Belt Tensioner 38609 is a precision-engineered accessory drive belt tensioner assembly designed to maintain consistent tension on V-ribbed belts. Its steel construction ensures long-lasting performance under demanding engine conditions. The tensioner features a single pulley with a smooth backside contact surface, optimized for V-ribbed belt compatibility. The pulley measures 2.91 inches (74 mm) in outside diameter and 2.24 inches (57 mm) in width, with a bearing bore inside diameter of 0.67 inches (17 mm), providing a precise fit for compatible vehicles. The assembly includes one mounting hole, facilitating secure attachment to the engine assembly.

The DriveAlign Premium OE Automatic Belt Tensioner product line by Gates focuses on delivering original equipment (OE) quality and fitment. This line is designed to meet or exceed OEM specifications, ensuring reliable belt tension and alignment for accessory drive systems. The 38609 part number is part of this line, offering a balance of durability and performance for vehicles requiring this specific tensioner configuration.

Common Applications and Issues Addressed

• Maintains proper tension on V-ribbed accessory drive belts to prevent slippage
• Reduces belt noise caused by improper tension or misalignment
• Prevents premature belt wear and extends belt life
• Addresses belt tensioner pulley wear or failure symptoms
• Helps resolve engine accessory drive system malfunctions related to belt tension

Installation Notes and Tips

When installing the Gates DriveAlign Premium OE Automatic Belt Tensioner 38609, ensure the mounting surface is clean and free of debris. Verify the bearing bore diameter and pulley dimensions match the vehicle’s specifications. Use appropriate tools to apply correct torque to the single mounting hole fastener. Confirm proper belt routing and tension after installation to avoid premature wear or noise issues.

Quality Assurance and Warranty

Gates manufactures the DriveAlign Premium OE Automatic Belt Tensioner 38609 to meet stringent quality standards, ensuring reliable performance and durability. This part is engineered to match original equipment specifications for fit and function. Warranty coverage details should be confirmed with the product documentation or supplier.
