Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

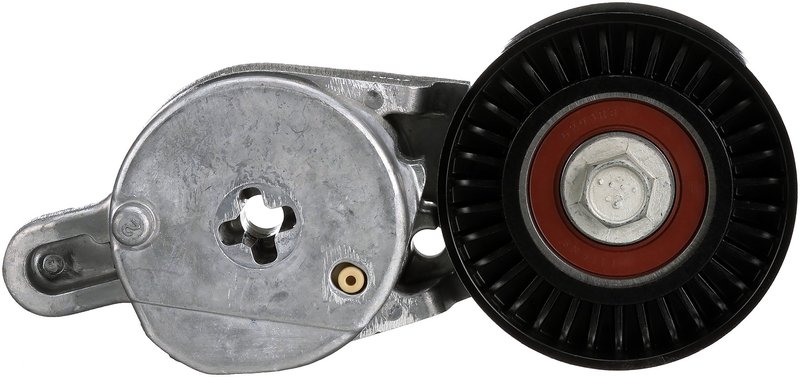

Gates 39096 Accessory Drive Belt Tensioner Assembly - Water Pump or Alternator and Air Conditioning
| Brand | Gates 39096 |
|---|---|
| Position | Water Pump, Alternator and Air Conditioning |
| Material | Thermoplastic |
| Pulley 1 Flanged | No |
| Bearing Bore Inside Diameter | .67 |
| Bearing Bore Inside Diameter | 17 |
| Width | .94 |
| Width | 24 |
| Outside Diameter | 2.76 |
| Outside Diameter | 70 |
| Mounting Hole Quantity | 1 |
| Belt Type | V-ribbed |
| Pulley Quantity | 1 |
| Bearing Bore Inside Diameter 1 (in) | .67 |
| Bearing Bore Inside Diameter 1 (mm) | 17 |
| Belt Type | V-ribbed |
| Contact Surface | Smooth/backside |
| Contents | Tensioner assy. |
| OE Comparison Rating | Oe exact |
| Outside Diameter (in) | 2.76 |
| Outside Diameter (mm) | 70 |
| Pulley 1 Flanged | No |
| Width (in) | .94 |
| Width (mm) | 24 |
| Product line | DriveAlign Premium OE Automatic Belt Tensioner |
| Fits | Toyota · 2 vehicles |
OE exact replacement. Manufactured to rigid tolerances for OE fit, form, and function.
Thermoplastic construction. Delivers durable, lightweight performance in the belt drive system.
Automatic belt tensioner. Maintains proper belt tension for smooth accessory drive operation.
Cross-references Continental 49438, Dayco 89660 and Febi-Bilstein 39096 for the same application. See all 7.
OE Belt Tensioner for Toyota Camry
The Gates DriveAlign Premium OE Automatic Belt Tensioner, part number 39096, is built for accessory drive systems that need consistent belt control and OE-style fit. It is a direct application for 2010-2011 Toyota Camry models serving the water pump, alternator, and air conditioning drive system.
Gates applies its OE system design experience to this DriveAlign Premium OE Automatic Belt Tensioner line, focusing on rigid manufacturing tolerances, correct fit, and dependable belt tracking for service replacement work.
Key Features
- OE Exact comparison rating for application-specific replacement
- Thermoplastic tensioner body
- V-ribbed belt type application
- Smooth/backside pulley contact surface
- Single-pulley design with one mounting hole
- Pulley dimensions: 2.76 in. outside diameter, 0.94 in. width
- Bearing bore inside diameter: 0.67 in. (17 mm)
Detailed Description
Gates 39096 is an accessory drive belt tensioner assembly engineered for OE fit, form, and function. The DriveAlign Premium OE Automatic Belt Tensioner line is manufactured to tight specifications so the tensioner matches the original system geometry and supports proper belt tension in the Toyota Camry accessory drive layout. This part cross-references Continental 49438 for the same application.
Fits 2010-2011 Toyota Camry, Water Pump, Alternator and Air Conditioning. Use Gates 39096 when replacing a worn or noisy automatic belt tensioner in the Toyota Camry accessory drive belt system.
Common Problems This Part Can Address
- Belt squeal from inconsistent tension
- Visible belt tracking issues on the accessory drive
- Noise from a worn tensioner pulley bearing
- Reduced belt control in the water pump, alternator, and A/C drive path
- Service replacement for a damaged or fatigued tensioner assembly
Installation Notes and Tips
Verify the belt routing and compare the original tensioner geometry before installation. Inspect the V-ribbed belt, pulley surface, and adjacent accessory components for wear while the system is apart. Confirm the mounting point and pulley alignment match the original Toyota Camry application before returning the vehicle to service.
Quality Assurance
Gates is a global OE system designer, and the DriveAlign Premium OE Automatic Belt Tensioner line is produced to rigid tolerances and specifications to support OE fit, form, and function. Part number 39096 is built as an OE-style replacement for the listed Toyota Camry application.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Toyota | Camry | 2.5L | L4 | GAS | Water Pump, Alternator and Air Conditioning | DriveAlign Premium OE Automatic Belt Tensioner |
| 2010 | Toyota | Camry | 2.5L | L4 | GAS | Water Pump, Alternator and Air Conditioning | DriveAlign Premium OE Automatic Belt Tensioner |
