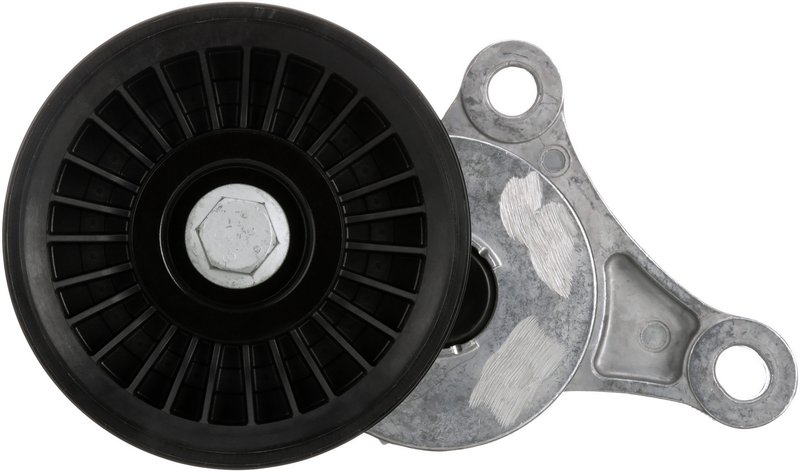

Gates 39334 Accessory Drive Belt Tensioner Assembly - Alternator or Power Steering and Water Pump

Overview of Gates DriveAlign Premium OE Automatic Belt Tensioner 39334

The Gates DriveAlign Premium OE Automatic Belt Tensioner 39334 is engineered for precise belt tension control in accessory drive systems. Designed specifically for Cadillac and Chevrolet vehicles, including the Camaro and CTS models, this tensioner assembly ensures optimal performance and durability.

• Thermoplastic construction for durability and heat resistance
• Single flanged pulley with 6 V-ribbed grooves
• Pulley outside diameter: 3.74 inches (95 mm)
• Width: 1.18 inches (30 mm)
• Bearing bore inside diameter: 0.67 inches (17 mm)
• Two mounting holes for secure installation
• Compatible with V-ribbed accessory drive belts
• OE exact fit and performance rating

Detailed Product Description

This accessory drive belt tensioner assembly from Gates features a thermoplastic body designed to withstand the demanding conditions under the hood. The pulley is flanged and includes six grooves to accommodate V-ribbed belts, providing consistent belt alignment and tension. With an outside diameter of 3.74 inches and a width of 1.18 inches, the pulley is engineered to match original equipment specifications. The bearing bore inside diameter measures 0.67 inches, ensuring smooth rotation and long service life. The assembly includes two mounting holes for a secure fit on compatible Cadillac and Chevrolet models.

About the DriveAlign Premium OE Automatic Belt Tensioner Line

The DriveAlign Premium OE Automatic Belt Tensioner product line by Gates focuses on delivering original equipment quality and fitment. This line is designed to meet or exceed OEM standards, providing reliable belt tensioning for accessory drive systems. The 39334 tensioner assembly is part of this line, offering precise tension control and durability tailored for specific vehicle applications such as the Cadillac CTS and Chevrolet Camaro.

Common Applications and Issues Addressed

• Maintains proper tension on V-ribbed accessory drive belts
• Prevents belt slippage and noise
• Reduces premature belt wear and extends belt life
• Eliminates belt misalignment caused by worn tensioners
• Supports smooth operation of engine accessories like alternators and power steering pumps

Installation Notes and Tips

Ensure the vehicle is off and the engine is cool before beginning installation. Verify compatibility with your Cadillac or Chevrolet model, specifically Camaro or CTS. Use appropriate tools to remove the old tensioner and install the Gates DriveAlign Premium OE Automatic Belt Tensioner 39334 securely using the two mounting holes. Confirm the belt is properly seated in the six V-ribbed grooves of the pulley. After installation, rotate the engine manually to check for proper belt tracking and tension.

Quality Assurance and Warranty

The Gates DriveAlign Premium OE Automatic Belt Tensioner 39334 is manufactured to meet original equipment standards, ensuring reliable performance and durability. Gates provides a limited warranty on this part, covering defects in materials and workmanship under normal use. Refer to Gates’ official warranty documentation for specific terms and conditions.
