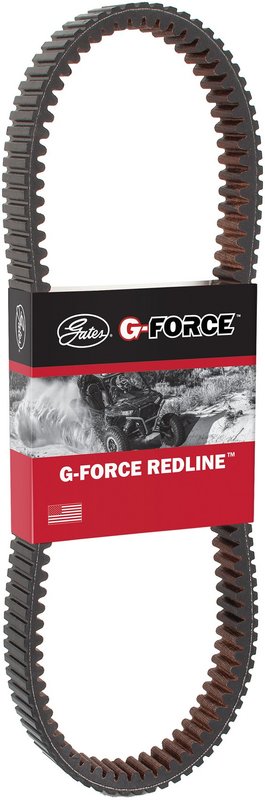

Gates 41R4313 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Gates G-Force RedLine CVT Belt Overview

The Gates G-Force RedLine CVT Belt is a high-performance automatic continuously variable transmission belt built for powersport and off-road use. Part number 41R4313 is engineered with aramid cord reinforcement, EPDM belt material, and a double-notched construction to support stronger acceleration and more consistent ratio control under demanding conditions.

Compatible With select powersport and off-road CVT applications, this belt is part of the Gates G-Force RedLine line, which focuses on improved drivability in severe terrain and high-load operation. If you are searching for a Gates 41R4313 CVT belt for a performance UTV or similar application, this part is built for OE-improved service.

Key Features

• Part number 41R4313 Gates CVT belt for automatic continuously variable transmissions
• G-Force RedLine series for powersport specialty and high-performance use
• Double-notched construction for flexibility and heat management
• Aramid cord material for added tensile strength
• EPDM belt material with fabric bottom and notched design
• Black finish, RVS-R section, 25-degree angle
• OE Improved comparison rating for upgraded service characteristics
• Dimensions: 1.412 in top width, 1.339 in pitch width, 0.627 in thickness, 44.302 in outside circumference

Detailed Description

Gates 41R4313 is a CVT drive belt designed for automatic transmission systems used in powersport and off-road vehicles. The RedLine construction uses aramid reinforcement and a double-notched profile to help maintain belt stability while reducing speed-ratio and energy loss in demanding environments. With a 44.302-inch outside circumference and 1.412-inch top width, this belt is built to match specific CVT specifications rather than universal applications.

For buyers searching Gates 41R4313, 41R4313 CVT belt, or Gates G-Force RedLine CVT belt for UTV and off-road use, this part is intended for applications that require an OE-improved replacement with performance-focused materials. It is a practical choice when the original belt shows wear, glazing, or loss of grip in high-load operation.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Belt Helps Address

• Slipping or inconsistent CVT engagement under load
• Reduced acceleration caused by belt wear or glazing
• Loss of top-speed performance from stretched or fatigued belts
• Heat-related belt degradation in off-road driving
• Ratio instability during hard acceleration or sustained use

Installation Notes and Tips

Verify the belt dimensions, section designation, and CVT application before installation. Match the part number 41R4313 to the vehicle’s required belt specification, and inspect the clutch faces, pulleys, and belt path for wear or contamination before fitting the new belt. Proper alignment and correct break-in procedure help maintain belt life and consistent performance.

For fitment-based searches, use terms such as Gates 41R4313 CVT belt, G-Force RedLine belt, and performance CVT belt for powersport applications. If you are comparing replacement options for a UTV or off-road machine, confirm the required outside circumference and pitch width before ordering.

Quality Assurance

Gates is a long-established supplier of belt and power transmission components, and the G-Force RedLine line is positioned as an OE-improved CVT belt solution for demanding powersport use. Part number 41R4313 is built to Gates’ published specifications for material, construction, and dimensions.
