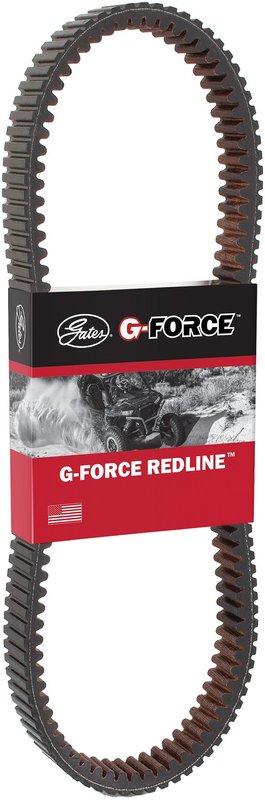

Gates 41R4514 Automatic Continuously Variable Transmission (CVT) Belt - Drive Belt

Gates G-Force RedLine CVT Belt 41R4514

The Gates G-Force RedLine CVT Belt 41R4514 is a high-performance automatic continuously variable transmission belt built for power sport specialty applications. It uses an aramid cord, EPDM belt material, and a double-notched construction to support stronger response and reduced energy loss in demanding off-road use.

Key Features

• Gates G-Force RedLine CVT Belt line for performance-focused CVT drivetrains
• Part number 41R4514 for direct catalog lookup and replacement matching
• Double-notched construction for improved flexibility and heat management
• Aramid cord material for added strength in high-load operation
• EPDM belt material with a black finish
• OE improved comparison rating for upgraded replacement performance
• Top width: 1.414 in. (36 mm)
• Thickness: 0.597 in. (15.2 mm)
• Outside circumference: 46.311 in. (1176 mm)
• Pitch length: 45.137 in. (1146.5 mm)
• Pitch width: 1.344 in. (34.1 mm)
• Cross section designation: RVS-R

Product Details

Gates G-Force RedLine CVT Belts are engineered as a new-generation CVT belt for power sport specialty use, with a focus on maintaining drive efficiency under demanding conditions. The 41R4514 belt combines a notched profile and aramid reinforcement to help reduce speed-ratio loss and energy loss, especially in extreme off-road environments where heat, load, and repeated acceleration cycles place added stress on the transmission. If you are searching for a Gates 41R4514 CVT belt for a performance ATV, UTV, or similar CVT-equipped machine, this part is built around those requirements.

This part cross-references XTX5044 for the same application.

What It Helps Address

• Slipping or inconsistent CVT belt engagement under load
• Reduced acceleration response from a worn belt
• Loss of top-end speed caused by belt wear or stretch
• Heat-related belt degradation in off-road driving
• Replacement needs for CVT systems requiring the 41R4514 size

Installation Notes and Tips

Verify belt dimensions, cross section, and OE comparison rating before installation. Match the 41R4514 to the vehicle’s CVT specification and inspect pulleys, clutch surfaces, and belt alignment at the same time. For buyers searching Gates G-Force RedLine CVT belt 41R4514 fitment or a CVT belt replacement for ATV and UTV applications, confirm the exact part number against the service manual before use.

Quality Assurance

Gates is known for drivetrain and power transmission components, and the G-Force RedLine line is positioned as an OE-improved CVT belt option for performance use. Part number 41R4514 is built to Gates dimensional and material specifications for consistent replacement selection.
