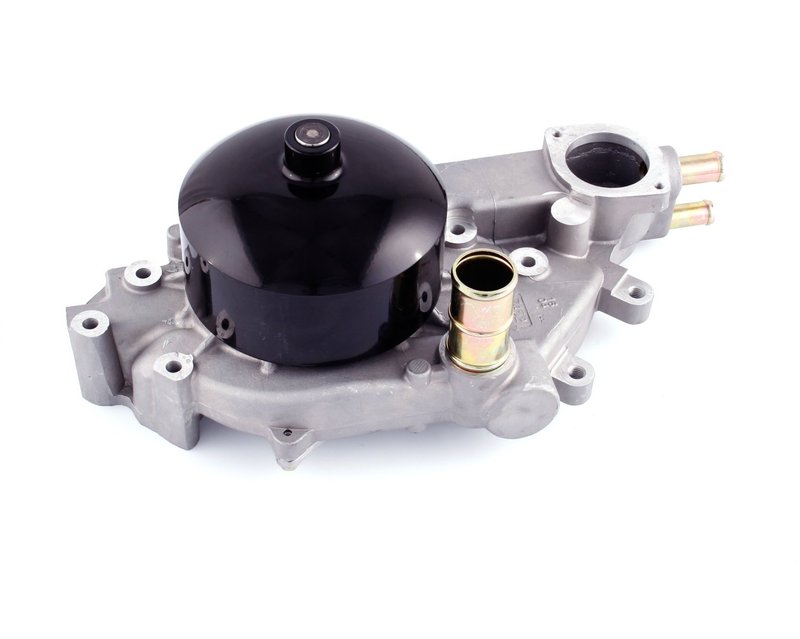

Gates 45002 Engine Water Pump

Gates Water Pump for GM V8 Applications

The Gates Water Pump (Standard) Part Number 45002 is an engine water pump built for select Chevrolet Corvette, Camaro, Pontiac Firebird, and Pontiac GTO applications. It is engineered with a cast aluminum housing, stamped steel impeller, and reverse rotation design for the listed vehicles.

Gates Water Pump line products are built for dependable cooling-system service, with premium alloy construction and testing focused on seal, bearing, and leakage performance. This Gates 45002 water pump is a direct-fit cooling component for 1997-2006 GM performance platforms that use an accessory belt drive.

Key Features

• Cast aluminum housing for durable cooling-system construction
• Stamped steel impeller
• Reverse rotation design
• Accessory belt driven, not timing belt driven
• Pulley included
• Four outlet configuration
• Contents include the water pump, 2 metal gaskets, and gasket
• No back housing, thermostat housing, or fan clutch included

Detailed Description

Gates 45002 is an engine water pump for GM performance vehicles that require a reverse-rotation, accessory-belt-driven design. The cast aluminum housing and stamped steel impeller support cooling-system durability, while the included pulley helps match the original service configuration on the listed applications. This part cross-references Airtex AW5081 and Dayco DP1317 for the same application.

Compatible With 1997-2004 Chevrolet Corvette, N/A; 1998-2002 Chevrolet Camaro, N/A; 1998-2002 Pontiac Firebird, N/A; and 2004-2006 Pontiac GTO, N/A. Use Gates 45002 when replacing a worn or leaking pump on these Chevrolet Corvette, Camaro, Firebird, and Pontiac GTO cooling systems.

What It Helps Address

• Coolant leakage from a worn pump seal or casting surface
• Noise from failing pump bearings
• Reduced coolant circulation through the engine
• Overheating caused by pump wear or impeller damage
• Service issues on reverse-rotation accessory-belt cooling systems

Installation Notes and Tips

Verify reverse-rotation belt routing before installation. Inspect the mating surfaces, replace damaged gaskets, and confirm pulley alignment during assembly. Flush the cooling system if contamination or corrosion is present, and check belt condition while the pump is removed.

Quality Assurance

Gates manufactures this water pump with premium alloy materials and performs functional testing of seals and bearings, along with leakage testing of the casting and assembled pump. The result is an OE-quality fit for the listed GM applications.
