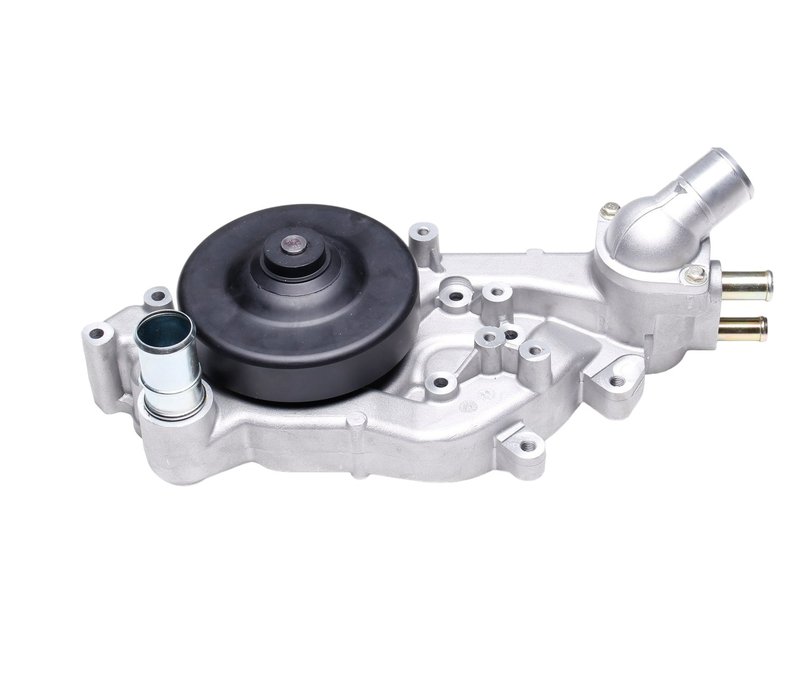

Gates 45004WT Engine Water Pump - Main

Gates Water Pump for GM V8 Cooling Service

The Gates 45004WT engine water pump is a standard replacement for select Chevrolet, Cadillac, and Pontiac applications that use accessory-belt drive. It combines a cast aluminum housing, stamped steel impeller, and an integrated thermostat and housing for a direct-fit cooling system service part.

Built as part of the Gates Water Pump (Standard) line, this unit is engineered for OE-quality fit and consistent operation. Gates tests seals and bearings for function and performs leakage checks on both the casting and the assembled pump before release.

• Cast aluminum housing for durable cooling-system service
• Stamped steel impeller with reverse rotation
• Accessory belt driven, not timing-belt driven
• Includes thermostat and housing with two metal gaskets
• Pulley included; fan clutch not included
• Four outlet configuration

Fitment Details

• Fits 2011-2017 Chevrolet Caprice, N/A
• Fits 2014-2017 Chevrolet SS, N/A
• Fits 2009-2015 Cadillac CTS, N/A
• Fits 2015 Chevrolet Camaro, Main
• Fits 2012-2014 Chevrolet Camaro, N/A
• Fits 2009-2013 Chevrolet Corvette, N/A
• Fits 2009 Pontiac G8, N/A, VIN 300000 & After; W/Left-Side Outlet
• Fits 2009 Pontiac G8, N/A, W/Left-Side Outlet

What This Water Pump Helps Address

• Coolant circulation loss from a worn or leaking pump
• Overheating caused by reduced coolant flow
• Noise from failing pump bearings or seals
• Thermostat housing service on the same repair
• Cooling-system leaks at the pump casting or gasket surfaces

Installation Notes

Verify reverse-rotation application, outlet layout, and accessory-belt drive before installation. Inspect the mating surfaces, replace worn gaskets as needed, and confirm the pulley alignment during reassembly. This part cross-references ACDelco 251-728 and Airtex AW6689 for the same application.

Quality Assurance

Gates manufactures this water pump with premium alloy materials and validates seals, bearings, and leakage performance before it leaves production. The result is a replacement pump built for dependable service on Chevrolet Camaro, Corvette, Caprice, SS, Cadillac CTS, and Pontiac G8 applications.
